VFD panel suppliers specializing in renewable energy applications
Renewable energy sites put demands on vfd control panels that a factory floor never sees. Solar pumps start and stop with cloud cover, wind turbines face grid dips, and small hydro runs at fixed head but variable load.
This guide explains what to demand from VFD panel suppliers who serve these applications, and how to verify the engineering behind the quote.
Key takeaways
- Wide voltage tolerance is non-negotiable: Renewable sites see voltage swing from weak grids and variable generation. The drive and the panel must ride through it.
- Harmonics are a panel-level problem: A solar or wind site with many drives needs the harmonic budget managed at the panel, not patched later.
- Application-specific engineering: Solar pumping, wind, and small hydro each need different drive sizing, protection, and control logic.
- MCC integration changes the design: The mcc breaker, the busbar, and the Form separation belong to the line-up, not to each drive bucket.
- Verify the supplier: Grid-friendly design claims need proof: test records, reference sites, and IEC 61439 verification documents.
Why renewable VFD applications are different
An industrial vfd panel board runs on a stable grid. A renewable site does not. The supply voltage moves, the load profile changes with the weather, and the site may run on a diesel hybrid or a microgrid.
A control panel panel built for a factory will trip, derate, or fail on such a site.
Five differences decide the engineering:
Five requirements for renewable sites
Not every supplier can deliver all five. The label "renewable energy" on a website is not engineering proof. The sections below map the applications, then show you how to verify a panel builder actually has the capability.
The four renewable applications
Most renewable VFD work falls into four categories. Each has a different drive duty and a different panel design:
| Application | Drive duty | Panel priorities |
|---|---|---|
| Solar water pumping | Variable speed, start-stop with irradiance | Wide voltage tolerance, MPPT-aware logic, outdoor IP rating |
| Wind turbine auxiliaries | Yaw and pitch drives, cooling fans | Ride-through, low-temperature rating, vibration-proof mounting |
| Small hydro | Governor-controlled speed, continuous duty | Overspeed protection, braking, robust thermal design |
| Hybrid and microgrid | Multiple drives sharing variable generation | Harmonic budget, synchronizing logic, shared busbar design |
The same vfd panel board can serve two of these applications with a parameter change. Serving all four well requires different protection, different logic, and different testing. Ask the supplier which of these four they have actually delivered, and for the site reference.

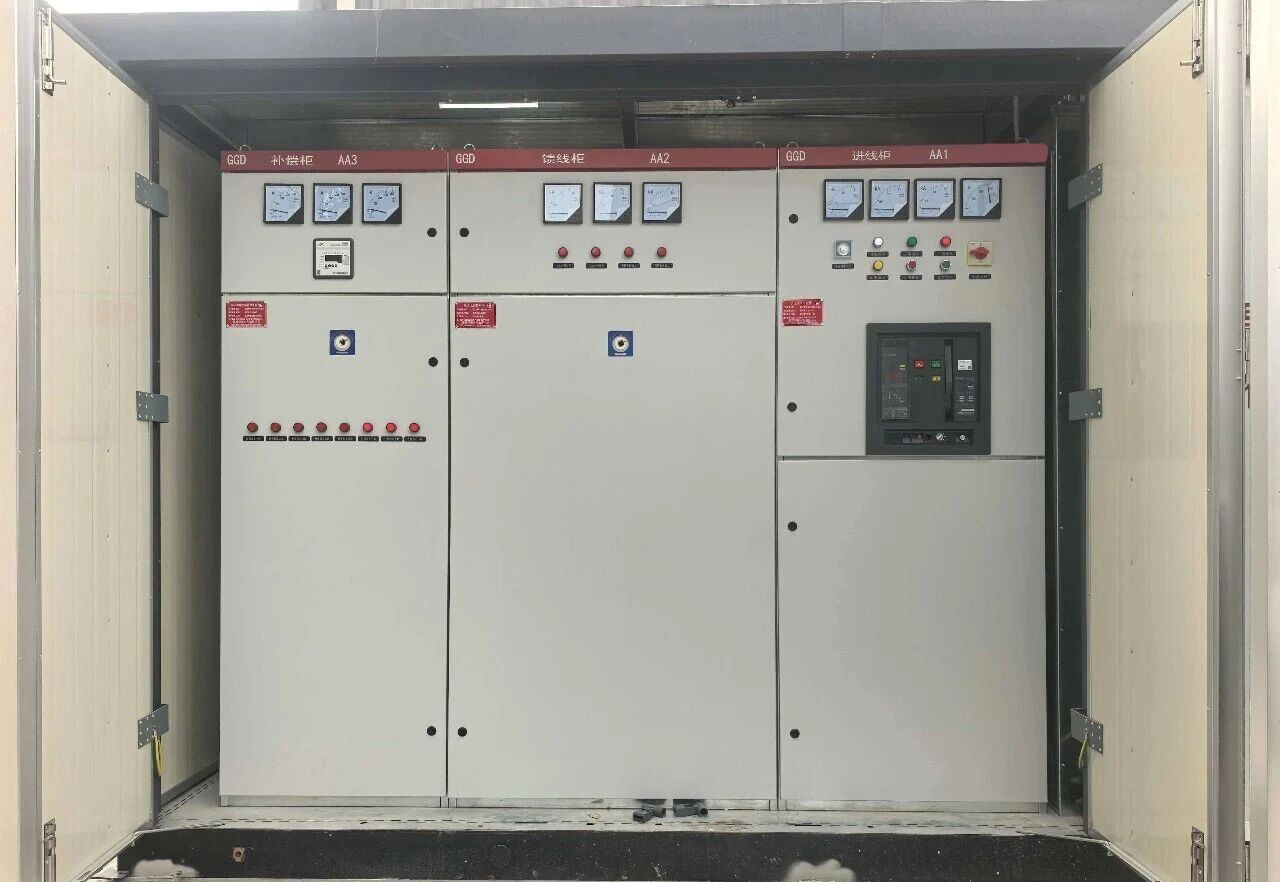

Solar water pumping panels
Solar pumping is the fastest growing renewable VFD application across Africa and the Middle East. The panel sits between the PV array and the pump motor, and it must track the MPPT output while protecting the drive and the pump.
What the panel must do
A solar pump panel starts when irradiance crosses the threshold, ramps the pump to the available power, and stops cleanly when clouds cut the input. The drive handles the ramp; the panel handles the protection.
- DC link protection for input variation from the array
- Dry-run protection so the pump never runs without water
- Manual and automatic modes for service and night operation
- Monitoring output so the operator sees pumping hours and energy

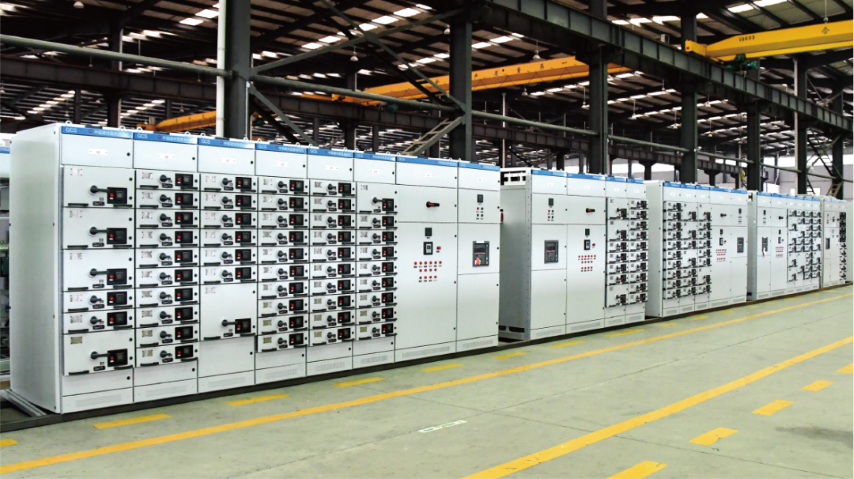

Wind and small hydro drive panels
Wind turbine auxiliaries and small hydro plants use drives in different ways. Wind sites need yaw and pitch drives that survive grid dips and low temperatures. Small hydro needs governor-grade speed control with overspeed protection.
Two different drive duties
Both applications share one rule: the panel must match the machine's duty, not a catalog default.
- Wind: ride-through logic, low-temperature heaters, vibration-proof mounting for tower cabinets
- Hydro: overspeed protection, braking resistor circuits, continuous-duty thermal design
- Both: grid-friendliness verified by test, not assumed
Suppliers who serve these applications carry reference sites and test data. Panel builders with renewable track records publish them; the rest publish brochures. The IRENA renewable energy cost analyses and World Bank energy access programs both document the operating conditions these vfd control panels face in developing markets.
What is an mcc and when it matters for renewable sites
What is an mcc? A motor control center is a line-up of starter and drive units sharing one busbar. The mcc panel houses many motor feeders in one enclosure, each protected by its own mcc breaker.
For a renewable site with multiple pumps or fans, the mcc line-up centralizes protection and saves floor space.
MCC versus standalone panels
Motor control centers suit sites with many motors. Standalone vfd panel board units suit single large drives or remote locations.
- MCC line-up: shared busbar, one mcc breaker per feeder, Form separation for live maintenance
- Standalone panel: self-contained protection, easier to ship and install remotely
- Hybrid sites: drives in buckets beside starter units, all under one line-up
For renewable projects, the mcc decision is usually made at the system design stage. The motor control center architecture page and the motor control center suppliers guide cover the selection, and the common MCC panel problems catalog shows what goes wrong when the line-up is underspecified.
How to qualify a renewable VFD panel supplier
Four steps separate a verified supplier from a marketing page:
Supplier qualification checklist
Use this checklist when you shortlist industrial control panel manufacturers for a renewable project:
Renewable VFD panel supplier checklist
A custom industrial control panel built for a renewable site is cheaper to verify at the factory than to repair in the field. The VFD control panel buyers guide covers the selection side of the same decision.
Frequently asked questions
What makes a VFD panel suitable for solar pumping?
Do wind turbine sites need special VFD panels?
What is an mcc in a renewable plant?
Should drives go in an mcc panel or standalone?
How do I verify a supplier's renewable energy experience?
What grid-friendly features should the panel have?
Can one panel builder serve all four renewable applications?
