Find companies offering VFD panel integration services for manufacturing automation

VFD panel integration services cover more than building a box around a drive. The right partner handles control panel fabrication, drive selection, PLC wiring, and commissioning as one job.

This guide maps the company types, the capability questions to ask, and the qualification steps that separate a real integrator from a sheet metal shop with a drill.

What VFD panel integration services actually cover

A complete integration service for manufacturing automation is a chain of five capabilities. If any link is weak, the panel ships but the production line stalls:

Integration Chain

Five capabilities in one partner

1Control panel fabricationEnclosure sizing, busbar engineering, and mechanical build to IEC 61439 construction rules.

2Drive selectionMatching the ac drive control panel rating to the motor, the load profile, and the supply quality.

3PLC integrationWiring the drive into the machine logic, with interlocks and fault handling programmed, not patched.

4TestingRoutine tests plus a full functional test of drive, PLC, and communication together.

5Commissioning supportOn-site startup, parameter tuning, and training for the plant maintenance team.

Companies that offer all five are rare. Most specialize in one or two links. The purpose of this guide is to help you find companies that cover the links your project actually needs, without paying for a full-service label that is really a fabrication shop.

The panel vfd market is crowded with both kinds, so the qualification steps below matter more than the marketing page.

The four types of integration companies

Four labels appear again and again in searches, and they are not interchangeable. This table shows what each type is best at:

The distinction matters because the labels overlap. An electrical panel builder may also program PLCs. A control panel fabrication house may refuse drive tuning. Ask each shortlisted company which of the five links they perform in-house and which they subcontract. A partner who subcontracts the programming should name the programmer.

Control panel fabrication is not integration

The most common qualification mistake is treating fabrication quality as proof of integration ability. A panel can be beautifully welded, perfectly wired, and dead on arrival for the automation because the drive was misapplied or the PLC logic never matched the machine sequence.

Fabrication vs Integration

Two different skill sets

Electrical panel fabrication is a manufacturing skill. Integration is an engineering skill. They rarely live in the same head, and they must both live in the same company.

• Fabrication proves itself in the shop: welding, bending, cutting, terminating, labeling
• Integration proves itself in the field: the machine runs, the drive responds, the PLC coordinates
• Ask for both a shop tour and a live machine reference before you commit

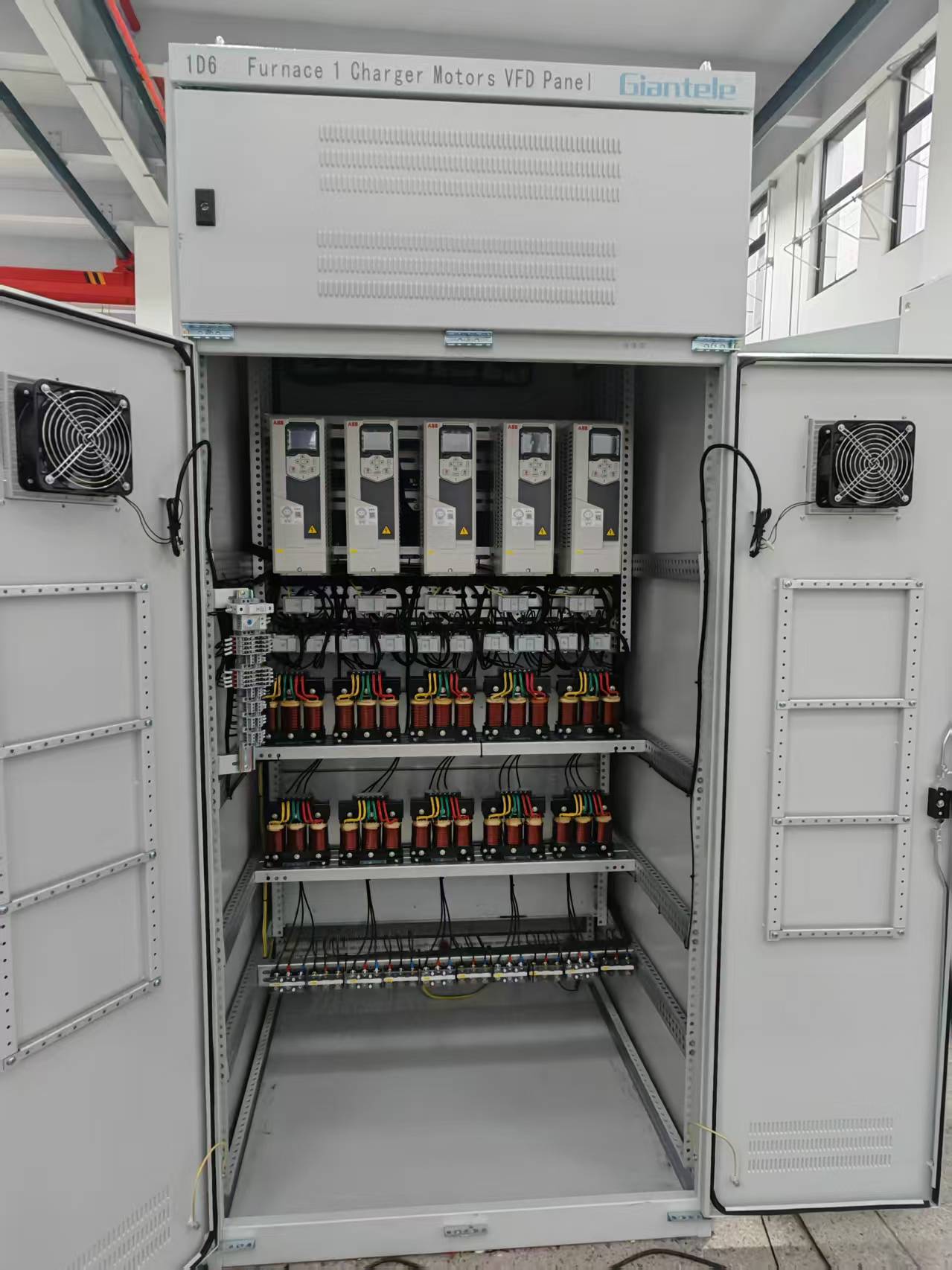

Panel Interior

Panel vfd integration inside the mcc room

Many manufacturing plants put drives inside a motor control center instead of standalone cabinets. The mcc room then houses one line-up that mixes starters and drive buckets.

This changes the integration work: busbar sharing, Form separation, and interlocking all belong to the line-up design, not to each drive. The VFD control panel buyers guide covers the selection side of the same decision.

MCC Room

MCC Integration

Drive buckets versus standalone panels

Inside the mcc room, each drive bucket shares the line-up busbar, the Form separation structure, and the arc rating of the whole assembly.

• Bucket integration needs the line-up builder, not a separate panel shop
• Standalone ac drive control panel is self-contained with its own incoming protection
• The mcc room also needs the ventilation and access design for drive heat

Buyers who need this arrangement should look for motor control center suppliers who integrate drives as buckets, not only as bolt-on boxes. The motor control center page explains the line-up architecture, and the motor control center manufacturers guide covers how to vet the builder.

How to qualify a plc control panel manufacturer

Qualification is a four-step process. Each step removes a class of bad partner:

Factory Proof

What the test bay should show

A qualified plc control panel manufacturer tests every assembly before it ships. The routine test record is the minimum; a witnessed FAT is the standard for automation panels.

• Dielectric and wiring checks on every unit
• Functional test of drive, PLC, and HMI together
• Communication test on the actual protocol, not a simulation
• FAT witness option for your engineer on site or by video

Factory Test

OEM qualification checklist

Use this checklist when you evaluate an industrial panel oem or integration partner. Every item is a yes-or-no gate:

The strongest partners score yes on all eight. A partner that fails two or more is a fabrication shop with an integration label. World Bank manufacturing sector assessments consistently link automation equipment quality to plant reliability, and IRENA industrial analyses show the same pattern in drive-based energy savings programs.
