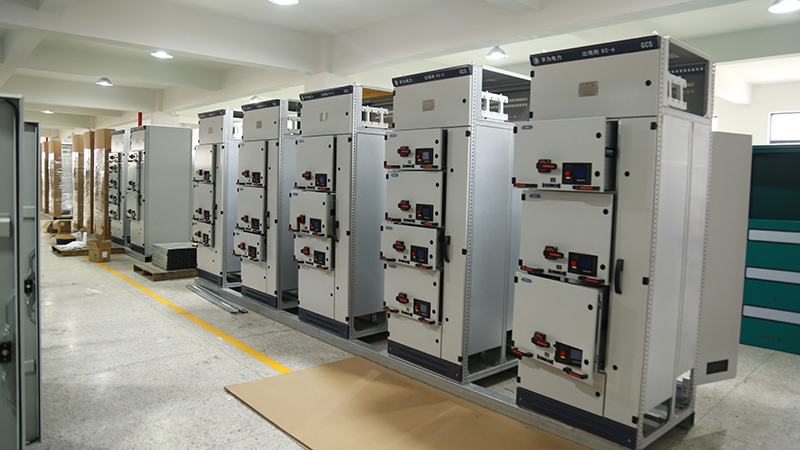

Here is the thing about motor control in industrial plants. Most factories start with wall-mounted starters. Then they add a second. Then a third. Pretty soon you have 30 scattered control panels, and nobody remembers which breaker feeds which motor. A motor control centre MCC panel fixes this mess in one cabinet.
What an electrical MCC cabinet actually does in your plant

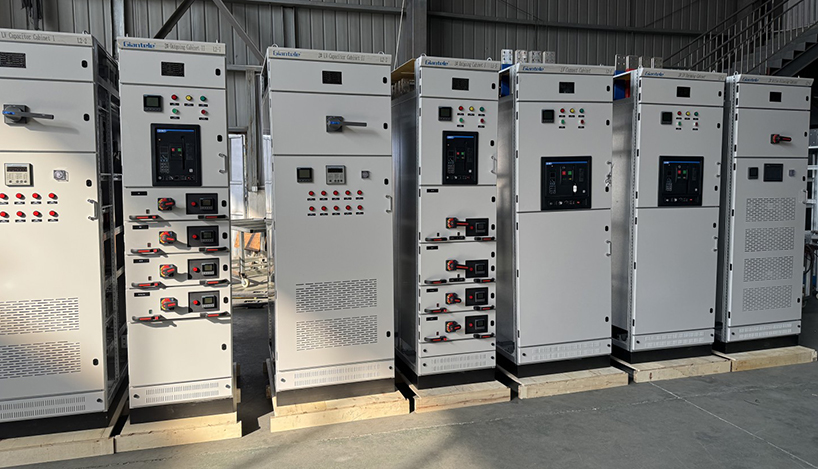

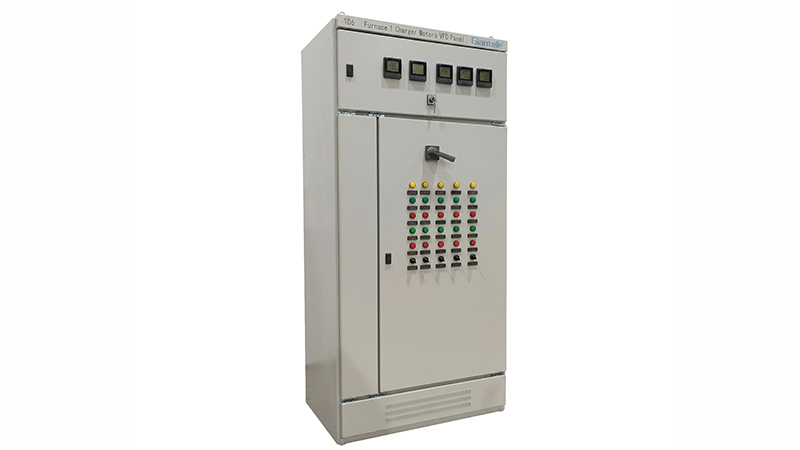

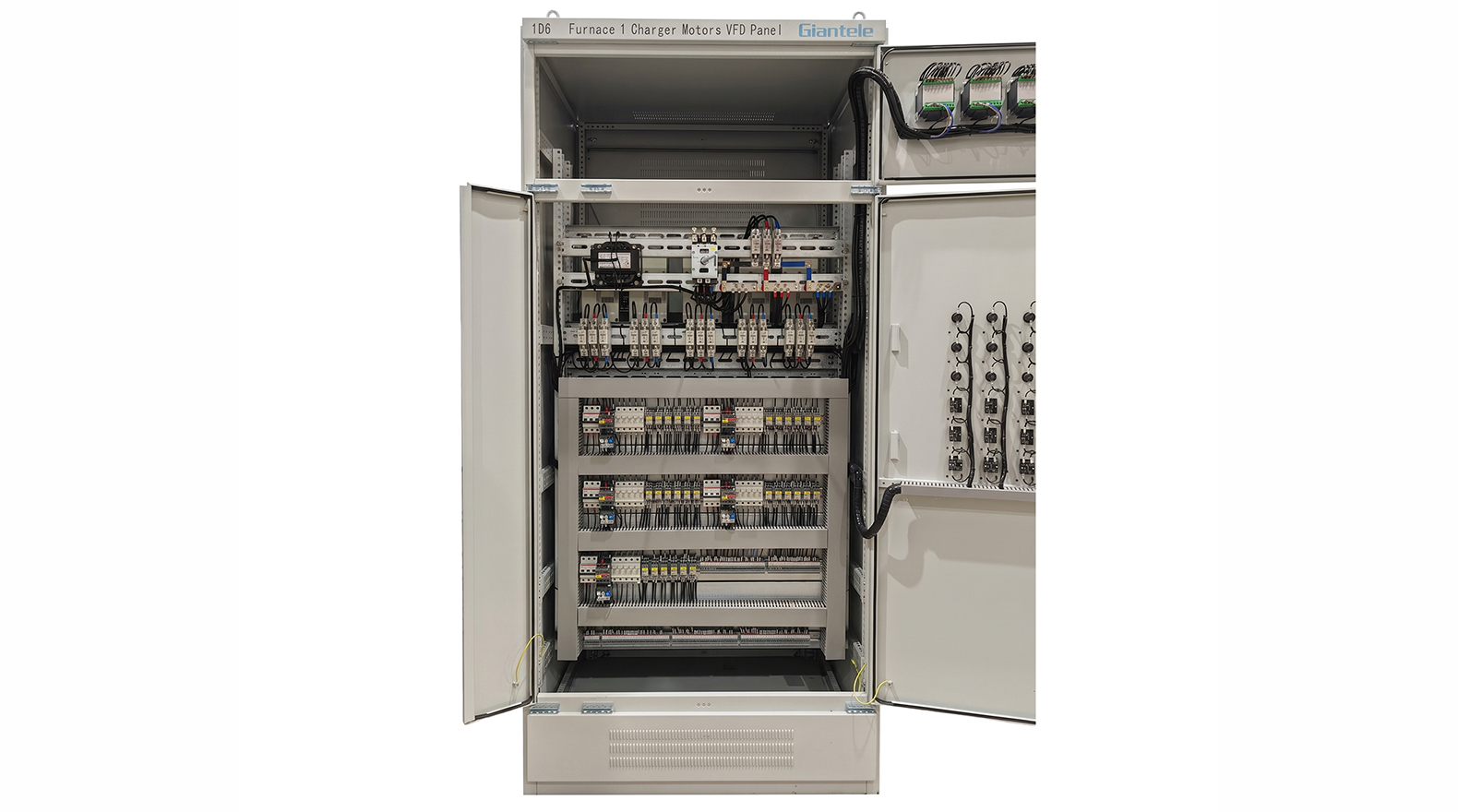

An electrical MCC is a modular cabinet that holds motor starters, VFDs, soft starters, and protection - all in one place. One incoming feeder powers the busbar. The busbar feeds every motor compartment. Each compartment has its own breaker, contactor, overload relay, and control wiring for one motor. That is a motor control centre in its simplest form.
That sounds obvious. But in practice, most plants in emerging markets run on scattered panels. The result? Unplanned downtime when a starter fails and nobody can find the right breaker. Operators walk across the plant floor just to reset a tripped motor. Maintenance logs get lost because they exist on four different cabinets.

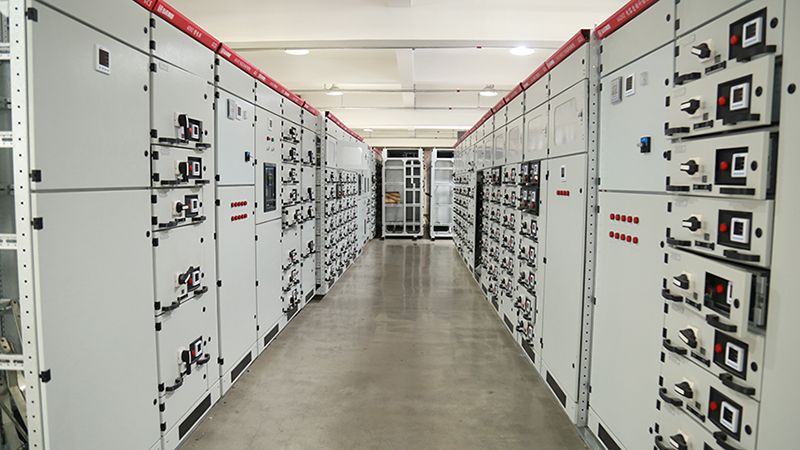

A centralized MCC cabinet fixes all of that. One spot for operation. One spot for maintenance. One set of documentation. And because the compartments are modular, you swap a faulty unit in minutes while the rest of the plant keeps running.
Fixed vs withdrawable MCC panels - what you actually need
Both types do the same job. The difference is how the starter unit connects to the busbar. Fixed MCC panels bolt the starter directly to the busbar. Withdrawable MCC panels put the starter on a sliding carriage with stab contacts. You can pull a withdrawable unit without shutting down the whole panel.
Here is the real question. Do you swap motor starters while the plant is running? If yes, get withdrawable. If you do maintenance during planned shutdowns, fixed MCCs work fine and cost 20 to 30 percent less. Most plants in Africa run fixed because shutdowns are scheduled anyway.
| Dimension | Fixed MCC | Withdrawable MCC |
|---|
| Cost per feeder | 20 to 30 percent lower | Premium pricing |
| Hot-swap capability | Not available | Available, rarely needed |
| Installation complexity | Standard electrician | Alignment tools needed |
| Spare parts inventory | Components only | Complete drawer units |
| Typical use case | Continuous process plants | Critical 24/7 operations |
The table tells you what you need to know. Most projects pick fixed. It is cheaper, simpler, and the maintenance windows match how plants actually run. Unless your process cannot tolerate even 30 minutes of downtime, fixed MCCs are the smarter buy.
Motor control center manufacturers: how to pick the right one
Not all motor control center manufacturers build to the same standard. Here is what to check before you order.

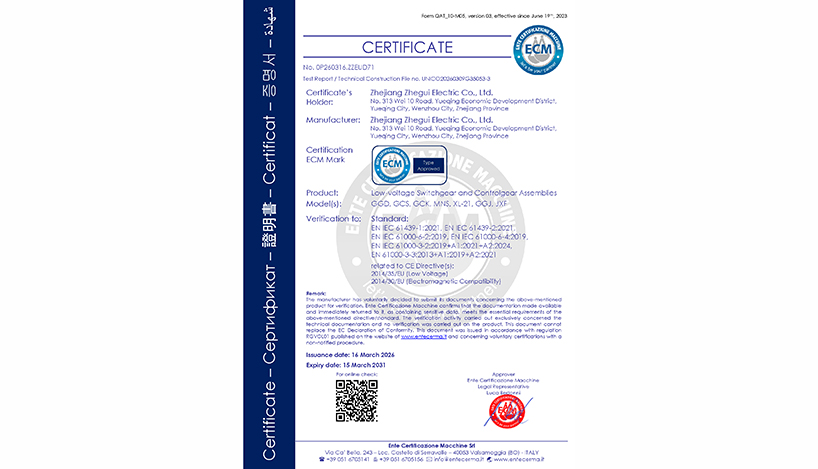

- Type-test reports. Ask for IEC 61439-1 verification. If they hesitate, walk away.
- Component brands. Schneider, ABB, Siemens - not no-name alternatives.
- Export experience. Manufacturers who ship to 50-plus countries handle compliance without panicking.
- FAT documentation. If they skip the factory test, they skip the quality check.
- Lead time track record. A 20,000 m² factory should deliver standard MCCs in 4 to 6 weeks.
- After-sales support. Remote commissioning guidance and spare parts availability matter more than the purchase price.
A good motor control center manufacturer sends you the test report before you pay. A great one sends the FAT video too. Zhegui does both.
Medium voltage motor control centres: when 380V is not enough
If your motors run at 3.3kV, 6.6kV, or 11kV, you need a medium voltage motor control centre. Same concept - centralised motor control in a modular MCC cabinet. But the components change. Vacuum contactors replace air-break contactors. Protection relays replace thermal overloads. Arc-resistant design becomes mandatory.
Medium voltage motor control centres typically serve big pump motors, crushers, compressors, and fans in mining, cement, and oil and gas. The feeder rating starts at 200A and goes up. Arc-fault containment, mechanical interlocks, and remote racking are standard features, not add-ons.
We build MV motor control centers alongside our LV range. Both follow IEC standards. Both go through the same FAT process. The main difference is the voltage class and the component selection. Send us your motor list and we will recommend the right configuration for each voltage level.
MCC panels in African industrial conditions
Plants in Uganda, Kenya, and Angola face three challenges that European MCC designs do not always account for. Voltage fluctuation. Dust and humidity. Limited spare parts access. Our motor control centre panels are engineered around all three.
The components are rated for voltage swings plus or minus 15 percent. The IP54 enclosure and powder-coated steel handle cement dust, sugar dust, and coastal humidity. And because we use Schneider and ABB breakers, your local electrical supplier likely stocks the spares. No 12-week wait for a replacement contactor from Europe.
We ship MCC panels to East and West Africa regularly. Our documentation package includes English and French manuals. Our engineers provide remote commissioning support over video call. If your site electrician hits a question at midnight, we answer within hours, not days.
What makes an MCC motor control centre reliable long-term
Three things, beyond the standard compliance paperwork.

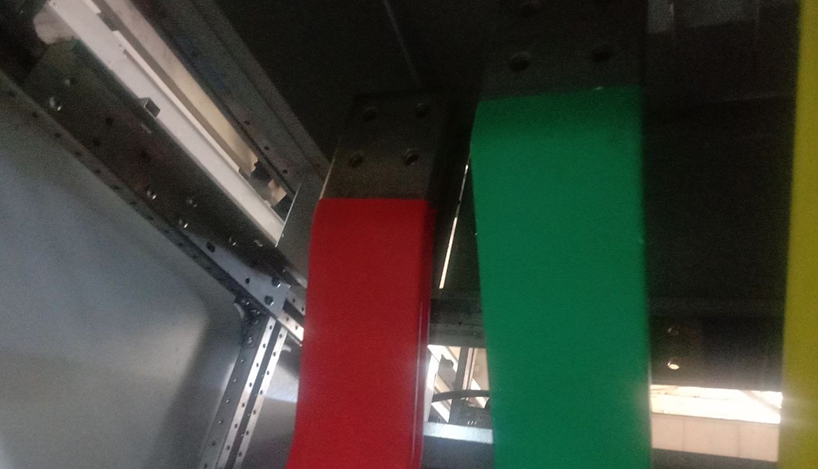

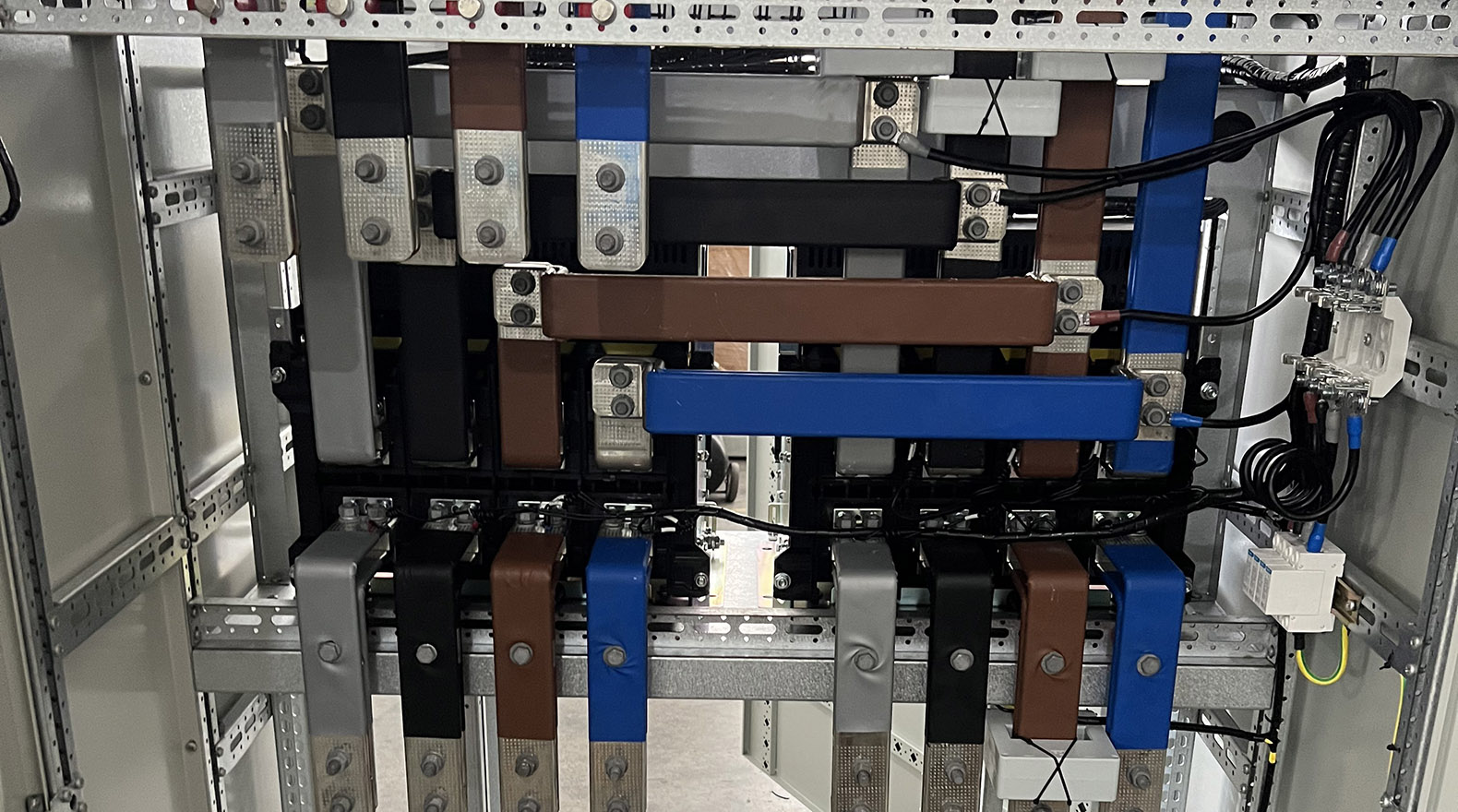

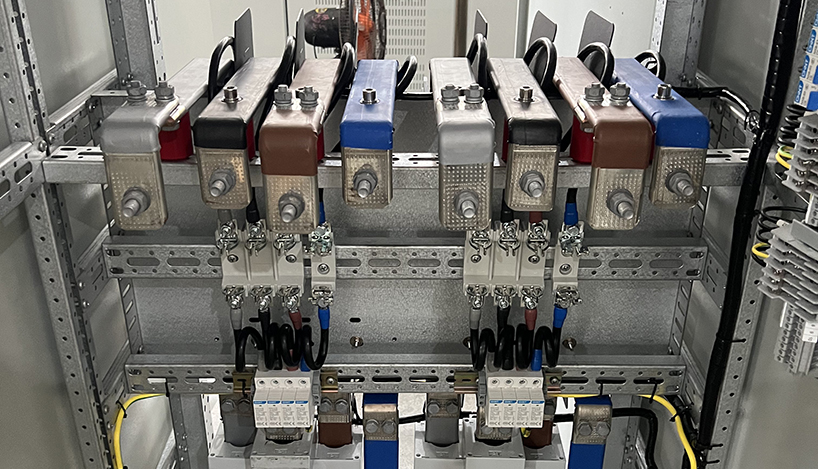

First, the busbar. Silver-plated copper with bolted connections and insulated supports. No welded joints. Welded busbars develop hot spots over time. Bolted connections let you torque-check during annual maintenance. Twenty years of service at full load should be the minimum expectation.

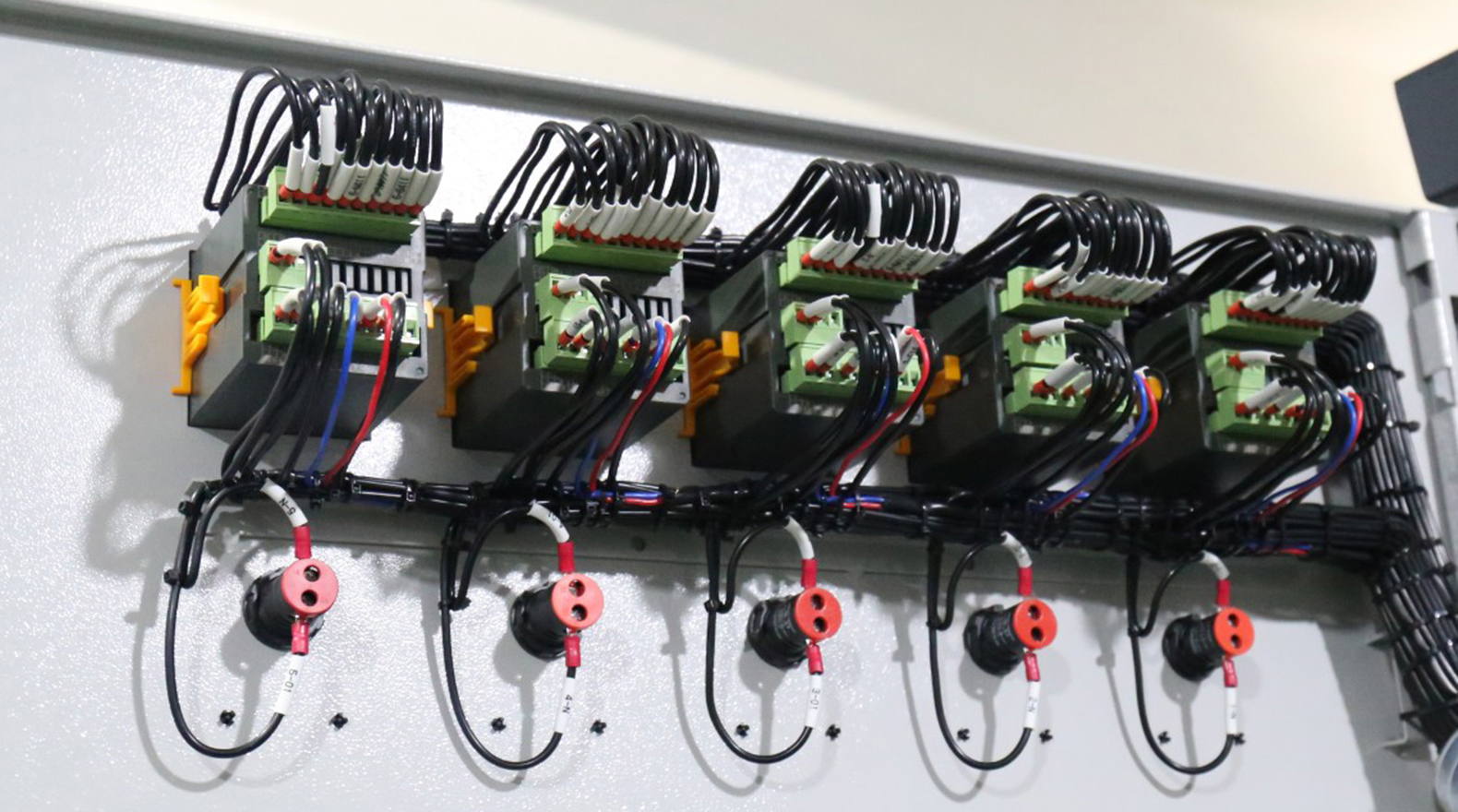

Second, the wiring. Every control wire is numbered at both ends. Every terminal block is labeled. Every compartment has a wiring diagram inside the door. When something trips at 2 AM, your electrician does not need the original drawings. The panel tells them what is what.

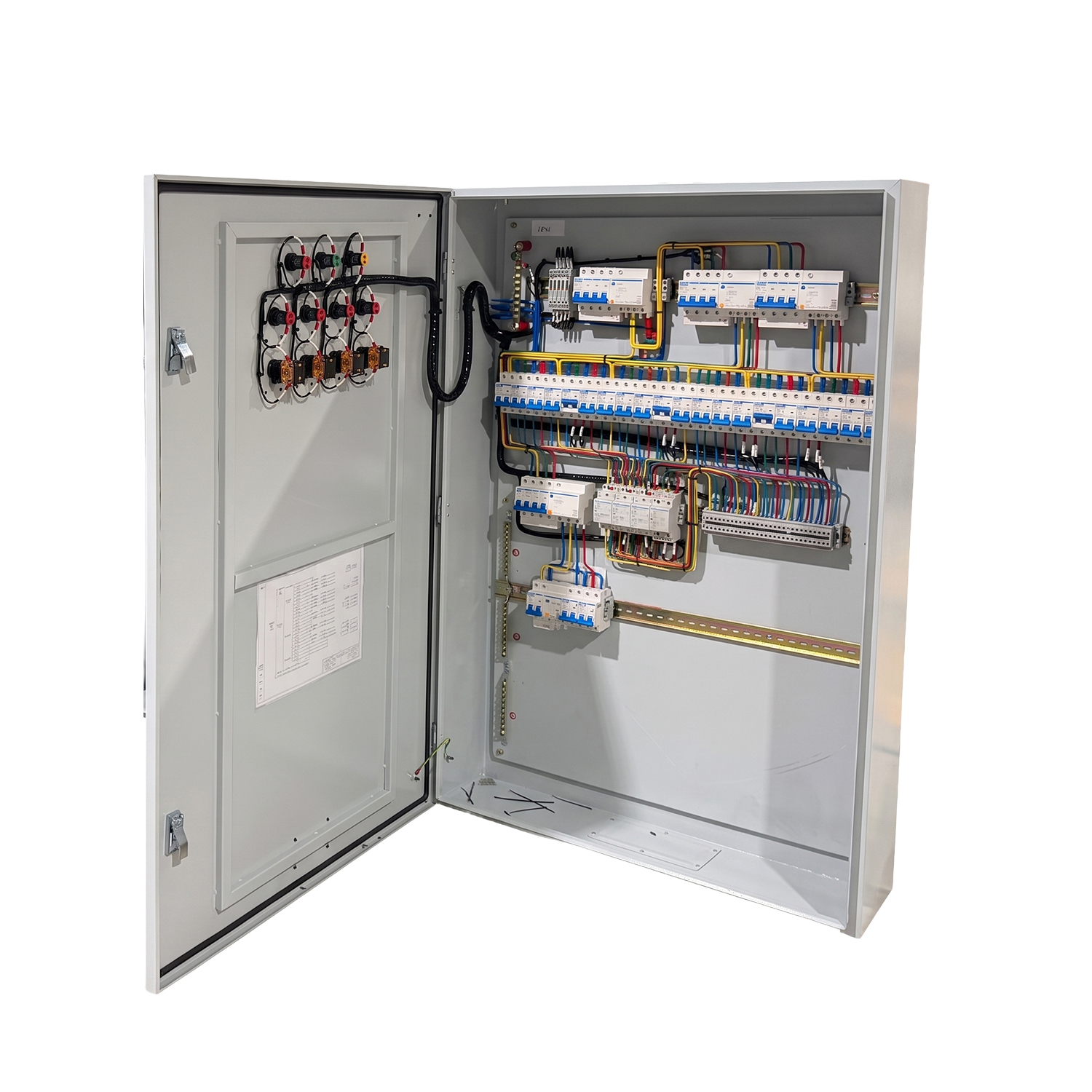

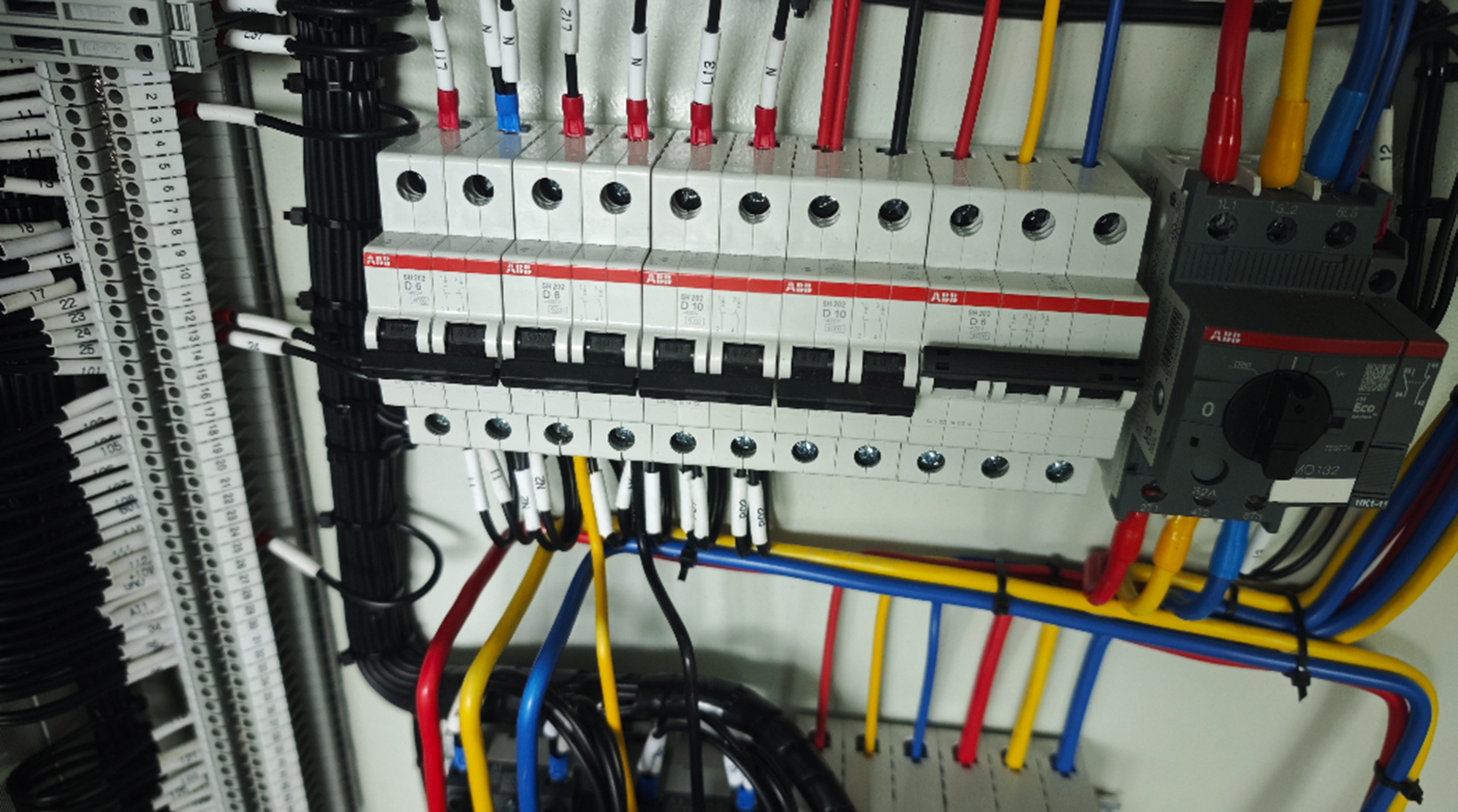

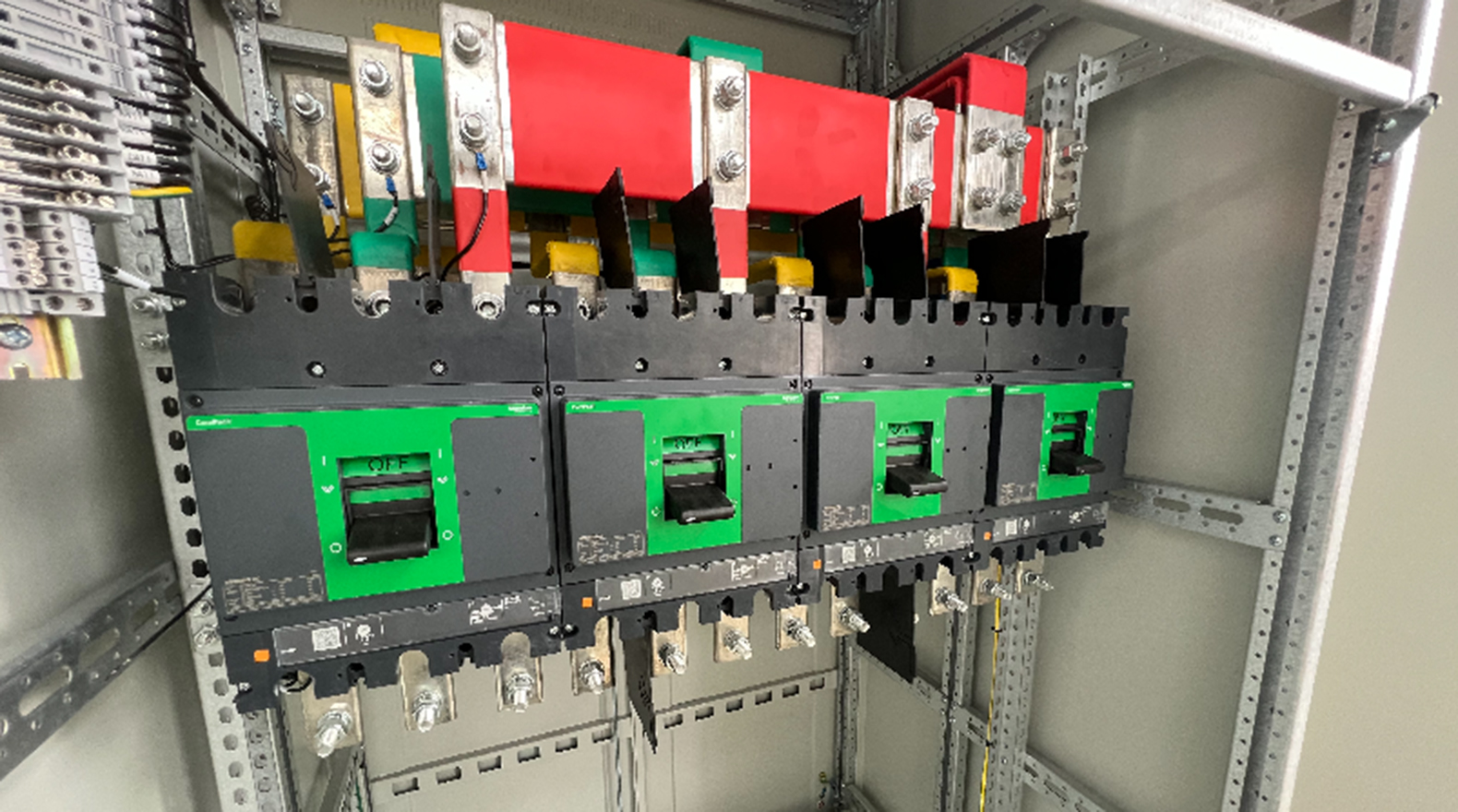

Third, the components. Schneider MCCBs and ABB MCBs have proven track records in African grid conditions. Generic alternatives save money upfront. They cost more in downtime within the first two years. Distribution boards and withdrawable switchgear from our factory follow the same component philosophy.
Frequently asked questions about motor control centres
What is the difference between an MCC and a distribution panel?

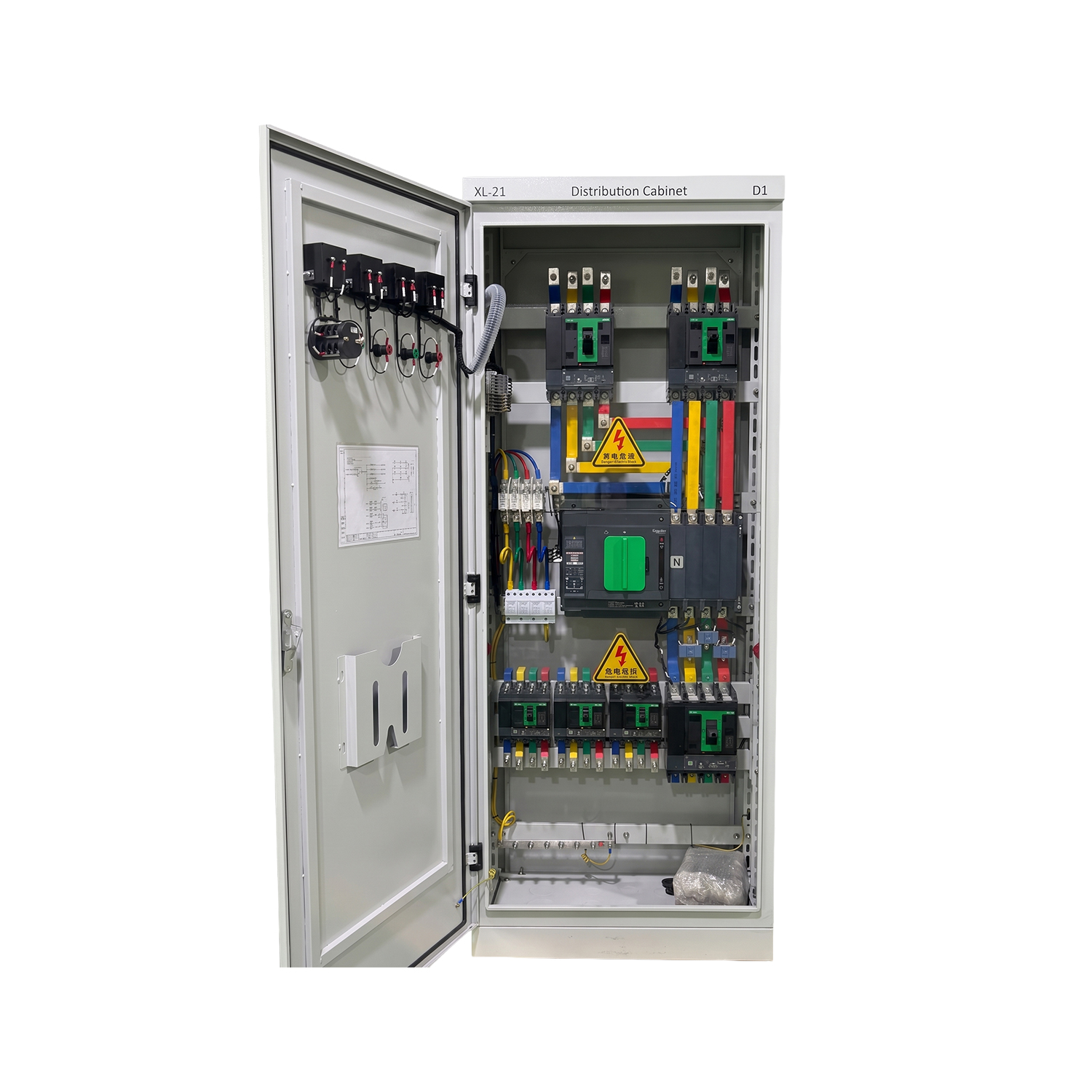

A distribution panel splits power to circuits. An MCC controls motors. The MCC includes starters, overloads, and control logic. A distribution panel just has breakers. If your plant has more than five motors, you need an MCC.
Can I add more motor feeders to an existing MCC cabinet?
Yes, if the busbar has spare capacity and there are empty compartments. Plan for future expansion when you order the motor control centre. Adding 20 percent spare capacity to the busbar costs almost nothing now. Retrofitting it later costs plenty.
Do you build MCCs with VFD compartments?

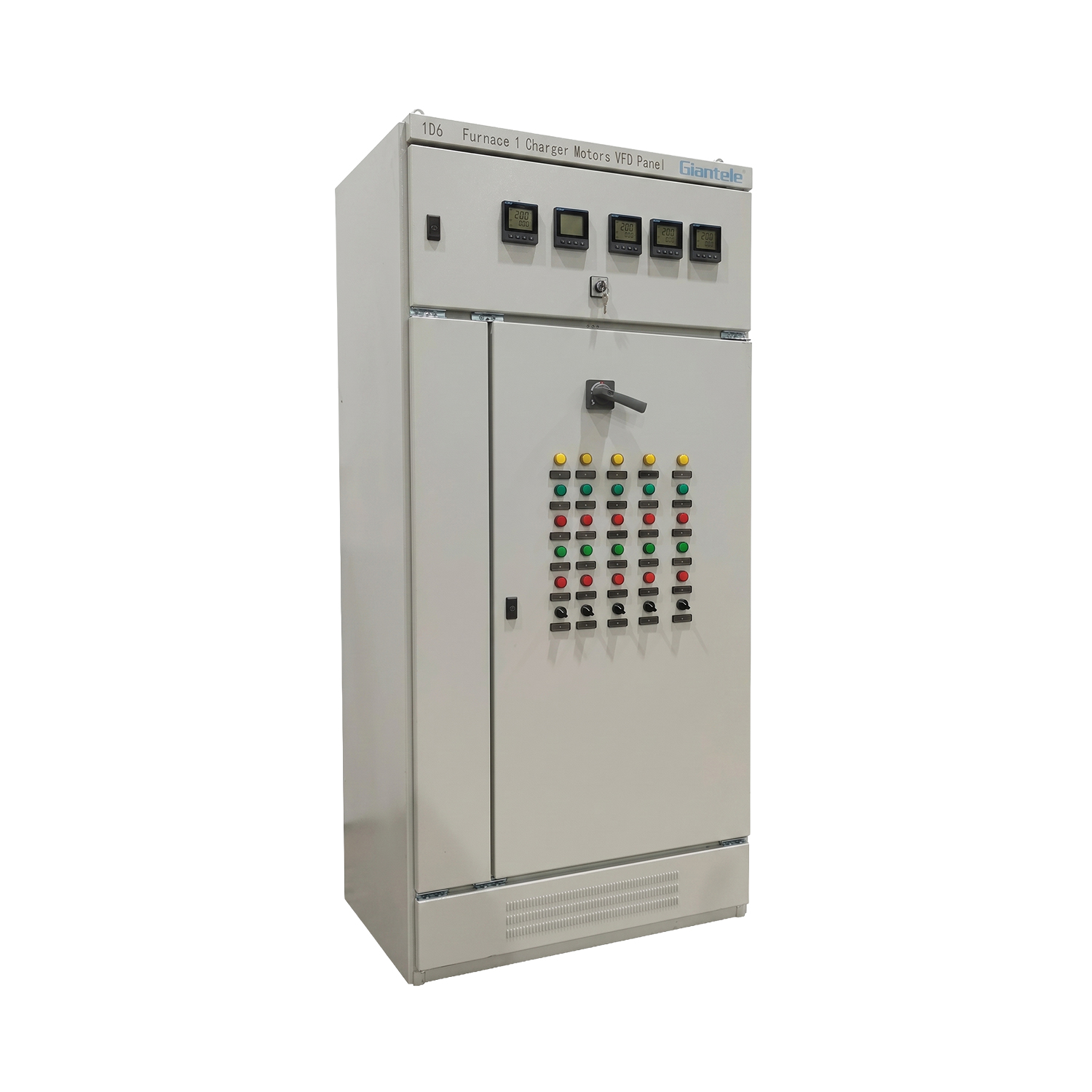

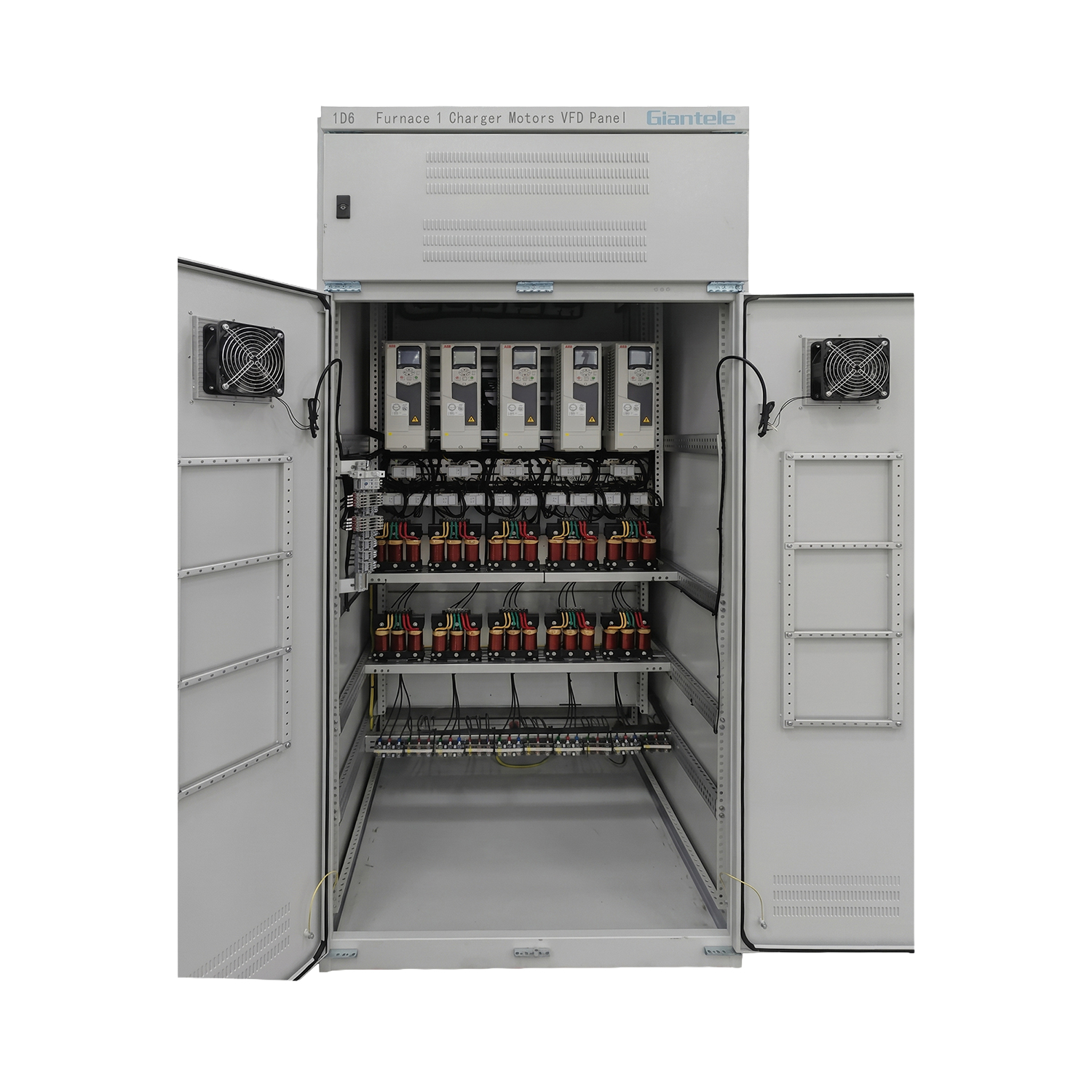

Yes. VFD compartments are a standard option in our MCC panels. We size the compartment for proper cooling and ventilation. Each VFD gets its own door-mounted controls and indication. Integration with PLC and BMS systems available.
How do you handle the FAT for overseas projects?

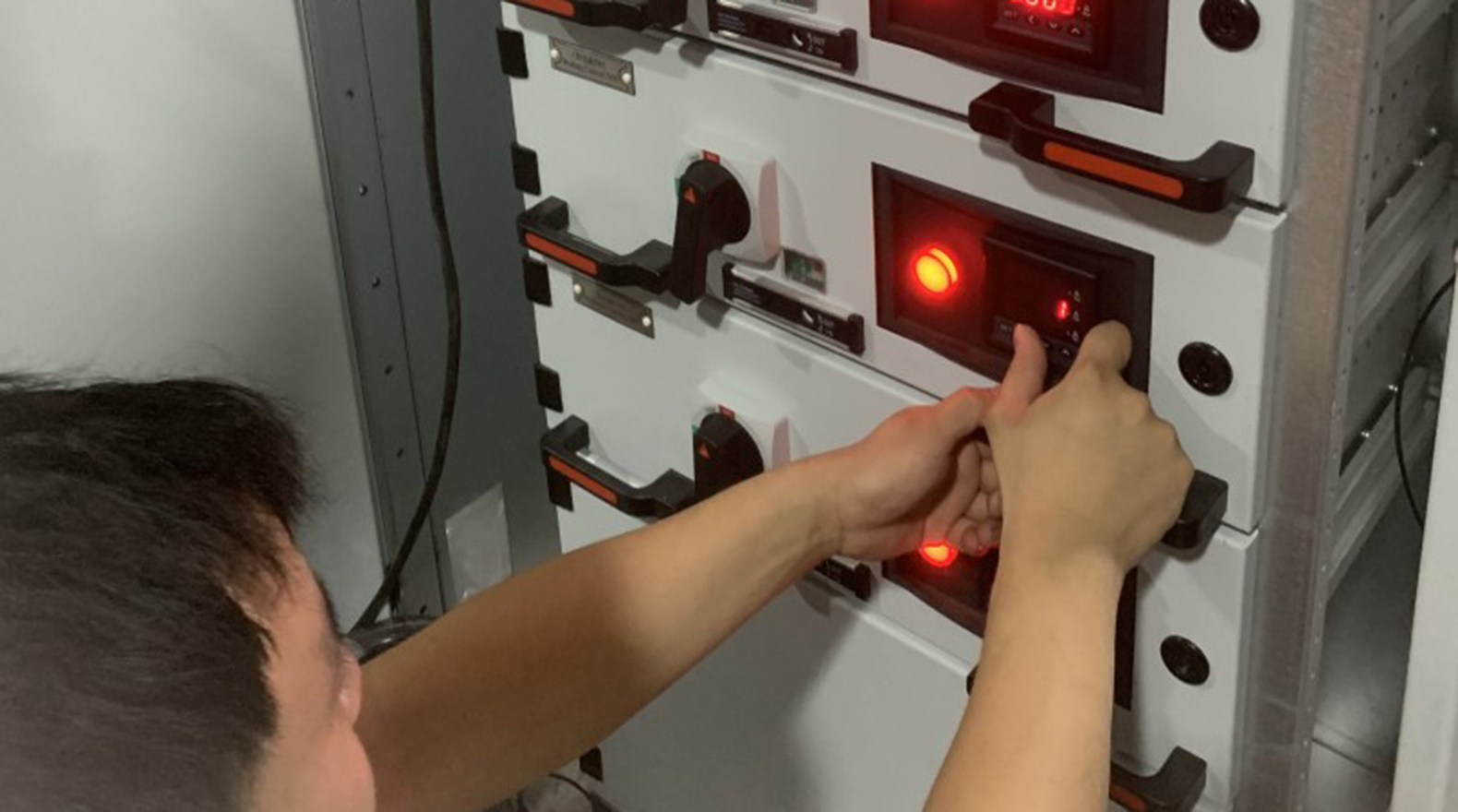

We run the full FAT at our factory. You can witness it in person or via video call. We test insulation, continuity, functional operation, and protection coordination on every feeder. The complete test report ships with the MCC.
What spare parts do you recommend keeping on site?
One spare contactor and overload relay for each motor size. One spare MCCB for the main incomer. One spare MCB for control circuits. That covers 95 percent of maintenance scenarios. Your local Schneider or ABB distributor stocks the rest.
How fast can you ship MCC panels to Africa?
Standard MCC panels ship in 4 to 6 weeks from order confirmation. Sea freight to Mombasa, Dar es Salaam, or Luanda takes 3 to 4 weeks. Total door-to-door: 7 to 10 weeks. Air freight available for urgent projects.
Final thoughts
A motor control centre is the smart way to organize motor starters in any plant with five or more motors. Centralised, modular, and built for the long haul. If your factory is still running on scattered starter panels, you are paying for it in downtime you have not measured yet. Send us your motor list. We will return a technical proposal within 48 hours.
