You use many parts when you work with an industrial control panel. These parts help machines work safely and without problems. Each part has its own job. If you know what each part does, you can find problems fast. This helps you keep things working right. You will often see these types in factories:
Switches
Indicators
Circuit Breakers
Relays
Terminal Blocks
Transformers
Contactors
Fuses
Motor Drives
Learning about these parts helps you keep people and equipment safe.
Learn about the main parts of an industrial control panel. Knowing switches, relays, and circuit breakers helps you fix problems fast.
Always follow safety standards like CE and IEC. These rules keep your control panel safe. They protect people and equipment from electrical dangers.
Keep the wiring neat inside the control panel. Organized wires make fixing things easier. It also helps reduce time spent on repairs.
Use control devices like PLCs for better automation. PLCs help run complex systems. They make work more efficient.
Check and test your control panel often. Regular inspections find small problems early. This stops big issues from happening.
An industrial control panel is like the main part of an automated system. It holds many parts that help control machines and processes. You use a control panel to keep track of electricity and signals. The panel helps machines work safely and as they should.
A control panel does more than just start or stop machines. It helps you do tasks automatically, makes work faster, and keeps people safe. Here are the main jobs most panels do:
They run machines with set rules, so you do not have to do each step yourself.
They make work easier and cut down on manual tasks. This helps stop delays.
They keep people and equipment safe with things like overload protection and emergency stops.
When you build or use a control panel, you must follow rules. Standards like CE, ECM, LVD, EMC, IEC 61439, and IEC 62271 help you make sure everything is safe and meets global requirements.
Industrial control panels are found in many places. Each place uses the panel for different jobs or to fix certain problems. The table below shows where you might see these panels and what they do:
Industry | Application Description |
|---|---|
Manufacturing Plants | Powering production lines, coordinating machinery, keeping process control |
Process Industries | Controlling flows, levels, temperatures, and pressures |
Packaging and Assembly | Matching movements and checking quality |
Infrastructure Automation | Managing HVAC systems, lighting, and energy use |
Water and Wastewater Facilities | Handling pumps and dosing systems |
HVAC Systems | Controlling fans, blowers, and compressors |
Material Handling Systems | Managing lifts and automated loaders |
Large Industrial Complexes | Giving power to machines and other systems |
Commercial Buildings | Central electrical distribution for big buildings |
Utility Substations | Main power routing and safety systems |
You might see a control panel in a factory, water plant, or a big office building. Each panel uses its parts to fit the job it needs to do. If you know how and where these panels work, you can take care of your systems better.
When you open an industrial control panel, you see many parts. Each group of parts has a special job. You need to know these groups to understand how a control panel works. This helps you keep it safe and working well. Here are the main parts in a control panel:
Control devices
Protection devices
Interface components
Enclosure and wiring system
Let’s see how each group helps your systems work.
Power distribution parts bring electricity into the control panel. They send power to the right places. You see both AC and DC in control panels. AC is used for most machines. DC is used for parts that need steady voltage. Transformers change the voltage to what your equipment needs. Main and branch circuit breakers split power into smaller sections. This makes it easier to manage and protect.
Tip: Good power distribution keeps your equipment safe. It helps stop overloads.
Control devices are like the brain and hands of your control panel. Relays and contactors turn circuits on and off. Relays are small switches. They open and close circuits using electrical signals. You use them for low-current jobs like turning on fans or lights. Contactors handle bigger voltage loads. They control high-current devices like motors. They help you manage motor control and protect against overloads.
PLCs are advanced control devices. A plc acts as the brain of the control panel. It manages data and controls outputs based on sensor inputs. You can use a plc to watch sensors and control things like motors, hmi screens, solenoids, valves, and lights. This makes your control panel smart and flexible.
Relays let you control small devices.
Contactors help you manage big machines.
PLCs give you full control over complex systems.
Protection devices keep your control panel and equipment safe from electrical faults. Circuit breakers protect against overloads and short circuits. They cut off power when needed. Fuses also break the circuit if too much current flows. You need to replace them after they work. Surge protection devices (SPDs) protect your equipment from voltage surges. These surges can come from lightning or power spikes.
Circuit breakers stop dangerous currents and prevent short-circuiting.
Fuses protect by breaking the circuit during overloads.
SPDs handle high surge currents and keep your equipment safe from sudden voltage spikes.
SPDs are very important in places with sensitive electronics. This includes data centers or hospitals. They move extra voltage away from your equipment. This stops damage before it happens.
Interface components help you use your control panel. Switches let you turn machines on or off. They also let you pick different modes. Indicator lights show you the status of your system. For example, a red light means you need to stop the machine right away. A green light means everything is working well.
Beacon Color | Meaning | Action Required |
|---|---|---|
Red | Highest urgency | Stop machines immediately |
Yellow/Amber | Imminent critical state | Monitor or take action soon |
Orange | Imminent critical condition | Monitor or take action soon |
Green | Normal condition | No action needed, machine is running |
Blue | Defined action required | Take specific action as needed |
Clear | No special meaning | Check system for supervision or intervention |
Terminal blocks are another important interface component. They connect field instruments to the panel’s wiring. Fused terminal blocks add extra protection. They stop overcurrent in one spot. Ground terminal blocks help with safe grounding. They reduce electrical noise. You also use wire ducts, cable ties, and wire markers. These keep everything neat and easy to find.
The enclosure is the outside shell of your control panel. It protects all the electrical parts from dust, water, and accidents. Inside the enclosure, the wiring system connects everything. Good wiring makes it easy to find and fix problems. You use wire ducts, cable ties, and markers to keep cables tidy. This helps you with maintenance and troubleshooting. Organized wiring also reduces downtime. It helps you follow safety rules.
Benefit | Description |
|---|---|
Enhanced Troubleshooting | Organized wiring helps you find and fix faults quickly. |
Reduced Downtime | Good wire management means faster repairs and less interruption. |
Compliance with Standards | Proper wiring keeps your control panel safe and reliable. |
Note: Always follow the right standards and keep your wiring neat. This keeps your control panel safe and easy to maintain.
Now you know the main groups of parts in a control panel. Each group helps your systems run safely and efficiently.
All the parts in an industrial control panel must work together. Power distribution brings electricity into the panel. It sends power to the right places. Control devices like relays, contactors, and PLCs help machines start and stop. They also help machines change what they do. Protection devices such as circuit breakers and surge protection devices keep equipment safe. They stop overloads and faults from causing damage. Interface components include switches, indicators, and human-machine interfaces. These let you see what is happening. They let you make changes when needed.
When you use these parts together, your system works better. Control systems use relays and PLCs to react fast. If something goes wrong, protection devices cut power quickly. This stops damage. Human-machine interfaces and hmi screens help you watch the system. They help you make good choices. In new systems, converter interfaces and synchronous compensators help control power flow. They help the system handle faults. All these parts working together keep your control panel safe and running well.
Keeping your control panel organized is very important for safety. You should use wire ducts and DIN rails to hold parts in place. This setup keeps cables safe from harm. It also makes it easy to find and fix problems. Ground terminal blocks help you make safe connections. They lower electrical noise. This helps you meet standards. These rules make sure your panel is safe and ready to use.
Circuit breakers and terminal blocks are important for safety. Circuit breakers stop overloads and short circuits before they cause trouble. Terminal blocks give you strong connections. This lowers the chance of wiring mistakes. When you organize your parts well, you lower the risk of faults. You also make repairs easier. Good organization helps you follow safety rules. It keeps your industrial control panels working for a long time.
Tip: Always keep your wiring neat and label your cables. This makes it easier to fix problems and keeps your system safe.
Industrial control panels come in many shapes and sizes. You pick the type based on what you want to control. Each type has its own special features and uses. Here are the main types you should know about:

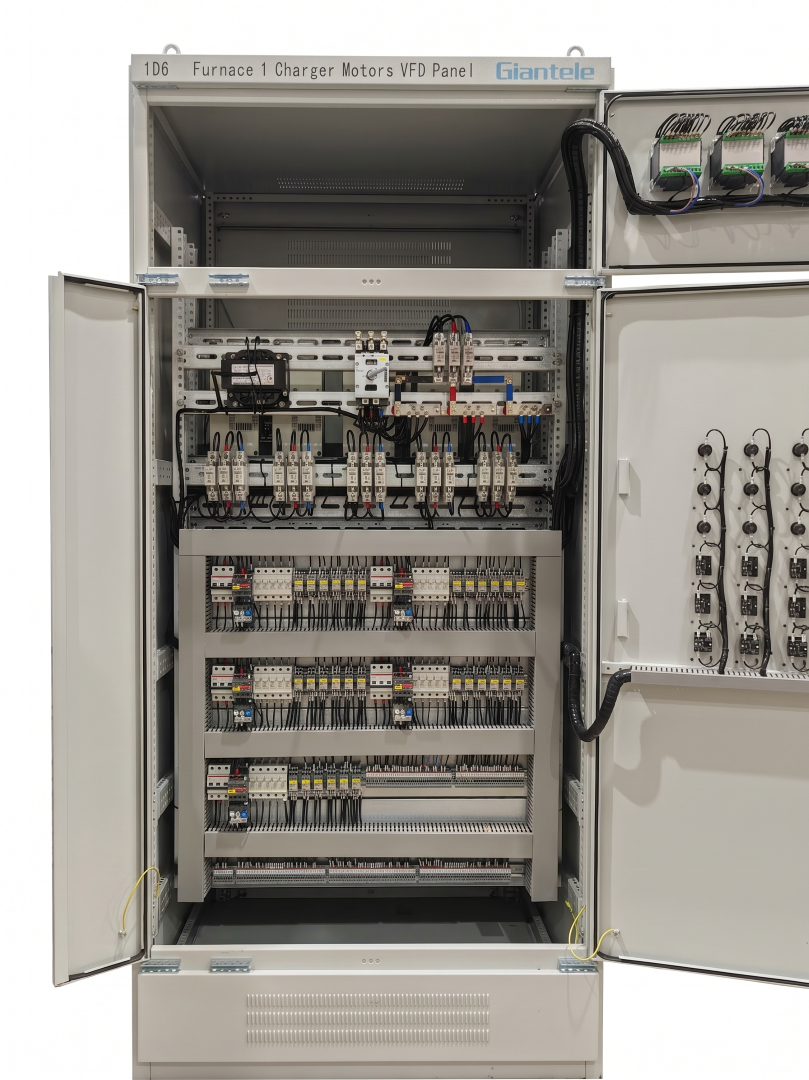

Motor control panels help you manage electric motors from one place. You can control more than one motor at the same time. These panels put all the motor circuits together. They have overload protection and disconnect switches. This setup makes your work safer. It also helps you fix problems faster. You see motor control panels in factories, HVAC systems, water plants, and material handling. These panels use motor drives and variable frequency drives. This lets you change speed and power. You get better control and save energy.
Tip: Motor control panels let you start, stop, and protect motors easily. You can also work on them without turning off the whole system.
Process control panels help you automate and manage hard tasks. You use them to control machines and equipment in a process. These panels help you work faster and cut down on downtime. They also keep your work safe. You find process control panels in factories, energy plants, building systems, water plants, and material handling. Main parts include power supplies, programmable logic controllers, human-machine interfaces, and input/output devices. These parts work together to run your process smoothly.
Panel Type | Main Function | Key Components |
|---|---|---|
Motor Control | Controls electric motors | Starters, contactors, overloads, motor drives |
Process Control | Automates processes | PLCs, HMIs, I/O modules, power supplies |
Sometimes, you need a control panel made for a special job. Custom and specialized panels fit unique needs in your industry. You might need special motor controllers, relays, or switches. These panels help you manage complex systems. They make sure everything works well. For example, you may use a variable frequency drive panel to control motor speed. Custom panels help your work stay reliable and efficient.
Panel Type | Description | Common Uses |
|---|---|---|
Controls machines and processes | Manufacturing, water treatment | |
Manages many motors from one spot | Plants, HVAC, material handling | |
Controls motor speed and torque | Conveyors, pumps, fans |
Note: Custom panels help you meet special needs. They keep your system safe and working well.
When you know what each control panel part does, you help keep your system safe and working well. You learn that circuit breakers and fuses stop overloads and short circuits. If you know how PLCs work, you can control machines better and make fewer mistakes. Testing and following rules keeps your panel safe and ready to use.
Importance of Testing and Commissioning | Description |
|---|---|
Ensures Reliability | Checks every wire and control before you use it. |
Compliance with Safety Standards | Follows CE, ECM, LVD, EMC, IEC 61439, and IEC 62271 safety rules. |
Enhances Operational Reliability | Finds and fixes problems before they cause trouble. |
You also make it easier to find problems and help your system work better. Training classes teach you about parts, safety, and how to take care of your panel. Keep learning so your control panels last longer and work better.
You use a control panel to manage machines and processes. The panel lets you control power, start or stop equipment, and keep everything safe. It helps you organize and protect your system.
You keep a control panel safe by following standards like IEC 61439, and IEC 62271. These rules help you build a panel that protects people and equipment from harm.
You need regular checks to find problems early. This keeps your control panel working well. You can fix small issues before they become big ones. Regular checks also help you follow safety rules.
Yes, you can add new devices to a control panel. You must make sure the panel has enough space and power. Always follow the right standards to keep your system safe and reliable.
First, check the power and look for tripped breakers. You should also look for loose wires or blown fuses. If you cannot find the problem, call a trained technician to inspect the panel.
