A power distribution board works by receiving electricity at one point, transferring it through an internal busbar arrangement, and sending it out through individually protected circuits. This simple flow creates the control structure needed for a safe, serviceable electrical installation. The board can be small enough to serve a local area or large enough to distribute a major incoming supply across an industrial facility. In either case, its performance depends on the complete system design: source characteristics, protection coordination, circuit duties, enclosure conditions, installation quality, and how people operate it after commissioning.
Key Takeaways
A power distribution board receives an incoming supply, distributes it over busbars, and protects outgoing branch circuits.
The main incomer, busbars, protective devices, and terminals each have a specific job in the power path.
A fault should be handled by the designed protection scheme, ideally limiting disruption to the affected circuit.
Correct selection requires both normal-load data and short-circuit information; one cannot replace the other.
The power path: from source to branch circuit
Begin with the electrical source. It may be a utility transformer, a generator, a previous distribution board, or a source-transfer arrangement. A cable or busway brings that supply to the power distribution board. At the board, the main incomer provides the designed connection and may also provide switching, isolation, and overcurrent protection depending on the arrangement. The incomer is not just a large switch; it must suit the incoming cable, the source conditions, and the protective coordination of the system.
From the main incomer, current is transferred to the electrical busbar. Busbars are conductive bars or assemblies arranged to carry current to multiple outgoing ways. They provide a compact and orderly alternative to making every outgoing connection directly at the incomer. Outgoing circuit breakers or other protective devices connect to the busbars, and each device feeds a branch circuit. That circuit may supply a motor, lighting panel, socket-outlet group, HVAC unit, process machine, or downstream board.
In a three-phase installation, the board typically distributes the phase conductors and, where applicable, neutral and protective-earth conductors. Three-phase equipment uses the phase arrangement designed for it, while single-phase branch circuits connect between a phase and neutral where the system provides one. The circuit schedule and phase allocation are therefore part of how the board works, not secondary paperwork.
What happens during normal operation and a fault
During normal operation, the board carries current within its rated design conditions. Devices remain closed, busbars distribute the supply, and loads draw power according to their operating patterns. If meters are installed, they may show values such as current, voltage, demand, energy, or power factor. These readings can support operating decisions, but they must be interpreted in the context of the system and meter configuration.
When an overload or fault occurs, the relevant protective device is intended to respond. A branch circuit breaker may open because the current exceeds its trip characteristics or because a downstream fault creates a high current. The exact response depends on device type, settings, fault magnitude, and upstream-downstream coordination. The design aim is often for the device nearest the fault to operate first so healthy circuits remain energised. This outcome is not automatic; it requires calculated protection coordination and suitable device selection.
Electrical isolation is different from automatic fault clearing. Isolation is a deliberate process used before maintenance or inspection, following the project’s safety rules. The board provides the physical devices and labels that make circuit identification possible, but authorised workers must still follow lockout, verification, and permit procedures appropriate to the jurisdiction and work scope.
How the key parts work together
Part | Role in normal operation | Role during a fault or maintenance task |
|---|---|---|
Main incomer | Admits source power to the assembly | May isolate or protect the incoming supply as designed |
Busbar system | Carries current to multiple outgoing ways | Must withstand the specified thermal and mechanical duty |
Outgoing circuit breaker | Supplies an individual branch circuit | Opens the affected circuit according to its protective characteristics |
Neutral and PE terminations | Complete the designed conductor arrangement | Support correct circuit connections and protective continuity |
Enclosure and barriers | Protect people and components from normal contact or exposure | Limit access and support safer service procedures |
Labels and schedule | Identify circuits for everyday operation | Help personnel select the correct circuit for isolation and investigation |
Why short-circuit protection and board verification matter
Normal current is only part of the electrical duty. During a short circuit, current can rise dramatically for a brief period. The protective device must be able to interrupt the fault within its declared capability, and the assembly must be suitable for the stresses it is specified to withstand. The available fault level depends on factors such as transformer characteristics, source impedance, cable lengths, and the location of the board in the system. It cannot be guessed from the board’s nominal ampere rating.
That is why a responsible specification asks for both rated current and relevant short-circuit performance. It should also identify the applicable EU standard, verification expectations, and any site conditions that affect performance. Low-voltage assemblies are commonly discussed in relation to EN IEC 61439, but the correct part, application, and evidence must be confirmed for the particular project. A generic statement on a quotation is not a substitute for a clear technical scope.
How distribution panel operation supports maintenance
Good distribution panel operation begins with circuit identification. The operator should be able to see what the incomer controls, what every outgoing device supplies, and which circuits are essential. Clear labels, as-built circuit schedules, and current drawings reduce the chance of isolating the wrong feeder. They also make it easier to trace a recurring trip back to a particular machine or area.
Maintenance teams should look beyond breaker resetting. A repeated trip may signal overload, insulation deterioration, mechanical failure in connected equipment, inrush issues, an incorrect protective setting, or a change in operating conditions. The response should be investigation under safe procedures, not repeated restoration without understanding the cause. Signs of overheating, loose terminations, unusual noise, moisture ingress, corrosion, damaged door seals, or unreadable labels also deserve attention.

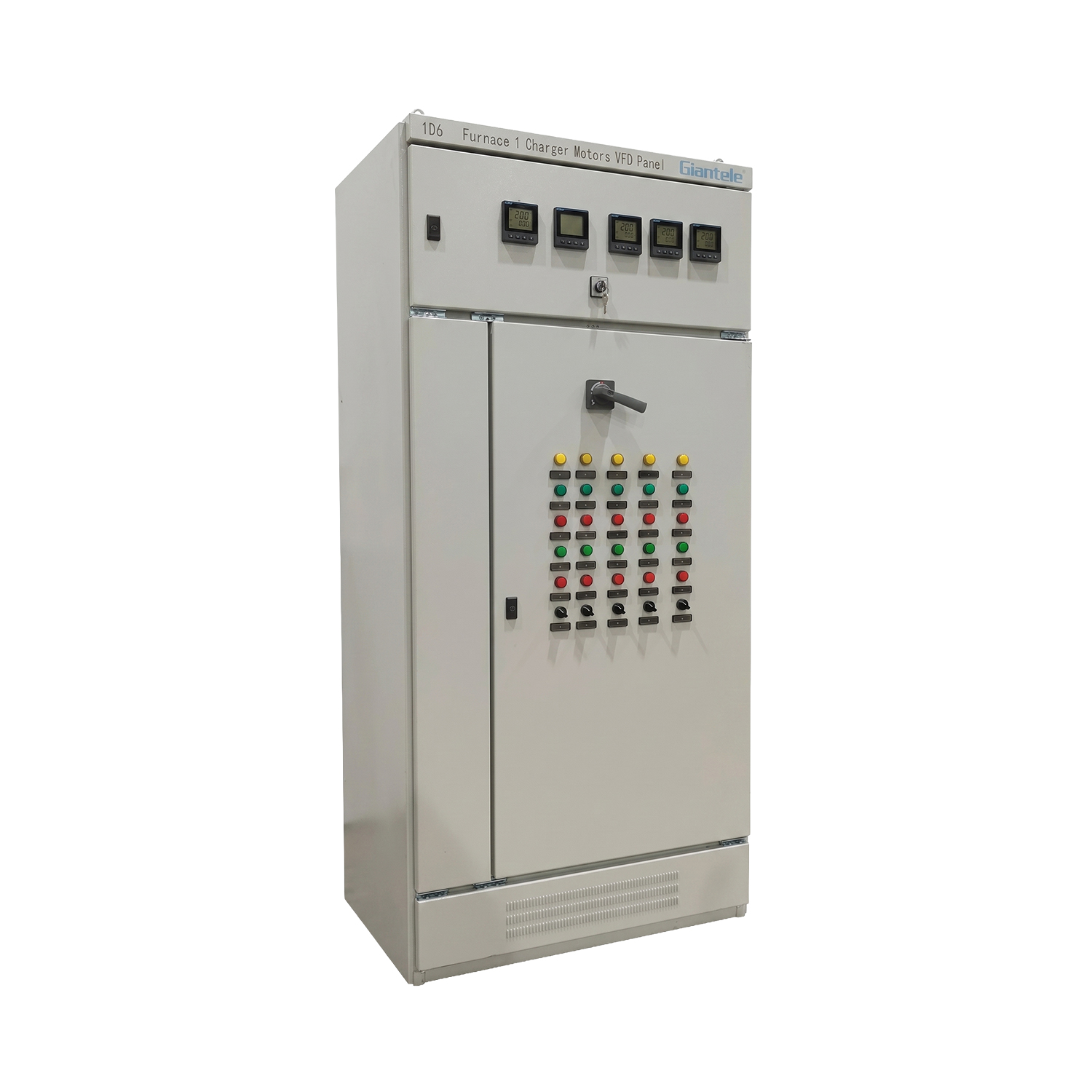

Zhejiang Zhegui Electric Co., Ltd. supplies electrical distribution equipment for defined applications, and the power distribution board product area is a useful starting point for comparing product categories. A board should be designed, installed, and maintained by competent teams against the actual job requirements.
Specifying a board that works in practice
Give the manufacturer the information that defines both electrical and physical fit. Electrical data includes voltage, frequency, phase arrangement, earthing system, source type, incoming current, load schedule, outgoing circuit details, and fault level. Physical data includes indoor or outdoor location, dust, humidity, corrosion risk, IP requirement, ambient conditions, cable-entry routes, floor or wall mounting, and available room. Operational data may include generator transfer, metering, communication, critical-load segregation, lockout needs, and expected future expansion.
Then review the arrangement as a whole. Can the cables enter and terminate safely? Is there enough bend radius and working room? Can the right compartments be accessed without exposing unrelated live parts? Are spare circuits genuinely usable? Do the labels and documentation describe the delivered configuration? The most successful boards are those whose technical drawings, factory build, site installation, and operating documents all match.
Conclusion
A power distribution board works as the controlled junction between an incoming electrical source and multiple outgoing circuits. The main incomer receives the supply, busbars distribute it, protective devices manage individual feeders, and the enclosure plus documentation make the system operable. When the board is correctly specified and maintained, it helps contain faults, organise electrical loads, and support safe changes over the life of the facility.
FAQs
What is the main incomer on a power distribution board?
The main incomer is the designed point where the incoming supply enters the board. Its switching and protective functions vary by system, but its rating and arrangement must suit the source and the overall protection design.
Are busbars better than cables inside a distribution board?
They serve different roles. Busbars are commonly used to distribute power within an assembly because they create an orderly, robust common connection. The suitable construction depends on the required current, fault duty, layout, and verified design.
What causes a circuit breaker to trip?
A breaker can trip because of overload, short circuit, earth fault where protection is provided, or its specific protective settings. Repeated tripping requires diagnosis by qualified personnel rather than repeated resetting.
Can a board distribute both single-phase and three-phase loads?
Yes, if it is designed for the supply arrangement and the circuits are correctly allocated, protected, and connected. Phase balancing and neutral loading must be considered.
What should be checked before energising a new board?
The responsible team should complete the approved installation and commissioning checks, verify connections and labels, confirm relevant protection settings, inspect the assembly, and record test results in line with the project and local requirements.
