Introduction
Ring main unit systems play a key role in modern wind power distribution networks. A ring main unit, also called an RMU or medium voltage switchgear, helps improve power reliability and operational safety in wind farms.
Wind power projects often operate in remote and harsh environments. So reliable medium voltage distribution becomes very important. A compact switchgear system helps reduce downtime, improve protection performance, and simplify maintenance.
This guide explains how ring main unit systems work in the wind power industry. It also covers RMU types, selection methods, IEC standards, and maintenance tips for renewable energy projects.

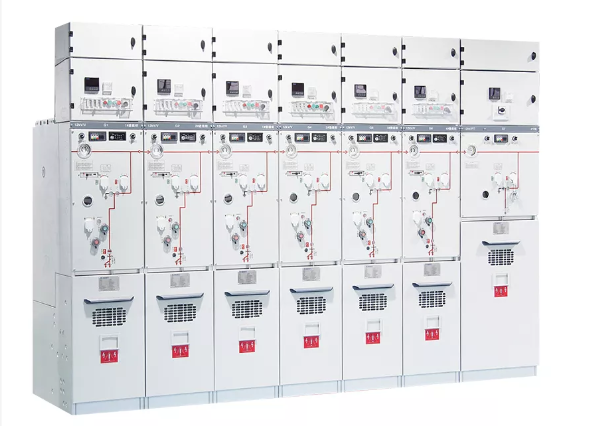

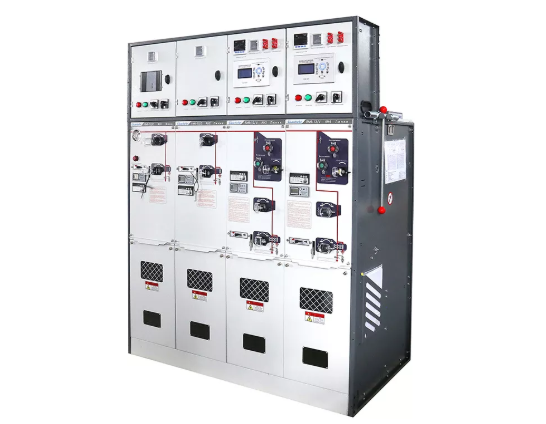

1. What Is a Ring Main Unit (RMU)?
Main Functions of a Ring Main Unit
A ring main unit controls, protects, and isolates medium voltage electrical systems.
It distributes electrical power between transformers, wind turbines, and substations. RMUs also protect equipment during overload or short-circuit conditions.
How an RMU Works in Medium Voltage Distribution Systems
An RMU operates inside a ring network structure.
If one section fails, the system continues supplying power through another path. This improves power continuity and reduces service interruptions.
This feature is very useful in wind farms because remote locations require stable electrical distribution.
Key Components Inside a Ring Main Unit
Most ring main unit systems include:
● Load break switches
● Vacuum circuit breakers
● Earthing switches
● Protection relays
● Busbars
● Cable compartments
These components help ensure safe and reliable operation.
Difference Between RMU and Conventional Switchgear
Many people compare RMU systems with traditional switchgear.
A ring main unit usually offers a more compact design and easier installation. Conventional switchgear often requires larger installation space.
RMUs also provide better flexibility for renewable energy distribution systems.
2. Why Ring Main Units Are Used in the Wind Power Industry
The Need for Reliable Power Distribution in Wind Farms
Wind farms require continuous and stable power distribution.
Unexpected power failures can stop turbine operation and reduce energy production. So reliable medium voltage switchgear becomes critical.
How RMUs Improve Power Supply Continuity
Ring main unit systems support continuous power flow.
When a fault occurs, operators can isolate the faulty section without shutting down the entire network. This improves operational reliability.
Ring Main Unit Benefits for Remote Wind Farm Locations
Many wind farms operate in mountains, deserts, or offshore locations.
A compact switchgear design simplifies transportation and installation. RMUs also reduce maintenance requirements in difficult environments.
Reducing Downtime and Maintenance Costs with RMUs
Downtime directly affects wind farm profitability.
Modern ring main unit systems improve fault isolation and reduce repair time. They also lower maintenance costs because modular designs simplify servicing.
3. Types of Ring Main Units Used in Wind Power Applications
Gas Insulated Ring Main Units
Gas insulated RMUs use sealed insulation systems.
They offer compact size, high reliability, and strong environmental protection. These systems work well in offshore wind projects and harsh environments.
Air Insulated Ring Main Units
Air insulated ring main units use air as the insulation medium.
They simplify maintenance and reduce environmental concerns related to gas insulation. Many onshore wind farms use air insulated RMUs.
Compact RMUs for Offshore Wind Projects
Offshore wind farms require compact electrical equipment.
Compact switchgear systems reduce installation space and simplify transportation. They also improve corrosion resistance in marine environments.
Indoor vs Outdoor Ring Main Unit Configurations
Indoor RMUs operate inside substations or electrical rooms.
Outdoor ring main unit systems require higher IP protection levels because they face rain, dust, and temperature changes.
Fixed Type vs Extendable Ring Main Units
Fixed RMUs provide a simple and economical solution.
Extendable ring main unit systems allow future expansion. This flexibility supports growing renewable energy projects.
Smart Ring Main Units for Modern Wind Farms
Smart RMUs support digital monitoring and remote operation.
Operators can monitor electrical conditions in real time. This improves fault detection and maintenance efficiency.
4. How to Select the Right Ring Main Unit for Wind Power Projects
Choosing the Correct Voltage Rating and Current Capacity
Voltage and current ratings must match project requirements.
Most wind power systems use medium voltage distribution networks between 11kV and 36kV. Proper rating selection improves operational safety.
Environmental Factors in Wind Farm Installations
Wind farms often face difficult environmental conditions.
Humidity, dust, salt spray, and temperature changes affect RMU performance. Outdoor installations require stronger enclosure protection.
Selecting Suitable Protection and Switching Functions
Protection systems are very important in renewable energy networks.
Modern ring main unit systems may include:
● Vacuum circuit breakers
● Load break switches
● Relay protection
● Fault indicators
These functions improve system reliability and safety.
Importance of Compact Design and Modular Expansion
Compact switchgear systems save installation space.
Modular designs also simplify future expansion because operators can add new feeder units when needed.
Short-Circuit Withstand Requirements for RMUs
Short-circuit protection is critical in medium voltage switchgear systems.
The ring main unit must safely withstand electrical faults without damaging equipment or risking operator safety.
High-quality RMUs should also provide strong mechanical strength and stable insulation performance during fault conditions.
IEC Compliance and Safety Considerations
IEC 62271 is the main standard for medium voltage switchgear and ring main unit systems.
This standard defines requirements for insulation performance, switching capacity, temperature rise limits, internal arc protection, short-circuit withstand strength, and operational safety.
IEC 62271-200 is especially important for metal enclosed medium voltage switchgear used in renewable energy projects.
Many wind power projects also require CE, LVD, and EMC compliance because they improve international project approval and operational reliability.
The Low Voltage Directive (LVD 2014/35/EU) focuses on electrical safety during normal operation and single fault conditions. EMC compliance (2014/30/EU) helps reduce electromagnetic interference (EMI) and improves immunity against external electromagnetic signals (EMS).
These requirements improve system stability, operator safety, and long-term equipment reliability in wind farm environments.
Common Mistakes When Choosing an RMU
Common RMU selection mistakes include:
● Incorrect voltage rating
● Poor environmental protection
● Limited expansion capacity
● Weak fault protection
● Insufficient short-circuit strength
These problems may increase downtime and maintenance costs.
5. Key Standards and Safety Requirements for Ring Main Units
IEC 62271 Standards for Medium Voltage Switchgear
IEC 62271 is the key standard for ring main unit systems.
It defines testing requirements for insulation, switching performance, temperature rise, short-circuit strength, and mechanical reliability.
IEC compliant RMUs improve operational safety and long-term reliability in wind power applications.
Internal Arc Classification (IAC) and Operator Safety
Internal arc faults create dangerous pressure and heat.
IAC tested ring main unit systems help protect operators during internal faults. They safely release pressure and reduce injury risks.
This protection is especially important in enclosed substations and wind farm power distribution systems.
Understanding IP Ratings for Wind Power Applications
IP ratings define enclosure protection capability.
For example:
● IP54 protects against dust and water splashes
● IP65 provides stronger environmental protection
Outdoor wind farm applications usually require higher IP ratings because they face harsh environmental conditions.
CE, LVD, and EMC Compliance for RMUs
CE marking supports international market access for ring main unit systems.
LVD requirements focus on electrical safety during normal operation and fault conditions. EMC compliance reduces electromagnetic interference and improves system stability.
Good EMC performance helps prevent communication interference and control system malfunction in wind farm applications.
These compliance requirements improve equipment reliability, operational safety, and project approval efficiency.
6. Installation and Maintenance Tips for Wind Power RMUs
Best Practices for RMU Installation in Wind Farms
Correct installation improves equipment lifespan and operational stability.
Install the ring main unit on a stable foundation and maintain proper ventilation around the equipment.
Cable Connection and Grounding Recommendations
Correct cable connections improve system safety.
Good grounding protects both equipment and operators during fault conditions. Organized cable routing also simplifies maintenance work.
Routine Inspection and Preventive Maintenance
Regular inspection reduces unexpected failures.
Maintenance teams should inspect:
● Cable connections
● Switch operation
● Protection relays
● Insulation condition
● Enclosure sealing
Preventive maintenance improves long-term reliability.
Common RMU Faults and Troubleshooting Tips
Common ring main unit faults include:
● Insulation failure
● Moisture ingress
● Relay malfunction
● Overheating
● Cable connection problems
Early detection reduces downtime and repair costs.
7. Future Trends in Ring Main Units for the Wind Power Industry
Smart Grid Integration and Digital RMUs
Modern wind farms increasingly use digital power systems.
Smart ring main unit systems support remote communication and automated fault management.
Eco-Friendly Insulation Technologies
Environmental protection is becoming more important.
Manufacturers now develop eco-friendly insulation technologies to reduce environmental impact and improve sustainability.
Remote Monitoring and Predictive Maintenance
Remote monitoring systems collect real-time operational data.
Predictive maintenance helps operators identify problems before major failures occur. This reduces downtime and maintenance expenses.
The Growing Role of RMUs in Renewable Energy Infrastructure
Renewable energy projects continue expanding worldwide.
Ring main unit systems will remain important because they support reliable medium voltage distribution in modern power networks.
Conclusion
Ring main unit systems provide reliable and safe medium voltage distribution for the wind power industry.
RMUs improve power continuity, reduce downtime, and support flexible renewable energy networks. Compact switchgear designs also simplify installation and maintenance in remote wind farm locations.
When selecting a ring main unit, project teams should consider voltage rating, environmental conditions, IEC compliance, and future expansion needs.
A high-quality RMU improves wind farm reliability, operational safety, and long-term energy performance.
FAQ
Q: What is a ring main unit used for?
A: It controls and protects medium voltage power distribution systems.
Q: Why are RMUs important in wind farms?
A: They improve power reliability and reduce downtime in remote locations.
Q: Which standard applies to RMUs?
A: IEC 62271 is the main standard for medium voltage ring main units.
Q: What is the difference between air insulated and gas insulated RMUs?
A: Gas insulated RMUs are more compact, while air insulated RMUs simplify maintenance.
