Introduction
Distribution panel systems play an important role in modern electrical distribution networks. A distribution panel, also called a power distribution board or electrical panel, helps distribute electrical power safely and efficiently.
Many people confuse a main panel with a distribution panel because both manage electrical power. However, their functions, structures, and applications are different.
This guide explains the key differences between main panels and distribution panels. It also covers panel components, IEC standards, safety requirements, and selection tips for industrial and commercial projects.
1. What Is a Main Panel and a Distribution Panel?
Definition of a Main Panel
A main panel receives incoming electrical power from the utility source.
It controls the primary power supply and distributes electricity to sub-panels or branch circuits. Main panels usually include the main circuit breaker and metering devices.
Definition of a Distribution Panel
A distribution panel distributes electrical power to different electrical loads.
It protects branch circuits and supports safe electrical operation inside buildings, factories, and infrastructure projects.
Many people also call it a power distribution board or electrical distribution board.
Main Functions of Each Electrical Panel
The main panel manages the entire electrical system.
The distribution panel manages local circuit distribution and protection. It also improves electrical organization and operational flexibility.
How Main Panels and Distribution Panels Work Together
Main panels and distribution panels operate together inside electrical systems.
The main panel receives incoming power, while distribution panels supply electricity to lighting, motors, machinery, and equipment.
This structure improves safety and simplifies maintenance work.
2. Main Panel vs Distribution Panel: Key Differences Explained
Difference in Power Distribution Functions
The main panel controls the primary incoming power source.
The distribution panel distributes power to secondary circuits and electrical loads.
Both panels support electrical distribution, but their operational responsibilities are different.
Difference in Installation Location
Main panels usually install near the utility connection point.
Distribution panels install closer to local electrical loads because they reduce cable length and improve power management.
Difference in Incoming and Outgoing Power Capacity
Main panels handle larger electrical loads and higher incoming current.
Distribution panels handle smaller branch circuits and local electrical equipment.
Difference in Protection and Control Functions
Main panels include the primary disconnect and overall protection functions.
Distribution panels provide branch circuit protection and local electrical control.
Modern electrical panels may also include monitoring systems and smart protection devices.
Difference in Panel Size and Structure
Main panels often use larger cabinet structures.
Distribution panel systems usually offer compact designs because they serve localized electrical distribution applications.
Compact electrical panels simplify installation in limited spaces.
Difference in Maintenance and Expansion Capability
Distribution panels support easier expansion and maintenance.
Operators can add new circuits without affecting the entire electrical system. This flexibility benefits industrial and commercial facilities.
Difference in Typical Industrial and Commercial Applications
Main panels commonly support utility connections and large facilities.
Distribution panels support manufacturing plants, offices, renewable energy systems, hospitals, and infrastructure projects.

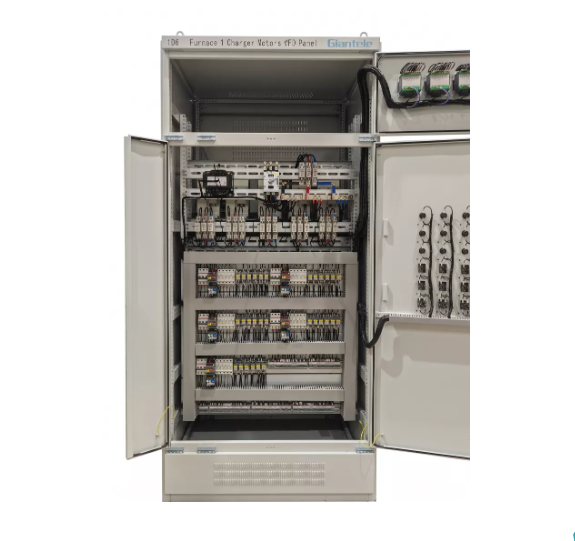

3. Components Inside a Main Panel and Distribution Panel
Circuit Breakers and Protection Devices
Circuit breakers protect electrical systems from overload and short-circuit conditions.
Modern electrical panels may include:
● MCCBs
● MCBs
● ACBs
● Protection relays
These devices improve operational safety and equipment protection.
Busbars and Power Distribution Systems
Busbars distribute electrical power inside the panel.
Copper or aluminum busbars improve current carrying performance and reduce heat generation.
Proper busbar design improves system reliability.
Metering and Monitoring Components
Many distribution panel systems include monitoring devices.
Operators can monitor voltage, current, energy consumption, and fault conditions in real time.
Smart monitoring improves energy management and operational efficiency.
Cable Connections and Grounding Systems
Correct cable connections improve electrical stability and safety.
Grounding systems protect equipment and personnel during fault conditions. Organized cable routing also simplifies maintenance.
4. How to Choose the Right Distribution Panel for Your Project
Evaluating Power Load Requirements
Correct load calculation is very important.
Engineers should evaluate current demand, connected equipment, and future expansion requirements before selecting a distribution panel.
Choosing the Correct Voltage and Current Ratings
Voltage and current ratings must match project requirements.
Incorrect panel ratings may cause overheating, equipment damage, and operational instability.
Indoor vs Outdoor Distribution Panel Selection
Indoor distribution panels operate inside electrical rooms or protected environments.
Outdoor electrical panels require higher enclosure protection because they face rain, dust, humidity, and temperature changes.
Importance of Future Expansion Capacity
Future expansion planning improves long-term flexibility.
A modular distribution panel design allows additional circuits and equipment upgrades without major modifications.
Selecting Suitable IP Protection Levels
IP ratings define enclosure protection capability.
For example:
● IP30 supports indoor applications
● IP54 protects against dust and water splashes
● IP65 provides stronger outdoor protection
Higher IP ratings improve reliability in harsh industrial environments.
Short-Circuit Withstand Requirements
Electrical panels must safely withstand short-circuit conditions.
Strong mechanical structure and proper busbar design improve fault resistance and operational safety.
Temperature rise control is also very important because high operating temperatures may reduce equipment lifespan and electrical stability.
IEC Compliance and Safety Standards
IEC 61439 is the key standard for low voltage distribution panel systems.
IEC 61439-1 defines general requirements such as insulation performance, temperature rise limits, enclosure protection levels, and mechanical strength.
IEC 61439-2 focuses on power switchgear and distribution panels operating under high current conditions and short-circuit stress.
IEC 61439-3 applies to distribution boards operated by ordinary personnel and focuses more on protection against electric shock.
Many international projects also require CE, LVD, and EMC compliance because these standards improve safety and operational reliability.
The Low Voltage Directive (LVD 2014/35/EU) focuses on electrical safety during normal operation and single fault conditions.
EMC compliance (2014/30/EU) reduces electromagnetic interference (EMI) and improves immunity against external electromagnetic signals (EMS).
Good EMC performance helps prevent communication interference and control system malfunction.
These requirements improve equipment stability, operational reliability, and operator safety.
5. Key Standards and Safety Requirements for Electrical Panels
IEC 61439 Standards for Distribution Panels
IEC 61439 defines technical requirements for low voltage electrical panels.
The standard covers:
● Temperature rise
● Insulation performance
● Mechanical strength
● Short-circuit withstand capability
● Internal electrical safety
● Enclosure protection levels
IEC compliant distribution panels improve operational reliability and long-term performance.
Understanding CE, LVD, and EMC Requirements
CE marking supports international market access for electrical panels.
LVD requirements improve electrical safety, while EMC standards reduce electrical interference and improve equipment stability.
Good EMC performance helps prevent communication problems and control system malfunction.
These compliance requirements are important for industrial, commercial, and infrastructure power distribution systems.
Importance of IP Ratings in Electrical Panels
IP ratings protect electrical panels from environmental conditions.
Industrial environments often require stronger protection against dust, moisture, and water ingress.
Correct IP selection improves equipment lifespan and operational reliability.
Temperature Rise and Mechanical Strength Requirements
Electrical panels generate heat during operation.
Good ventilation and strong mechanical design improve temperature control and structural stability.
Proper temperature management improves equipment lifespan and electrical safety.
Strong panel structures also improve short-circuit withstand capability during fault conditions.
6. Common Applications of Main Panels and Distribution Panels
Industrial Manufacturing Facilities
Factories require stable electrical distribution systems.
Distribution panels support machinery, motor control systems, and industrial automation equipment.
Commercial Buildings and Offices
Commercial buildings use electrical panels for lighting, HVAC systems, elevators, and office equipment.
Reliable electrical distribution improves operational efficiency.
Renewable Energy and Power Distribution Systems
Renewable energy projects use distribution panels for solar power systems, wind farms, and energy storage systems.
Modern power distribution boards improve energy management and operational flexibility.
Infrastructure and Utility Projects
Infrastructure projects require reliable electrical systems.
Distribution panels support airports, railways, hospitals, and utility facilities because these applications demand continuous power supply.
7. Installation and Maintenance Tips for Distribution Panels
Best Practices for Electrical Panel Installation
Correct installation improves safety and operational stability.
Install the distribution panel on a stable surface and maintain sufficient ventilation space around the cabinet.
Cable Management and Grounding Recommendations
Organized cable management simplifies maintenance work.
Good grounding protects both personnel and electrical equipment during fault conditions.
Routine Inspection and Preventive Maintenance
Routine inspection reduces unexpected failures.
Maintenance teams should inspect:
● Circuit breakers
● Busbar connections
● Insulation condition
● Grounding systems
● Ventilation systems
Preventive maintenance improves long-term reliability.
Common Distribution Panel Problems and Troubleshooting Tips
Common electrical panel problems include:
● Loose cable connections
● Overheating
● Moisture ingress
● Insulation failure
● Circuit breaker malfunction
Early troubleshooting reduces downtime and maintenance costs.
Conclusion
Main panels and distribution panels both support modern electrical distribution systems, but their functions are different.
Main panels manage incoming power supply, while distribution panels control branch circuit distribution and local electrical loads.
Correct distribution panel selection improves operational safety, power reliability, and maintenance efficiency.
Project teams should consider IEC compliance, IP protection, load requirements, and future expansion needs before choosing an electrical panel solution.
FAQ
Q: What is a distribution panel?
A: It distributes electrical power to multiple branch circuits safely.
Q: What is the difference between a main panel and a distribution panel?
A: A main panel receives incoming power, while a distribution panel supplies sub-circuits.
Q: Which standard applies to distribution panels?
A: IEC 61439 is the key standard for low voltage distribution panels.
Q: Why is IP protection important for electrical panels?
A: IP ratings protect panels from dust, moisture, and environmental damage.
