Introduction
A high-voltage Electrical Distribution Panel may continue operating even while loose joints, contaminated insulation, worn interlocks, or deteriorating cable terminations develop inside. These defects can eventually cause abnormal heating, nuisance tripping, insulation failure, or an unplanned shutdown. Effective inspection therefore requires more than checking whether the cabinet looks clean. It should combine safe preparation, compartment-by-compartment examination, mechanical verification, electrical testing, and traceable documentation. This checklist explains how to inspect an Electrical Distribution Panel systematically and turn each finding into a practical maintenance decision.
Prepare the Electrical Distribution Panel for Inspection
Every inspection should begin with a clearly defined scope. Record the panel identification, installation location, rated voltage, feeder purpose, connected equipment, normal load, and operating condition. Review the single-line diagram, control schematic, protection settings, previous test results, fault history, maintenance records, and open corrective actions.
This preparation helps the inspection team recognize recurring problems. For example, repeated overheating on the same phase may indicate a connection or load-distribution issue rather than an isolated surface defect. A breaker that has previously shown slow operation should receive more attention than a similar unit with a stable service history.
The inspection plan should also state whether the Electrical Distribution Panel will remain energized or be completely isolated. Energized observations may include external temperature scanning, noise assessment, meter readings, alarm review, and checks for unusual odor or vibration. Internal access should only occur under an approved electrical safety procedure.
Before opening the enclosure, qualified personnel should identify every possible energy source. These may include incoming feeders, secondary supplies, control power, capacitors, stored spring energy, auxiliary voltage, and potential backfeeds. The isolation process should include:
Disconnecting the identified power sources
Applying the required locks and tags
Releasing or securing stored mechanical and electrical energy
Testing for the absence of voltage
Applying grounding where the site procedure requires it
Preventing unauthorized re-energization
Do not assume that a control switch, indicator lamp, interlock, or open circuit breaker confirms complete isolation. The condition must be verified using the approved test method.
The surrounding room is part of the inspection scope. Check for blocked access, insufficient lighting, water leakage, condensation, excessive dust, corrosive contamination, pest activity, damaged ventilation, or materials stored too close to the equipment. Environmental problems often affect several panels at once and can cause recurring insulation or corrosion defects if the original source is not corrected.
Inspect the Enclosure and Internal Compartments
A consistent Electrical Distribution Panel inspection should follow the physical arrangement of the equipment. Moving from the enclosure to each internal compartment reduces the risk of missing a component and makes the final report easier to review.
Inspection Area | Main Checks | Typical Warning Signs |
|---|---|---|
Enclosure | Doors, panels, hinges, seals, windows, vents, fasteners, paint, and alignment | Corrosion, distortion, loose hardware, damaged seals, blocked airflow, or moisture trails |
Identification | Nameplates, feeder labels, warning signs, mimic diagrams, and operating instructions | Missing labels, incorrect feeder names, unreadable ratings, or outdated drawings |
Busbar area | Joints, supports, insulation surfaces, phase separation, barriers, and clearances | Discoloration, contamination, cracked supports, loose joints, or tracking marks |
Breaker compartment | Contacts, shutters, rollers, guides, racking mechanism, position indicators, and lubrication | Binding, incomplete movement, excessive wear, damaged contacts, or hardened lubricant |
Cable compartment | Terminations, glands, supports, stress-control components, earthing connections, and clearances | Heat damage, cracked insulation, corrosion, movement, contamination, or discharge marks |
Control area | Relays, meters, terminal blocks, auxiliary contacts, coils, wiring, heaters, and control supply | Loose wires, alarm indications, damaged insulation, overheated terminals, or failed heaters |
Earthing and interlocks | Earth bar, bonding conductors, earthing switch, mechanical locks, keys, and permissive functions | Loose bonds, bypassed interlocks, incorrect sequence, or failure to reach the intended position |

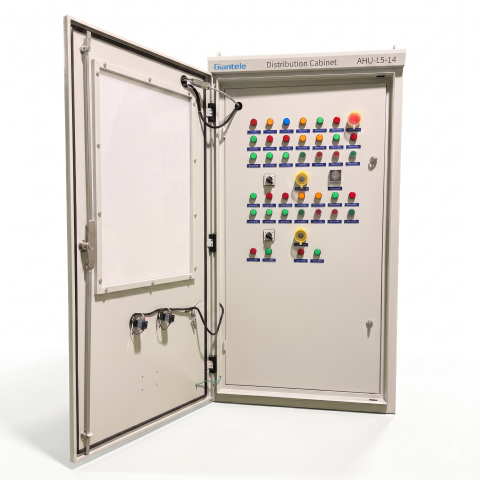

Start with the enclosure. Confirm that each door opens and closes correctly without excessive force. Check that panel sections remain aligned and that removable covers are secure. Rust around the base, roof joints, ventilation openings, or cable entries may indicate moisture penetration rather than a simple cosmetic problem.

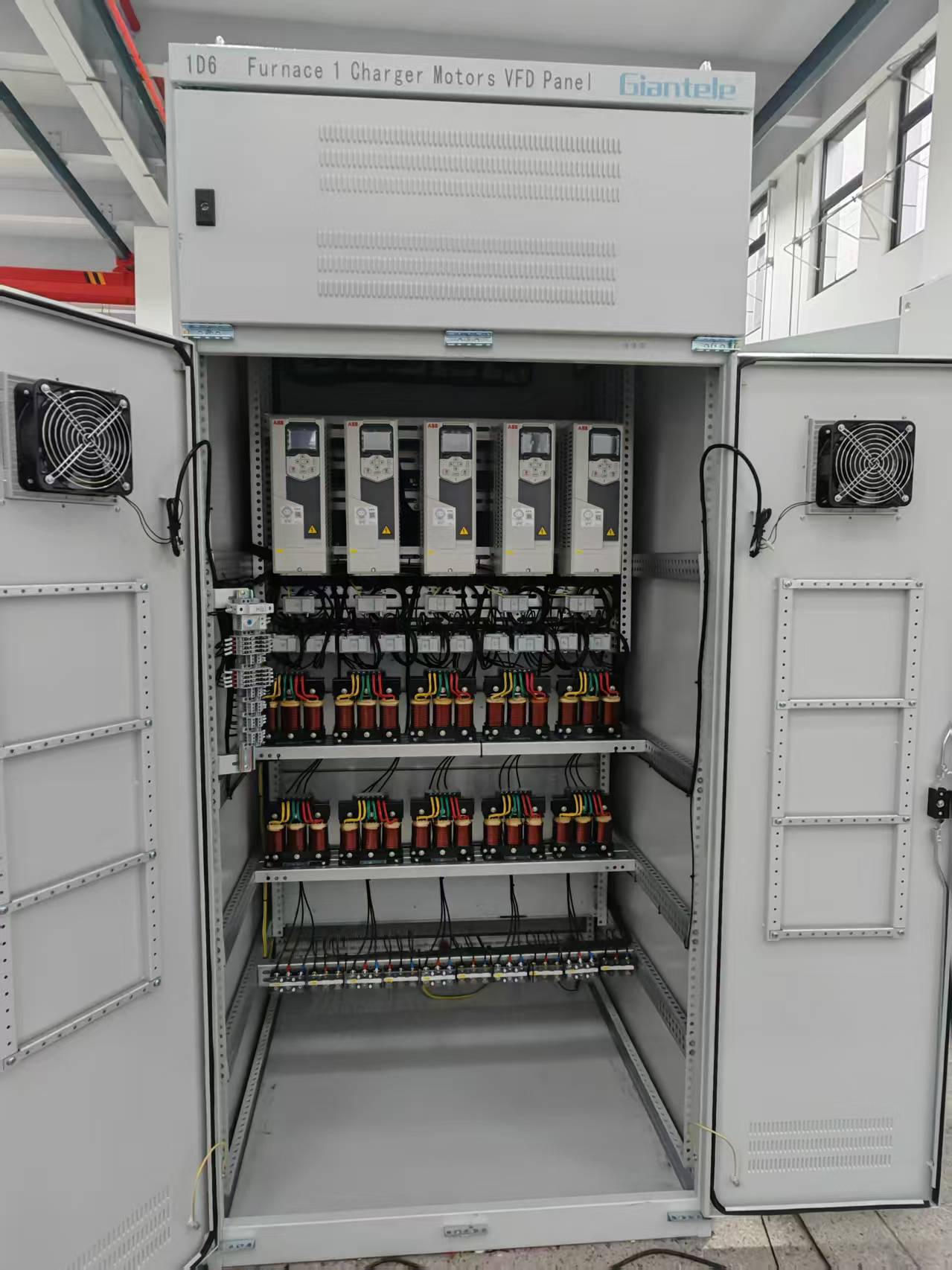

Inside the Electrical Distribution Panel, look for physical evidence of deterioration. Brown or darkened surfaces may indicate overheating. Green, white, or powdery deposits may indicate corrosion. Carbonized paths, pitting, or surface erosion may indicate discharge activity. Cracked insulation supports, displaced barriers, or foreign materials require further evaluation before the equipment is returned to service.
The 40.5kV Metal-Clad Switchgear uses separate handcart, busbar, cable, and relay compartments. Its layout allows an inspector to record the precise location of a defect instead of describing the entire cabinet as damaged or overheated. The product also supports closed-door switching operations, so door mechanisms, position indicators, and operating interfaces should remain aligned and functional.
Withdrawable equipment needs additional mechanical attention. The 12–24kV Metal-Clad Switchgear has separate busbar, circuit-breaker, cable, and relay instrument compartments, together with a withdrawable handcart arrangement. During an isolated inspection, verify smooth movement between the defined positions, dependable shutter operation, correct position indication, and proper interlock engagement. Do not force a handcart that binds, because misalignment may damage contacts, guides, shutters, or drive components.
Check Mechanical Operation and Safety Interlocks
Mechanical defects can remain hidden while the Electrical Distribution Panel is carrying load normally. Problems may only become apparent when a breaker must trip, close, rack out, or move into an earthing position. Functional checks are therefore essential during a planned outage.
Operate the mechanism only according to the equipment instructions and approved site procedure. Check for unusual resistance, delayed movement, incomplete travel, abnormal noise, loose linkages, damaged springs, worn rollers, or indicators that do not agree with the actual mechanical position.
Inspect breaker contacts and accessible connection surfaces for wear, pitting, contamination, discoloration, or deformation. Lubrication should be limited to the approved points and should use the specified product. Applying unsuitable grease can attract dust, damage insulating materials, or interfere with contact performance.
The interlock sequence should be tested step by step. A properly functioning system should prevent unsafe operating combinations, such as moving withdrawable equipment while the switching device is in an incompatible position or accessing a compartment under prohibited conditions. Never bypass an interlock merely to complete an inspection.
For the Electrical Distribution Panel, document both successful and unsuccessful operations. A statement such as “interlock checked” provides little diagnostic value. A stronger record identifies the tested sequence, initial equipment position, attempted action, expected result, actual result, and any abnormal mechanical effort.
Earthing components also need close examination. Inspect the earth bar, bonding straps, door bonds, earthing-switch contacts, operating linkage, and connection points for looseness, corrosion, heat damage, or mechanical distortion. Confirm that position indicators correspond with the actual earthing-switch position.
The 35kV SF6 Ring Main Unit uses a fixed metal-enclosed design with an SF6 load switch and a five-prevention mechanical interlocking arrangement. Inspection should cover the accessible enclosure, operating mechanism, interlock sequence, cable connection area, earthing components, and manufacturer-provided indications. Any suspected problem involving the sealed insulation system should be handled under the applicable equipment procedure rather than by opening or modifying the sealed assembly during routine inspection.
Use Electrical Tests to Identify Hidden Defects
Visual and mechanical checks cannot reveal every condition inside an Electrical Distribution Panel. A joint may look normal while resistance is increasing. Insulation may appear clean while its electrical performance is deteriorating. Protection wiring can also remain intact visually while producing an incorrect trip or alarm response.
Infrared thermography is useful during energized operation because it can reveal abnormal temperature patterns at breaker poles, bus joints, cable terminations, auxiliary terminals, and accessible connections. Record the load, ambient conditions, component location, phase, thermal image, and comparison point.
Avoid evaluating a hot spot from temperature alone. The result should be compared with equivalent phases or similar components under comparable loads. Possible causes include loose or corroded joints, damaged contact surfaces, insufficient contact pressure, load imbalance, harmonic current, poor ventilation, or deterioration inside a concealed connection.
During an outage, the Electrical Distribution Panel maintenance plan may include:
Insulation-resistance measurement
Main-circuit or contact-resistance testing
Circuit-breaker timing and travel checks
Trip-and-close circuit verification
Control-circuit continuity testing
Protection-relay functional testing
Current-transformer and voltage-transformer circuit checks
Mechanical and electrical interlock verification
Testing should follow the equipment instructions and the approved maintenance program. Test voltage, connection configuration, environmental conditions, instrument identification, and calibration status should be recorded so that future results can be compared correctly.
Trend analysis is usually more valuable than one isolated result. A gradual increase in contact resistance, a recurring thermal difference, or declining insulation readings may reveal deterioration before the value reaches an action limit. For that reason, each Electrical Distribution Panel should have a consistent test history rather than disconnected reports using different names, methods, or measurement locations.
After testing, restore all temporary connections and protection settings carefully. Confirm that test leads, grounds, tools, temporary jumpers, and diagnostic devices have been removed before the enclosure is closed.
Classify Defects and Verify Corrective Work
An inspection report should convert observations into decisions. Every Electrical Distribution Panel defect should include an exact location, description, supporting photograph or measurement, probable consequence, recommended action, responsible person, and completion date.
Priority | Typical Condition | Response |
|---|---|---|
Critical | Active arcing, smoke, severe insulation damage, unsafe exposed parts, or failure of essential protection | Follow emergency procedures and isolate the affected equipment where required |
High | Abnormal connection heating, tracking marks, damaged shutters, unreliable breaker movement, or failed interlocks | Repair before continued critical operation or during the nearest approved outage |
Moderate | Contamination, localized corrosion, condensation, stiff mechanisms, or deteriorating control wiring | Schedule corrective maintenance and monitor for progression |
Low | Cosmetic damage that does not affect safety, enclosure integrity, identification, or operation | Record the condition and review it during the next inspection |
Avoid applying one universal acceptance value to every Electrical Distribution Panel. The significance of a measurement depends on component design, loading, ambient temperature, measurement method, operating history, and the applicable equipment instructions.
Correct the cause rather than only the visible symptom. Cleaning contaminated insulation without stopping moisture ingress will allow the defect to return. Retightening an overheated connection without examining the contact surfaces may leave damaged material in service. Replacing a breaker coil without checking the control supply may not solve intermittent operation.
After corrective work, repeat the checks related to the original defect. A repaired joint may require another resistance measurement or thermal review. An adjusted mechanism should complete its full operating sequence without abnormal effort. A wiring repair should be followed by continuity and functional verification.
Before energization, confirm that all compartments are clean, covers are secured, doors are closed, tools are removed, grounding arrangements have been restored to the required operating condition, protection settings are correct, and the Electrical Distribution Panel status matches the approved switching plan.
Set Inspection Frequency and Maintain Traceable Records
There is no single inspection interval suitable for every Electrical Distribution Panel. Frequency should reflect equipment age, operating duty, loading, switching frequency, environmental conditions, fault history, service importance, previous defects, and equipment instructions.
A practical program may combine routine external walkdowns, scheduled energized condition checks, and detailed internal inspections during planned shutdowns. Additional inspection should follow transportation, installation, a major fault, flooding, unusual alarms, protection changes, significant load changes, or extensive repair.
Use the same naming system for compartments, phases, feeders, breakers, and cable terminations in every report. Consistent identification allows engineers to compare thermal images, test readings, defect photographs, and corrective actions over time.
Each record should include:
Equipment identification and location
Date, time, and inspector names
Energized or isolated condition
Operating load and environmental conditions
Visual and mechanical findings
Test methods and measured results
Photographs and thermal images
Defect priority and recommended action
Repair owner and target date
Post-repair verification status
A well-maintained Electrical Distribution Panel history helps maintenance teams distinguish stable conditions from developing problems and supports better outage planning, spare-parts preparation, and lifecycle decisions.
Conclusion
A reliable Electrical Distribution Panel inspection combines safe isolation, systematic compartment checks, mechanical verification, diagnostic testing, defect prioritization, and traceable follow-up. Inspectors should focus on how each condition affects insulation, current carrying, protection, interlocking, and future maintenance rather than judging the cabinet by appearance alone.
