IP54 as standard — dust-tight and protected against water splashes. IP55 available for outdoor kiosks and washdown areas. Powder-coated steel enclosure with forced ventilation and filtered intakes. Cooling designed for the drive heat dissipation, not generic cabinet ventilation. Ambient temperature up to 45 degrees Celsius without derating. Optional anti-condensation heaters for humid environments.
We build VFD panels from 0.75kW for small pumps up to 500kW for large industrial compressors. Input voltage options are 380V, 400V, 480V, and 690V three-phase. We size the drive, breakers, contactors, and cables to your specific motor nameplate data. Altitude derating applied for sites above 1000 meters. Overload duty cycle factored into component selection.
These are different names for the same product. A VSD Control Panel emphasizes the variable speed drive function — common in mechanical and HVAC engineering. An Inverter Control Panel is the term used in many Asian and Middle Eastern markets. Both describe a factory-built panel containing a variable frequency drive, protection devices, and control interface. The technical standard is IEC 61800 for all three naming conventions.

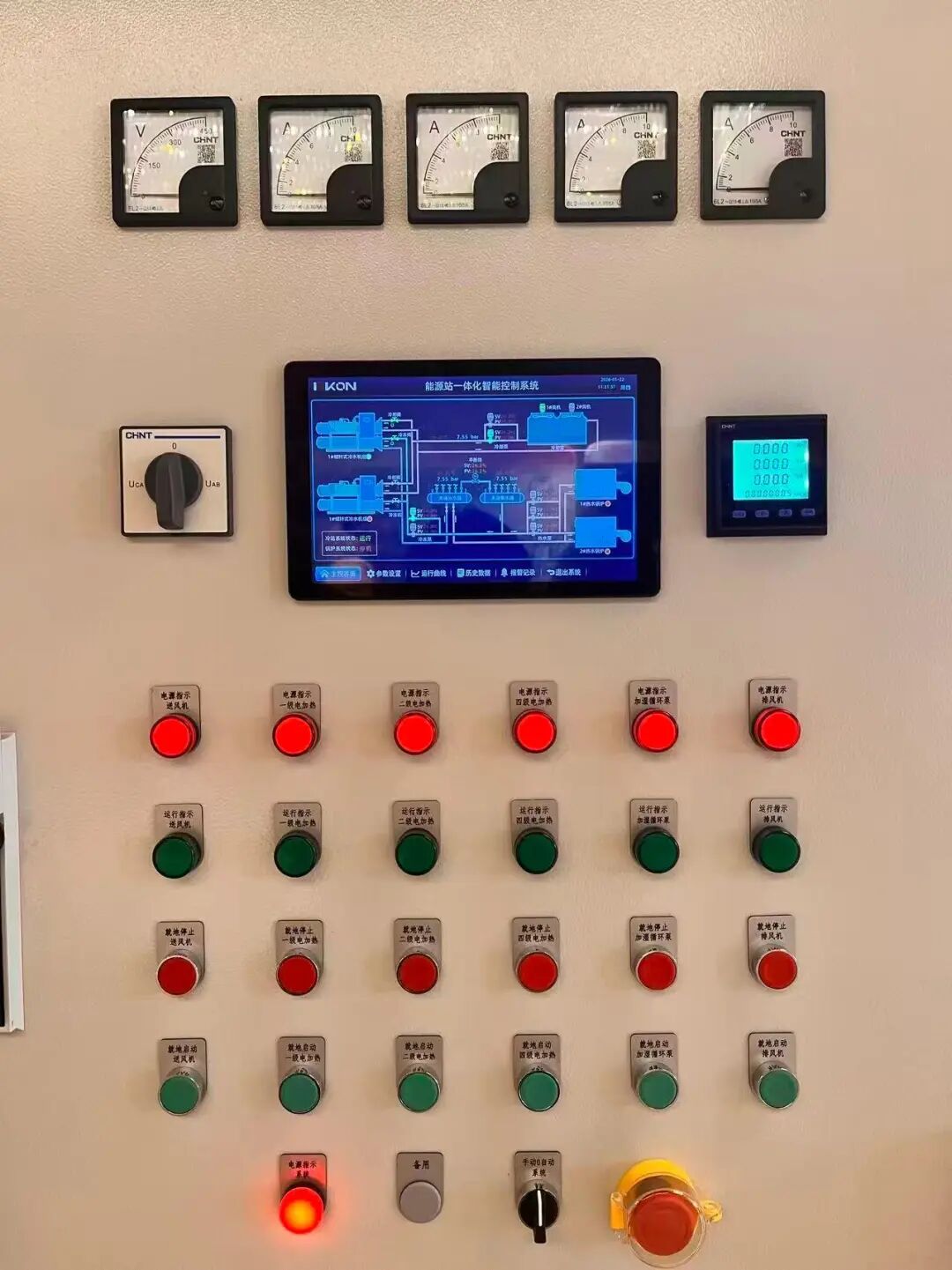

Yes. A vfd remote control panel communicates via Modbus RTU, Profibus, or Ethernet/IP as standard. The panel vfd interface includes an HMI touchscreen for local control and communication ports for remote monitoring. Operators adjust setpoints, monitor motor current, and receive fault alarms from the control room. No walking to the panel in the middle of the night.

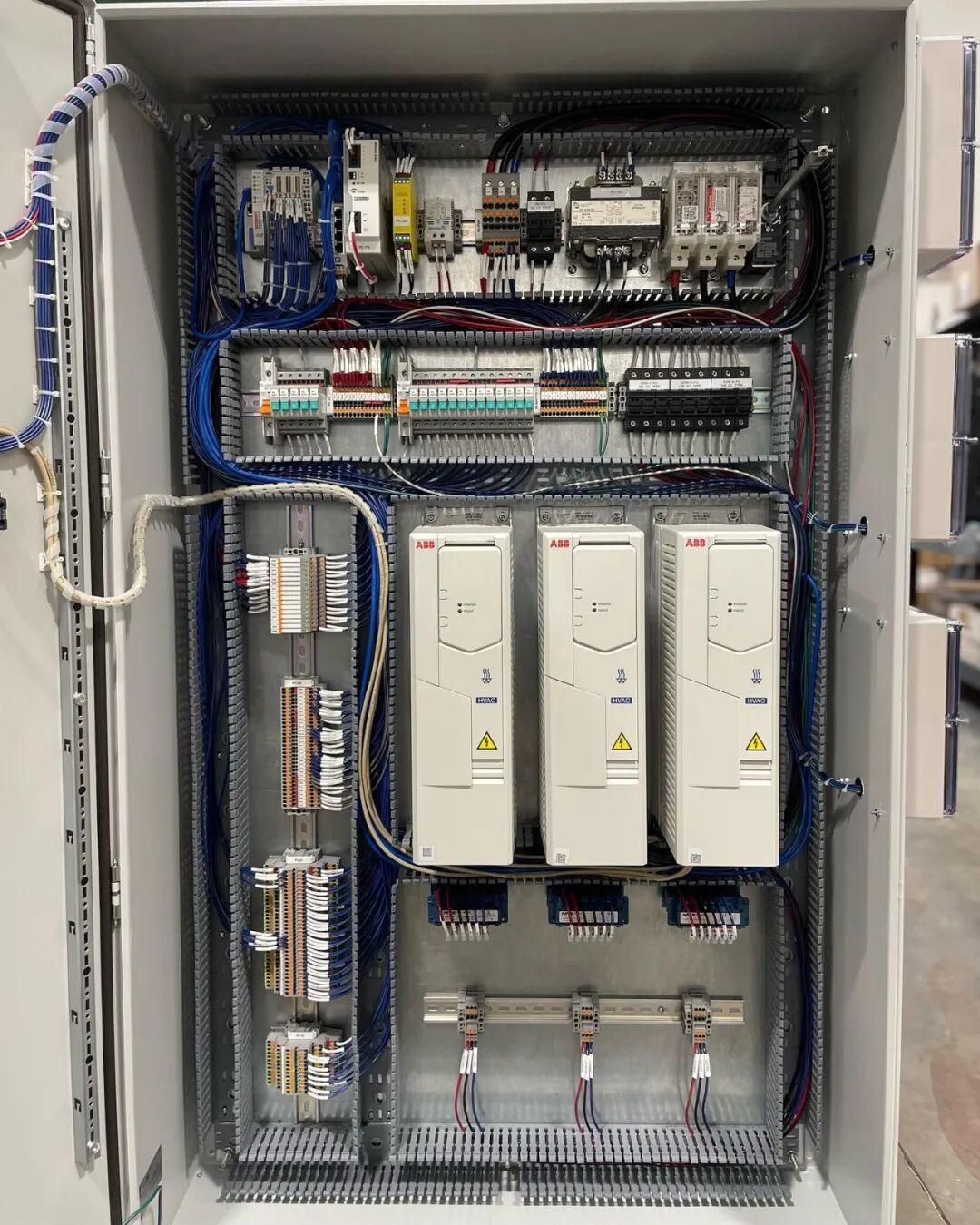

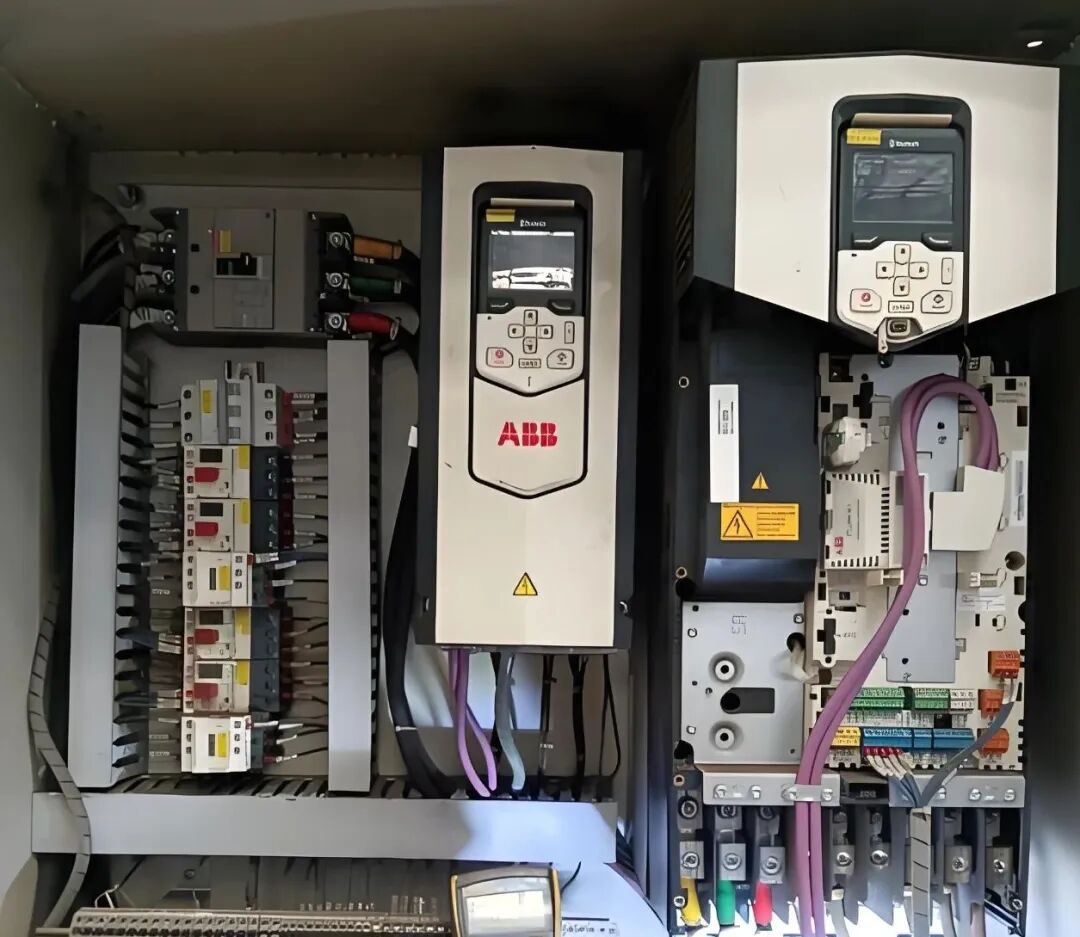

Every VFD control panel includes input circuit breaker, output contactor, electronic overload relay, and control fuses. The vfd panel board layout segregates power wiring from control wiring to prevent electromagnetic interference. Cooling fans with filtered intakes maintain safe drive temperature. Door interlock prevents access while power is on. All wiring is torque-marked and verified during factory testing. No shortcuts, no missing components.
A vfd drive panel controls motor speed continuously by varying frequency and voltage. A soft starter only limits inrush current during startup then runs at full speed. On variable loads like pumps and fans, vfd panels save 30 to 50 percent on energy costs. Soft starters save nothing. If your motor runs at variable loads, a VFD panel is the right choice. If it runs at constant speed and only needs reduced starting current, a soft starter costs less.
A VFD panel is a complete motor speed control enclosure containing a variable frequency drive, circuit breakers, contactors, and control interface. Unlike a direct-on-line starter that runs motors at full speed only, a vfd control panel varies output frequency to match the load. A pump at 80 percent speed draws roughly half the power. Our panels cover 0.75kW to 500kW at 380V to 690V, IP54/IP55 rated, CE certified and IEC 61800 compliant.
Here is something most buyers do not realize. A VFD panel that costs you 8,000 dollars today saves 30 to 50 percent on motor energy every year. Over a 10-year pump installation, the panel is essentially free. The real cost is buying one from a supplier who cuts corners on wiring, cooling, or compliance testing. That panel costs you downtime, not energy savings.
A vfd control panel converts fixed-frequency grid power into variable-frequency output. That lets you control motor speed from near zero to above rated speed. A pump running at 80 percent speed draws about 50 percent of full power. That is not a rough estimate — it is the affinity law. Speed cubed equals power. Small reduction, big savings.
The standard way to start a motor is direct-on-line. Full voltage, full speed, full inrush current. A VFD panel starts the motor gradually. No voltage sag on the grid. No water hammer in pipes. No belt slip on conveyors. For HVAC chillers and cooling tower fans that run at part load 80 percent of the time, a VFD panel pays back within 18 months.
A soft starter reduces inrush current at startup. That is all it does. Once the motor reaches full speed, the soft starter is bypassed and energy consumption goes back to 100 percent. A vfd drive panel controls speed continuously. On a 100kW fan running 16 hours a day, a 20 percent speed reduction saves roughly 30,000 kWh per year. A soft starter saves zero.
If your application runs at constant speed and only needs soft starting, buy a soft starter. It costs less. But if your load varies — pumps responding to demand, fans following temperature, compressors matching pressure — the VFD panel is the right choice. The energy savings alone justify the cost difference.
The enclosure matters as much as the drive inside. IP54 keeps out dust and splashing water. IP55 adds protection against water jets. For a pump room with occasional pipe leaks, IP54 works. For an outdoor kiosk or a food processing washdown area, go IP55.
Inside the enclosure, cooling fans and vent filters keep the drive unit within its rated temperature range. A VFD panel built without proper thermal management will trip on overtemperature by noon in summer. Look for forced ventilation with filtered intakes, not just a louvered door.
IEC 61800 is the international standard for adjustable speed electrical power drive systems. It covers EMC emissions, harmonic limits, safety requirements, and test methods. A VFD panel without IEC 61800 compliance can interfere with nearby instrumentation — flow meters, level sensors, PLC analog inputs. You spend weeks chasing ghost signals because the panel was never tested for electromagnetic compatibility.
You can find the full standard text on the IEC webstore. The International Electrotechnical Commission also publishes application guides. For additional reference on motor drive standards, IEEE standards complement the IEC framework with region-specific guidance. Ask your supplier for the IEC 61800 test report before you order. If they hesitate, find another supplier.
Our VFD panels cover 0.75kW fractional horsepower pumps all the way up to 500kW industrial compressors. Input voltage options are 380V, 400V, 480V, and 690V three-phase. The right size is not just matching the motor kW rating — you need to account for overload duty, ambient temperature, and altitude derating if your site is above 1000 meters.
Send us your motor nameplate data. Rated kW, rated current, service factor, and application type. We size the VFD, breakers, contactors, and cables. The panel arrives pre-wired and tested. Your electrician connects the incomer, the motor leads, and the control signals. Done.
A VFD panel with a remote control interface lets operators adjust setpoints from the control room. No need to walk to the panel. Modbus RTU or Profibus communication links the VFD to your SCADA system. The power distribution board handles the upstream supply. The VFD panel handles motor speed. Together they form a complete motor control solution.
These terms get thrown around interchangeably. A VSD Control Panel and an Inverter Control Panel both describe the same product: a panel containing a variable frequency drive with protection and control. The term VSD (variable speed drive) is more common in mechanical engineering circles. Inverter control panel is what many Asian and Middle Eastern markets call it. VFD (variable frequency drive) is the precise electrical engineering term. All three point to the same panel on the same factory floor.
Not every electrical panel shop knows VFDs. A VFD panel requires proper cable segregation — power cables away from control cables — or you get interference. It needs cooling designed for the drive heat dissipation, not generic cabinet ventilation. It needs harmonic mitigation if the drive is large relative to the supply transformer.
Ask for project references. A supplier with 50-plus country export experience has dealt with local grid codes, customs documentation, and after-sales support logistics. A 20,000 square meter factory with 200 people can handle volume orders without subcontracting your panels to an unknown third party. Demand the IEC 61800 test report. Read their warranty terms — a VFD panel is a long-term asset, not a consumable.
If your project uses a motor control center for group motor starting, the VFD panel integrates into that lineup. Add a power factor correction panel upstream if your drives create significant harmonic distortion. A panel supplier who understands the full system — not just the VFD — is worth more than a lower unit price.
A VFD panel board is not a commodity. Build quality varies dramatically between manufacturers. Look for copper busbar, segregated cable routing, forced ventilation, IEC 61800 compliance testing, and proper mechanical interlocking. If the panel costs suspiciously little, someone skipped something. That missing something will trip your motor at 2 AM on a Sunday.
Zhegui Electric builds VFD panels from 0.75kW to 500kW at 380V to 690V. IP54 and IP55 enclosures. CE certified. IEC 61800 compliant. Pre-wired, factory-tested, shipped to 50-plus countries. Send us your motor nameplate and application requirements. We send back a technical proposal within 48 hours.
