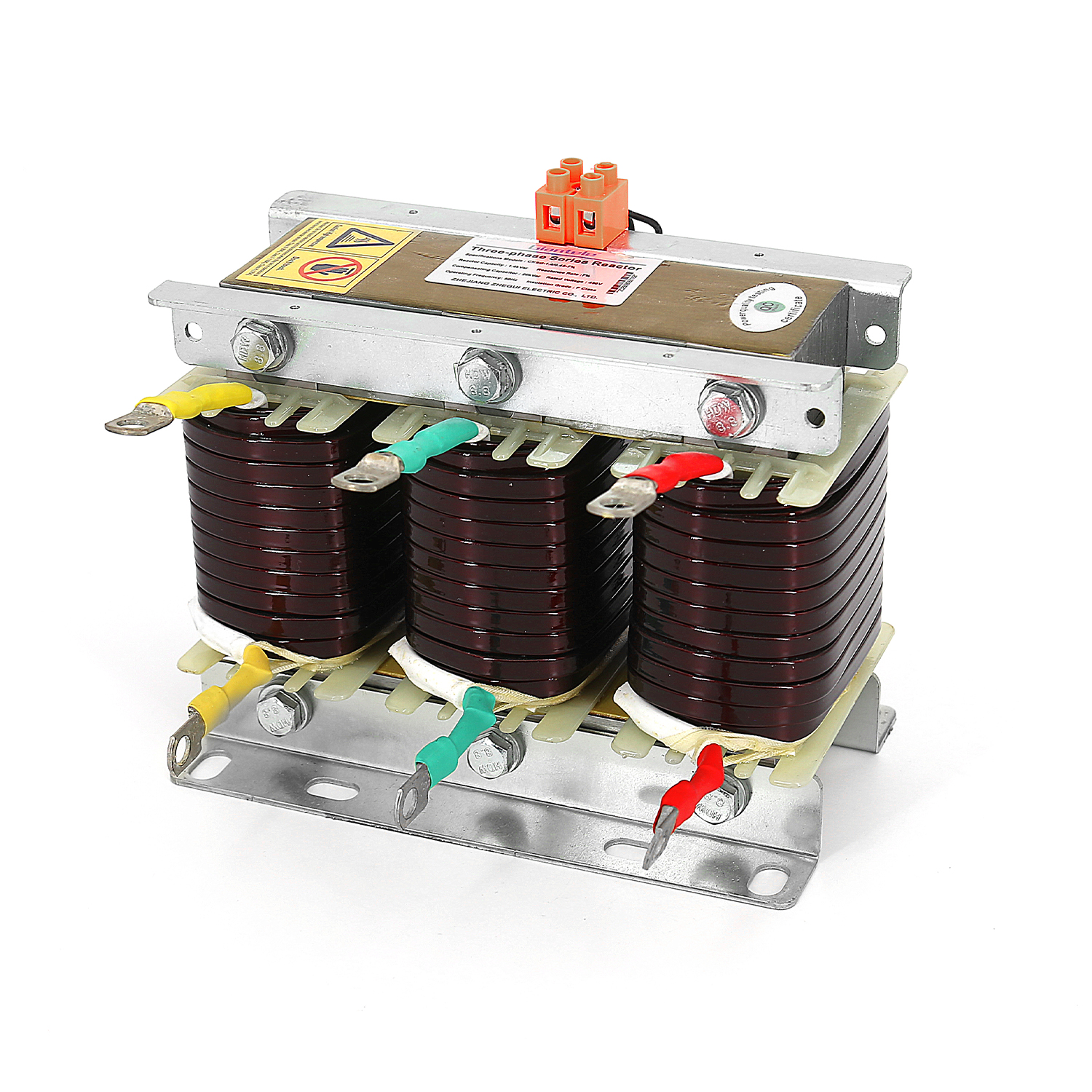

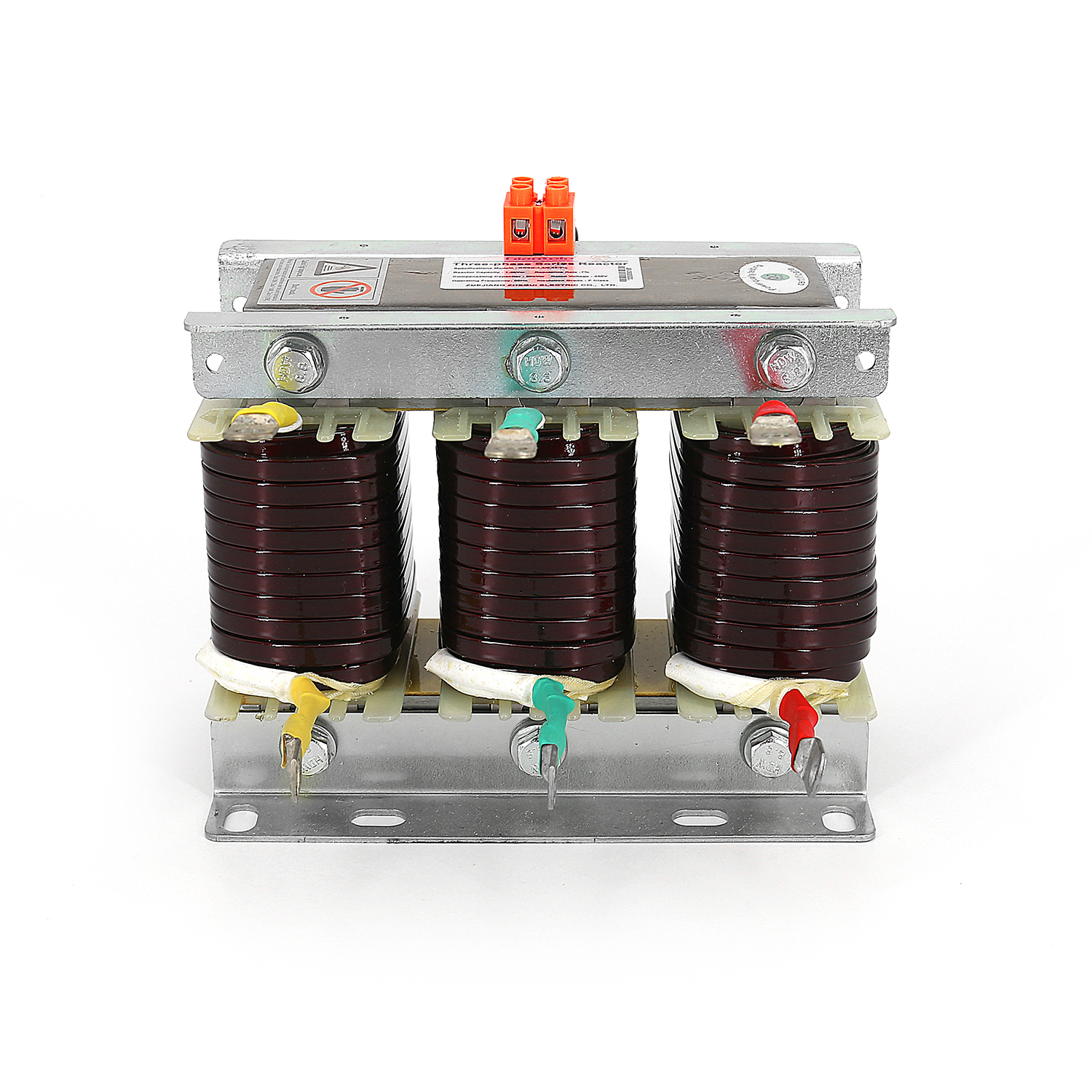

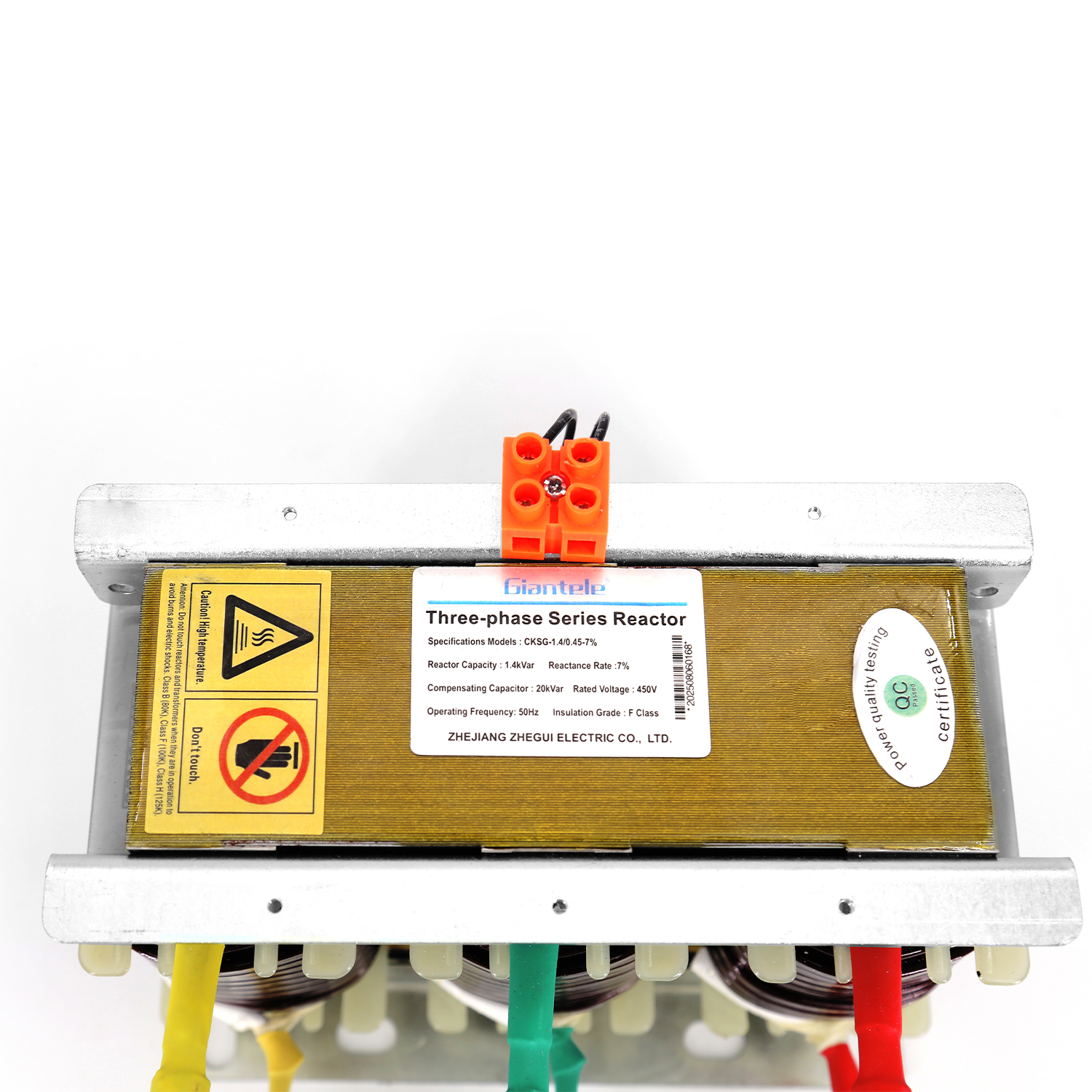

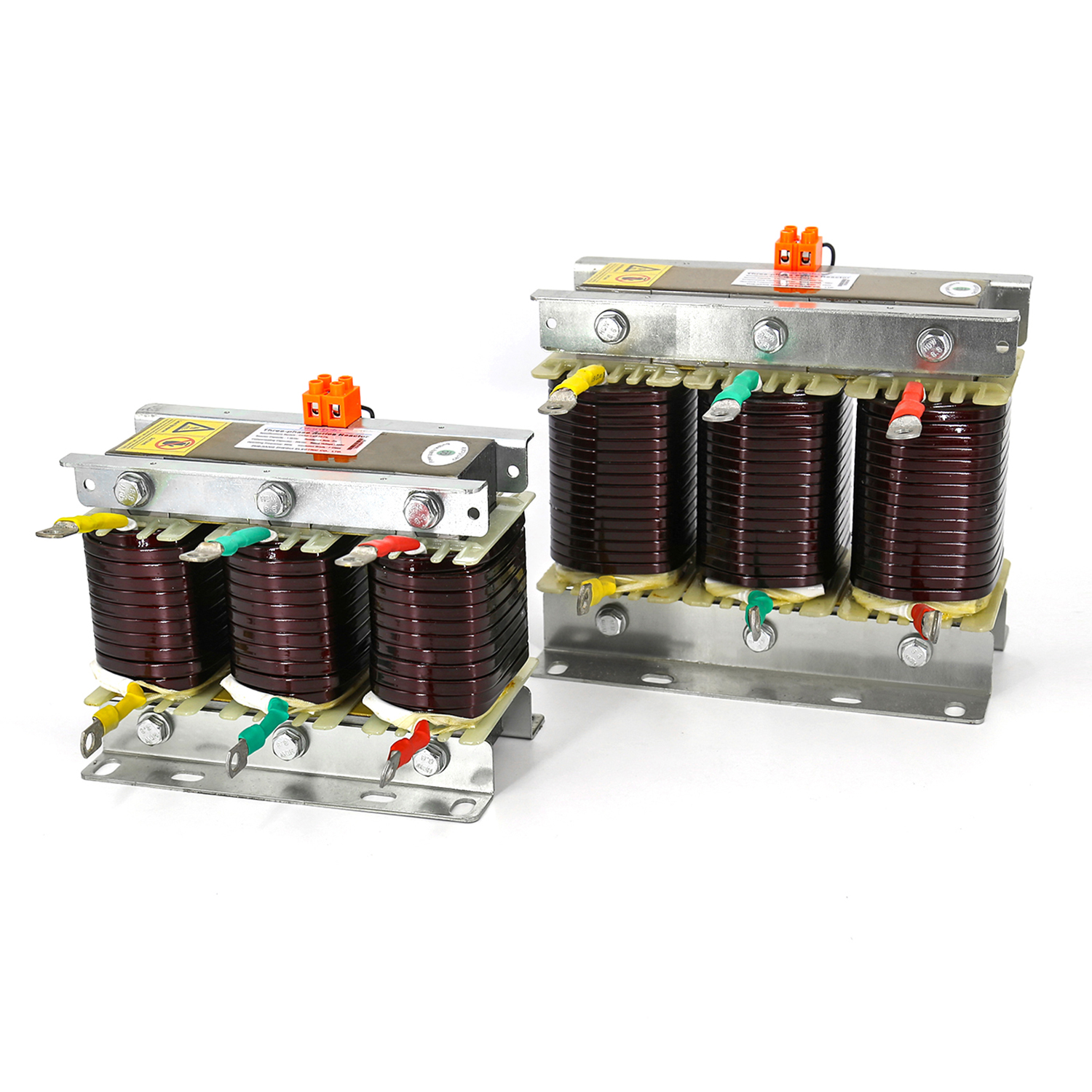

Detuned Reactor Harmonic Filter Reactor

Overview

The detuned reactor provides essential protection for your capacitor banks in industrial networks. This robust power factor correction reactor filters out dangerous currents and maintains peak equipment efficiency. You need this component because it prevents overheating and extends the service life of your capacitors. It delivers significant power quality improvement so your facility avoids expensive downtime or sudden failures.

Main technical indicators

• Can be used in 0.4KV, 0.45KV, 0.48KV, 0.525KV, 0.66KV, 0.69KV, 1.14KV;

• Types of reactance rate: 1%, 4.5%, 5.6%, 6%, 7%, 12%, 13%, 14%;

• Withstand voltage level: 3KV/min, insulation level: Level B, F, H,  noise<50dB, overload capacity<1.35 times continuous operation;

Product Features

• Advanced Harmonic Protection：This harmonic suppression reactor blocks high-frequency currents and protects your capacitors from thermal damage.

• Dynamic Stability Enhancement ：The unit strengthens your electrical system stability so that sensitive electronics remain safe from grid fluctuations

• Resonance Prevention Technology ：Our design avoids harmonic resonance but maintains high efficiency in heavy industrial environments

• Optimized Filter Performance ：Integrating this unit into your detuned filter circuit ensures clean power and reduces voltage distortion significantly

• High-Efficiency Energy Management ：You can achieve superior low voltage power factor correction because our low-loss silicon steel cores minimize energy waste

• Low Noise Operation ：The iron core uses premium silicon steel and undergoes specialized treatment to keep noise below 50 decibels.

• Durable Coil Construction ：We wind coils with high-grade insulated wire and apply vacuum varnishing to ensure long-term reliability.
