First, there should be specification. It will help the manufacturer know the actual operating environment and prevent sizing error and expensive rework.
Start with full-load amps. Even horsepower or kilowatt rating can come in handy, but it does not suffice. First of all, the VFD panel should match the current of the motor. Therefore, one should consider the motor nameplate.
One also needs to specify the voltage, frequency, and phases that coincide with those on the site. Verify the voltage from the power source and motor nameplate. One should also verify whether there is a single-phase or three-phase power supply. Otherwise, tripping, overheating, and even unsafe operation may happen.
After that, there is load type. Pumps and fans need variable torque, while conveyors, mixers, compressors, and crushers require constant torque. Overload capability is important when dealing with heavy loads.
Another thing to consider is speed range. Not all motors are able to operate at low speeds and may require additional cooling since its fan produces less airflow. The start-up and shut-down time should also match the process.
Control technique must be established right at the beginning. Controls could be keypad, button, or speed potentiometer controls. In big plants, there might be analog signals, PLC controls, or even remote control.
Lastly, you must consider the installation environment. Dust, humidity, heat, and corrosive atmosphere will impact the housing of the device. For hot or outdoor conditions, you will require better sealing.
Information to Confirm | What to Check | Why It Matters |
|---|---|---|
Motor Full Load Amps | Check the motor nameplate current | Helps size the VFD Panel correctly |
Voltage and Phase | Confirm site voltage, motor voltage, and single-phase or three-phase supply | Prevents mismatch, overheating, and unsafe operation |
Load Type | Identify whether the load is pump, fan, conveyor, mixer, compressor, or crusher | Determines torque demand and overload capacity |
Speed Range | Confirm minimum and maximum operating speed | Helps avoid motor overheating at low speed |
Control Method | Keypad, push buttons, potentiometer, analog signal, PLC, or remote control | Ensures the panel matches the operation method |
Installation Environment | Dust, moisture, heat, outdoor exposure, or corrosive air | Helps choose the right enclosure and cooling design |

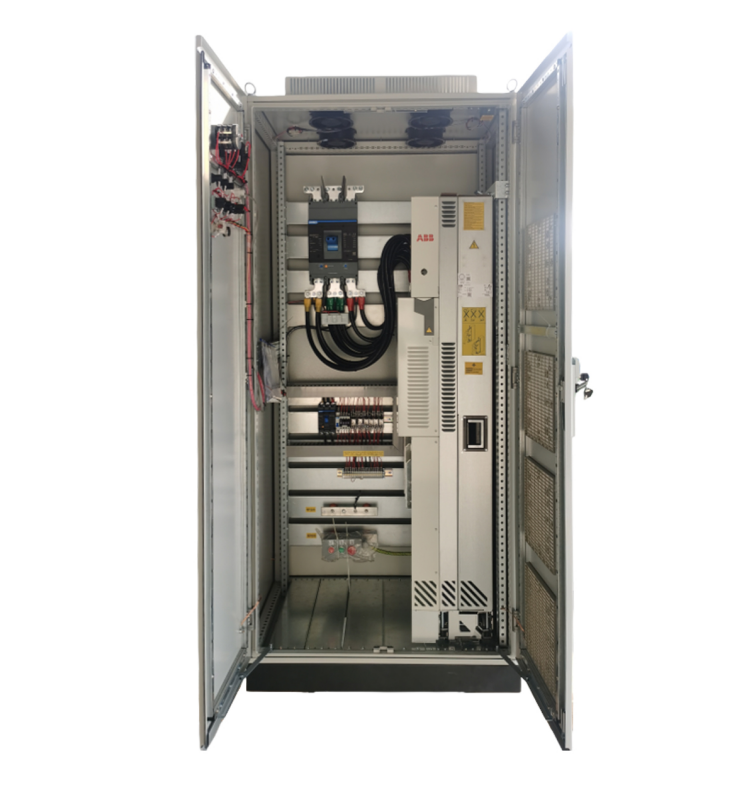

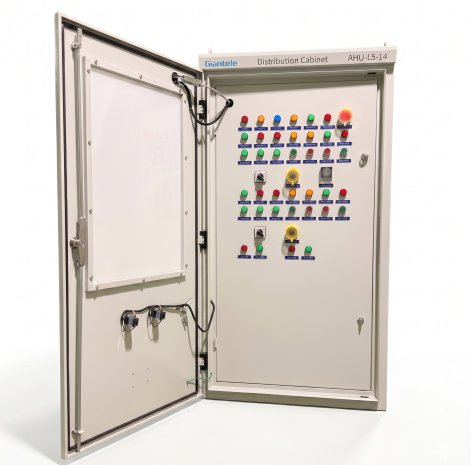

The Single Motor Drive Panel can handle one motor and one process point. This panel is frequently used for pumps, fans, blowers, and conveyor sections. It is easy and reliable to maintain.

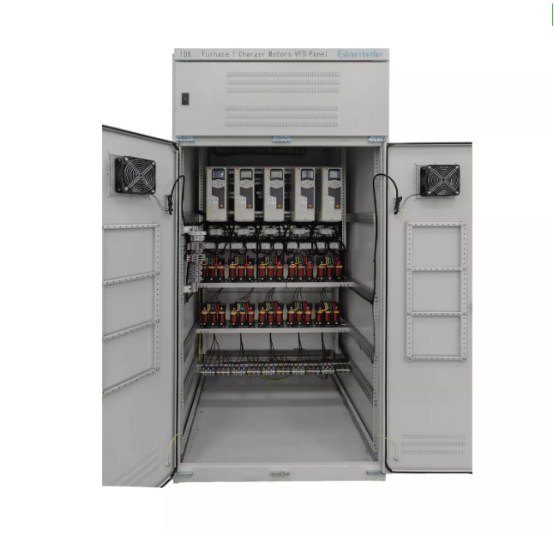

A Multi-Motor Drive Panel uses several drives within one drive enclosure. Each motor can have their own drives, breakers, and control circuits. This way, more space will be saved.
It is important to pay attention to the layout of Multi-Motor Drive Panels. Drives produce heat; therefore, each drive requires air flow. Manufacturer should provide enough space for maintenance.
The VFD Panel with Bypass allows running equipment in case if the drive is failed and the motor operates on a fixed speed regime. This feature is useful for critical pumps, fans, etc.
The Intelligent VFD Drive Control Panel uses PLC, HMI, remote inputs, alarm outputs, and communication interface.
VFD Panel Type | Best For | Main Advantage |
|---|---|---|
Single-Motor VFD Panel | Pumps, fans, blowers, and single conveyor sections | Simple structure and easy maintenance |
Multi-Motor VFD Panel | Systems with several motors in one area | Saves cabinet space and centralizes control |
VFD Panel with Bypass | Critical pumps, fans, and production equipment | Allows fixed-speed operation if the drive fails |
Intelligent VFD Control Panel | Automated production lines and larger systems | Supports PLC, HMI, communication, alarms, and remote monitoring |
Outdoor or Harsh-Environment VFD Panel | Dusty, hot, humid, or outdoor sites | Provides better sealing, cooling, and environmental protection |
Protection design is an important element of VFD Panel quality. The primary breaker ensures safety of power input. Branch breakers or fuses ensure safety of drive circuits. Their ratings must match the project fault level.
Overload protection is also important. It protects the motor in case of heavy load or abnormal conditions. A good design provides overload protection for the drive and motor.
Power quality may influence the stability of operations. Drives can cause electrical interference while switching. Thus, line reactors, filters, shielded cables and correct cable routing may be necessary.
Grounding can never be considered a minor matter. The enclosure, drive, motor and shielded cables need a safe grounding route. Proper grounding ensures safe motor control.
Cooling system design is also important. Drives produce heat inside the cabinet. If it cannot dissipate, the panel can either trip or have its life shortened. Fans or heat exchangers may be required.
Separation of cables helps to improve the quality of signals. Power cables and control cables must run separately from one another. It helps to protect speed control signals and prevent false trips.
Request a one-line diagram before ordering. It gives you the power flow details. You can confirm your team on the feeder, drives, breakers, and motor circuits from here.
The general arrangement diagram is another requirement. It provides enclosure dimension, door fittings, cable entries, cooling components, and component location. This helps ensure that the installation space is adequate.
The wiring diagram is needed for the installation and maintenance process. The technician needs this to trace signal flows and troubleshoot problems.
The bill of material must provide the major components. They should include drives, breakers, contactors, terminals, fans, and control components.
Testing is another requirement in quality control. You can request the supplier to test the wiring, insulation, control logic, alarms, and operational status. Factory testing avoids shipment damage.
A lower price may look attractive, but it can hide weak design. A cheap VFD Panel may lack cooling, space, protection, or useful documents. These gaps increase future cost.
Energy savings are a main reason to use a VFD control panel. Pumps and fans often run with changing demand. Speed control lets the motor slow down when full speed is not needed.
Soft starting adds another benefit. It reduces shock on belts, pumps, pipes, bearings, and gearboxes. This can lower maintenance pressure and extend equipment life.
Bypass and backup options also affect value. They add cost, but they protect critical processes. If the drive stops, the motor can still run in simple mode.
Maintenance access should guide your buying choice. Clear labels, neat wiring, and enough space help technicians work faster. Easy access also reduces downtime.
When comparing quotes, check the full scope. One supplier may include drawings, testing, cooling, and bypass. Another may only offer a basic cabinet. Compare value, not only price.
Comparison Item | Low-Cost Basic Panel | Better-Value VFD Panel |
|---|---|---|
Drive Sizing | May only match basic power rating | Matches motor current, load type, and overload needs |
Protection Design | Limited breaker or fuse selection | Includes proper incoming and branch protection |
Cooling Design | May have basic ventilation only | Designed with fans, spacing, filters, or heat control |
Wiring and Labels | May be simple or less organized | Clear labels, neat wiring, and easier troubleshooting |
Documents | May provide limited drawings | Includes single-line diagram, wiring diagram, layout, and BOM |
Testing | Basic visual check | Wiring, insulation, control logic, alarms, and running tests |
Maintenance Access | Tight layout may slow service | Enough space for inspection, repair, and future upgrades |
Long-Term Value | Lower upfront price, higher future risk | More stable operation and lower downtime risk |
The right manufacturer should understand power distribution and motor control. A VFD Panel needs more than basic assembly. It needs correct sizing, layout, protection, and testing.
Engineering design capability is important. A reliable supplier will ask about motor data, load type, site power, environment, and control needs. These questions prevent design mistakes.
Customization ability also matters. Your project may need a special enclosure, cable entry, HMI, PLC logic, communication, or bypass design. A flexible supplier can match these needs.
Documentation and testing show professional work. Ask for drawings, bill of materials, test records, manuals, and operation guidance. These documents support future service.
After-sales support should not be ignored. Good support helps with installation questions, troubleshooting, spare parts, and upgrades.
Giant Electric provides reliable electrical solutions for industrial power and control projects. Its range covers power distribution box, low voltage switchgear, industrial control panel, motor control centers, and related systems. This helps buyers match the drive cabinet with wider power distribution needs.
However, purchasing a VFD control panel involves more than just the selection of an appropriate drive capacity rating. Some considerations to look for include the load amps, the voltage, load type, speed range, environment, protection, cooling, bypass, and control method of the motor.
Other important steps include evaluating the documents, testing procedures, serviceability, and manufacturing company. An adequately specified VFD control panel can ensure energy efficiency, provide motor protection, and guarantee production stability.
Before seeking out a quotation, ensure that you have adequate motor and site information. Finally, select a supplier who can design, test, and maintain the VFD control panel.
A: A VFD Panel controls motor speed, protection, and start-stop operation.
A: Choose a VFD Panel by motor current, voltage, load, and site conditions.
A: A VFD Panel needs cooling because drives create heat during operation.
A: A VFD Panel cost depends on power, enclosure, bypass, and controls.
A: It improves energy use, soft starting, and motor life.
A: A VFD Panel suits variable speed; starters suit fixed-speed loads.
A: Check overload, heat, wrong sizing, wiring, and grounding.
