Medium Voltage Switchgear
Metal-clad Switchgear
Withdrawable vacuum circuit breaker design simplifies maintenance
Four independent compartments improve safety and fault isolation
Mechanical and electrical interlocks support safer operation
Armored metal-clad structure delivers strong enclosure protection
Front-access design supports flexible installation in switch rooms

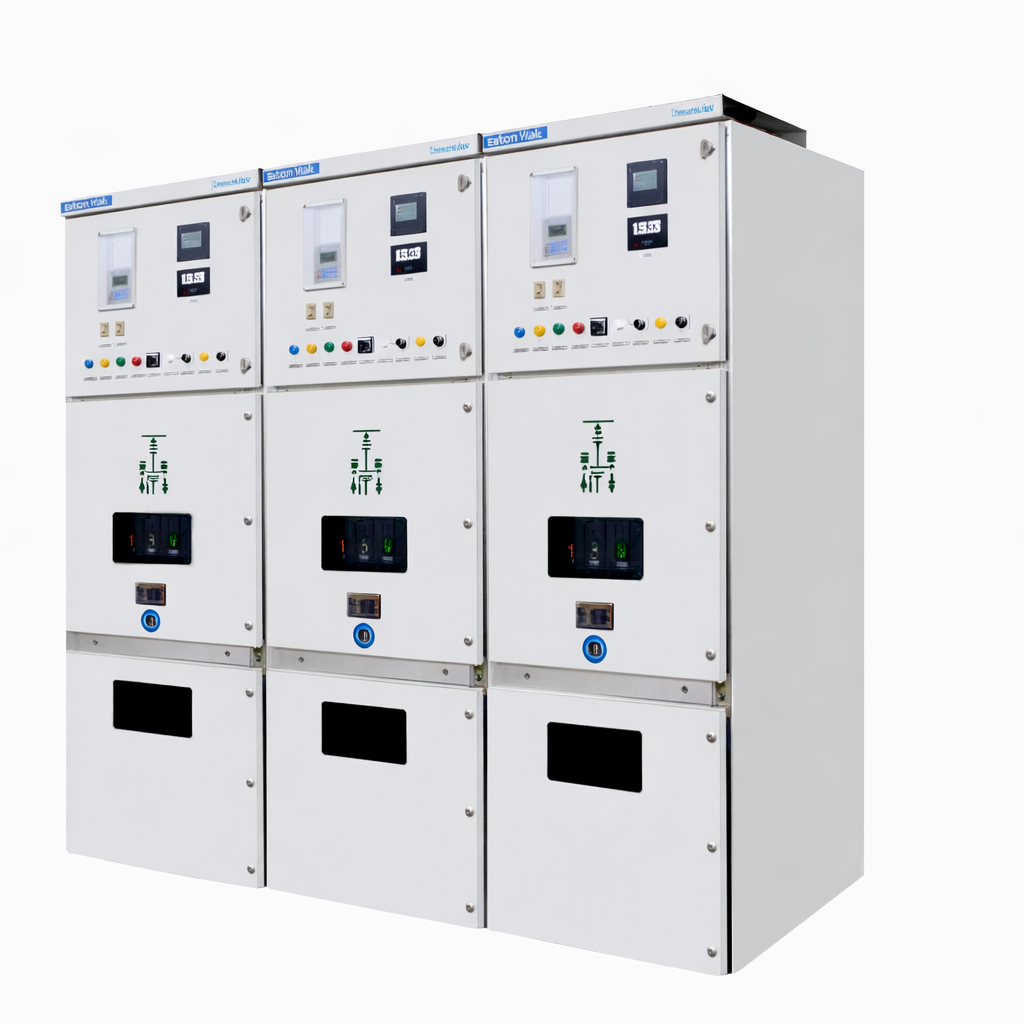

KYN28-12 armored metal-clad switchgear is designed for 3.6kV, 7.2kV and 12kV three-phase AC 50Hz power systems that require reliable power reception, distribution, control and protection. Its withdrawable vacuum circuit breaker structure, independent compartment design and dependable interlocking system help improve operational safety, inspection convenience and system reliability. With a robust metal-clad enclosure, good insulation performance and flexible cable connection capability, it is well suited for power plants, substations, industrial facilities and other medium-voltage distribution applications.
Metal-Clad Switchgear - KYN28-24
Withdrawable metal-clad design supports safer maintenance
24kV medium-voltage rating fits demanding distribution systems
High short-circuit capacity improves network protection reliability
Armored enclosure with compartment separation enhances safety
Integrated control, protection and monitoring for stable operation

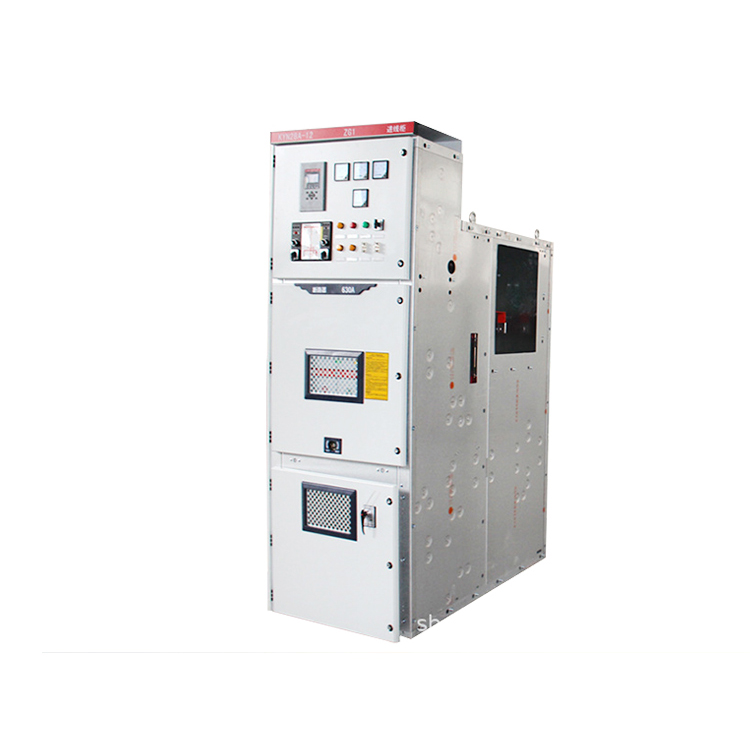

KYN28-24 armored metal-clad switchgear is designed for three-phase AC 50Hz power systems with a rated voltage of 24kV. It is used to receive and distribute electric energy while providing circuit control, protection and monitoring in medium-voltage applications. With its withdrawable structure, robust metal-clad enclosure and reliable short-circuit performance, it is well suited for substations, industrial plants, commercial power systems and other installations that require safe operation, convenient maintenance and dependable power distribution.

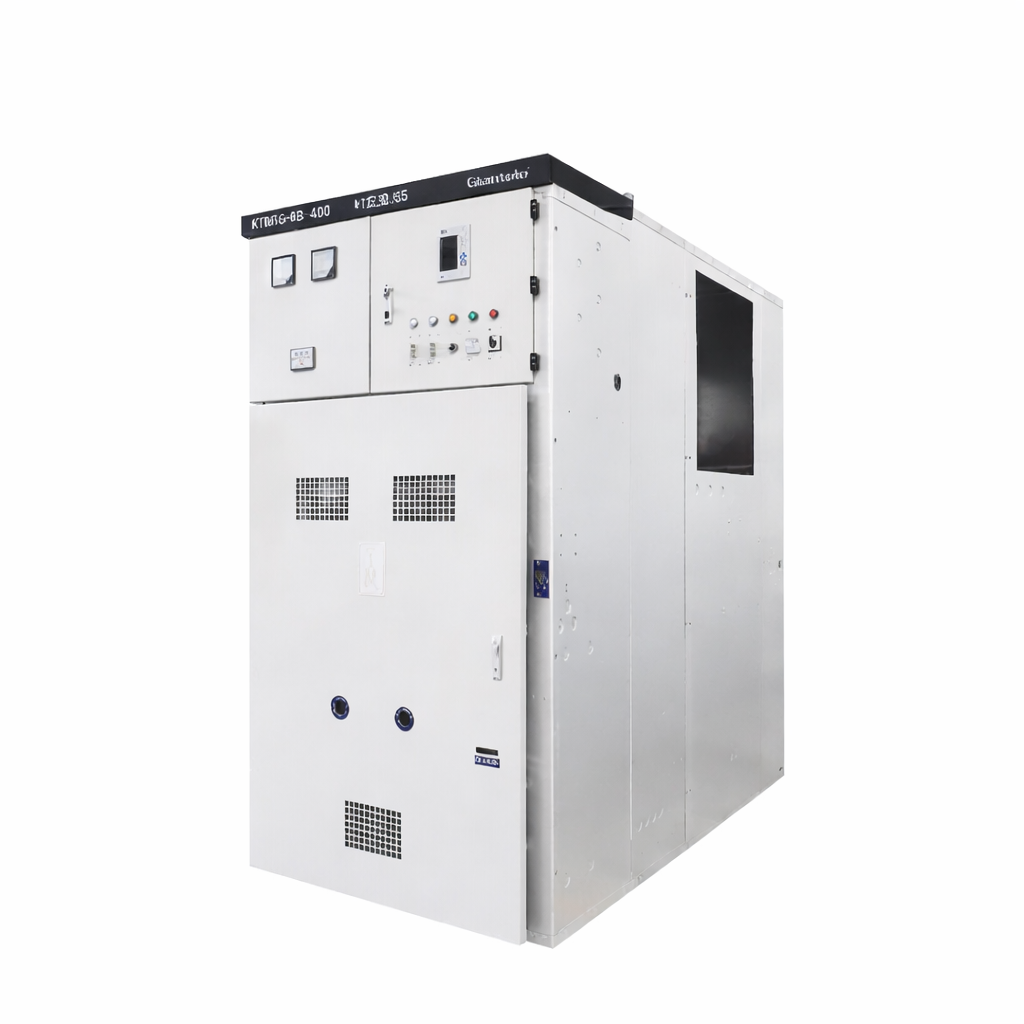

Metal-Clad Switchgear - KYN61-40.5
40.5kV armored metal-clad design for medium-voltage distribution
Withdrawable handcart structure enables convenient maintenance
Vacuum circuit breaker system supports reliable switching performance
Strong cabinet construction improves safety and installation stability
Suitable for power plants, substations and industrial power networks
KYN61-40.5 armored metal-clad switchgear is designed for 35kV three-phase AC 50Hz power systems that require dependable power reception, distribution, control and monitoring. Featuring a fully insulated vacuum circuit breaker, spring operating mechanism and withdrawable handcart structure, it helps improve operational safety, maintenance convenience and equipment interchangeability. With its robust metal-clad cabinet and reliable performance, it is well suited for power plants, substations, industrial facilities and mining applications.
APPLICATIONS OF MEDIUM VOLTAGE SWITCHGEAR
Our medium voltage switchgear solutions are used across a wide range of industries and facilities.
KEY COMPONENTS OF MEDIUM VOLTAGE SWITCHGEAR
Medium voltage switchgear is built around eight core components that work together to ensure safe switching, reliable protection, effective control, and stable power distribution.

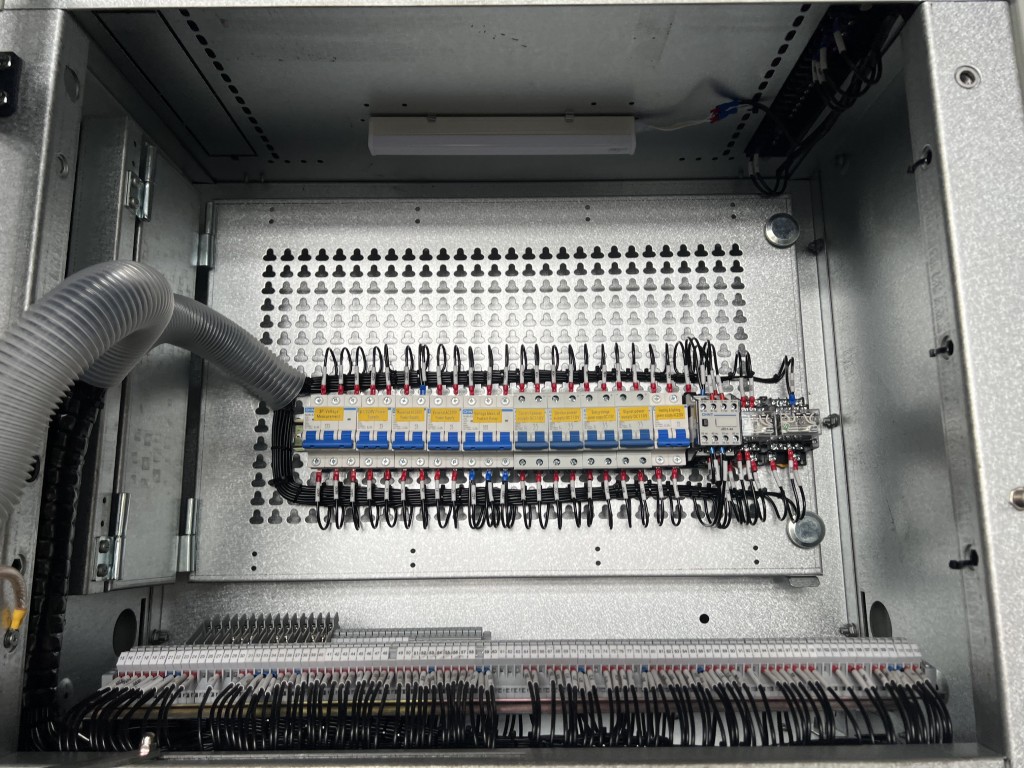

Circuit Breakers / Load Switches
Used to make, carry, and interrupt current under normal operating and fault conditions

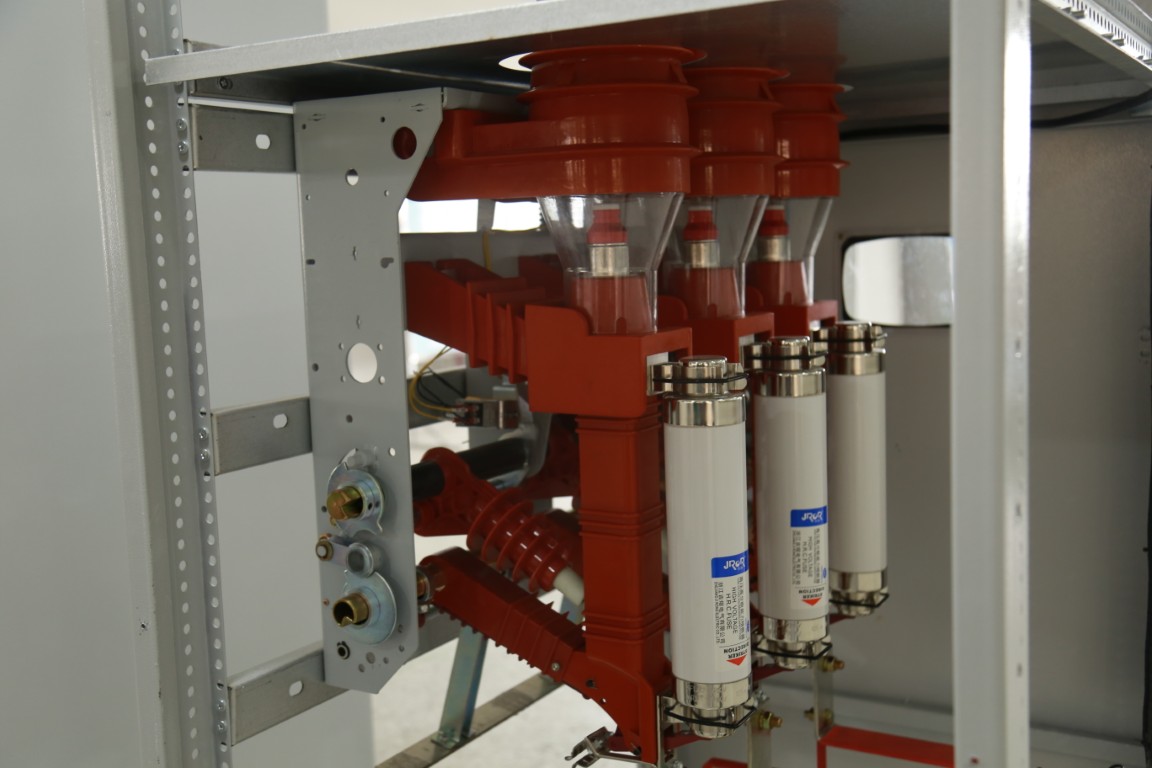

Fuse Units
Used to provide overcurrent protection and help limit fault energy in compact switchgear arrangements.

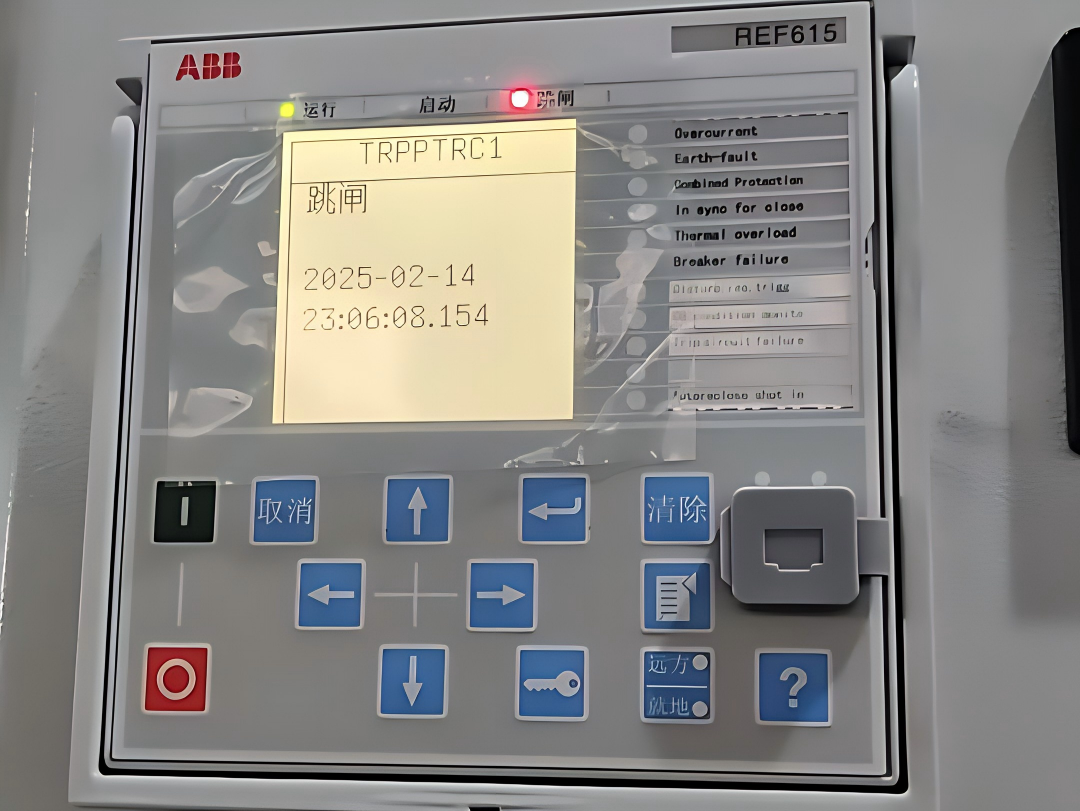

Protection Relays & Secondary Control
These components handle signaling, protective action, control logic, and auxiliary functions required for reliable system operation.

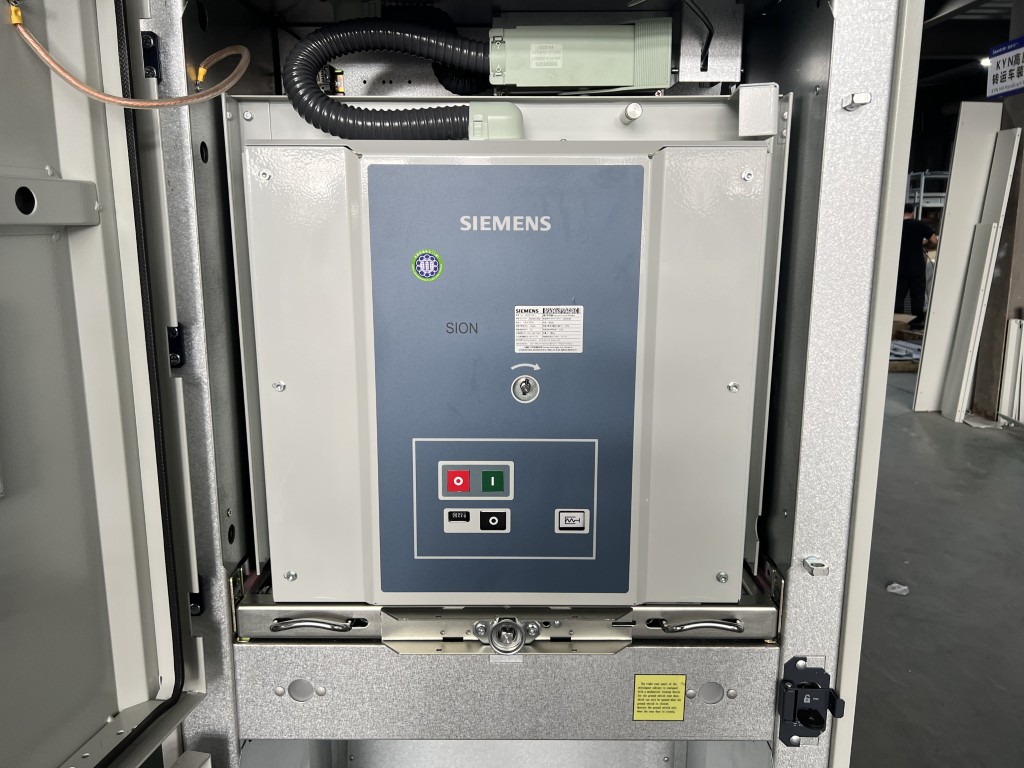

Disconnectors (Isolators)
Used to isolate sections of the circuit so inspection and maintenance can be carried out more safely

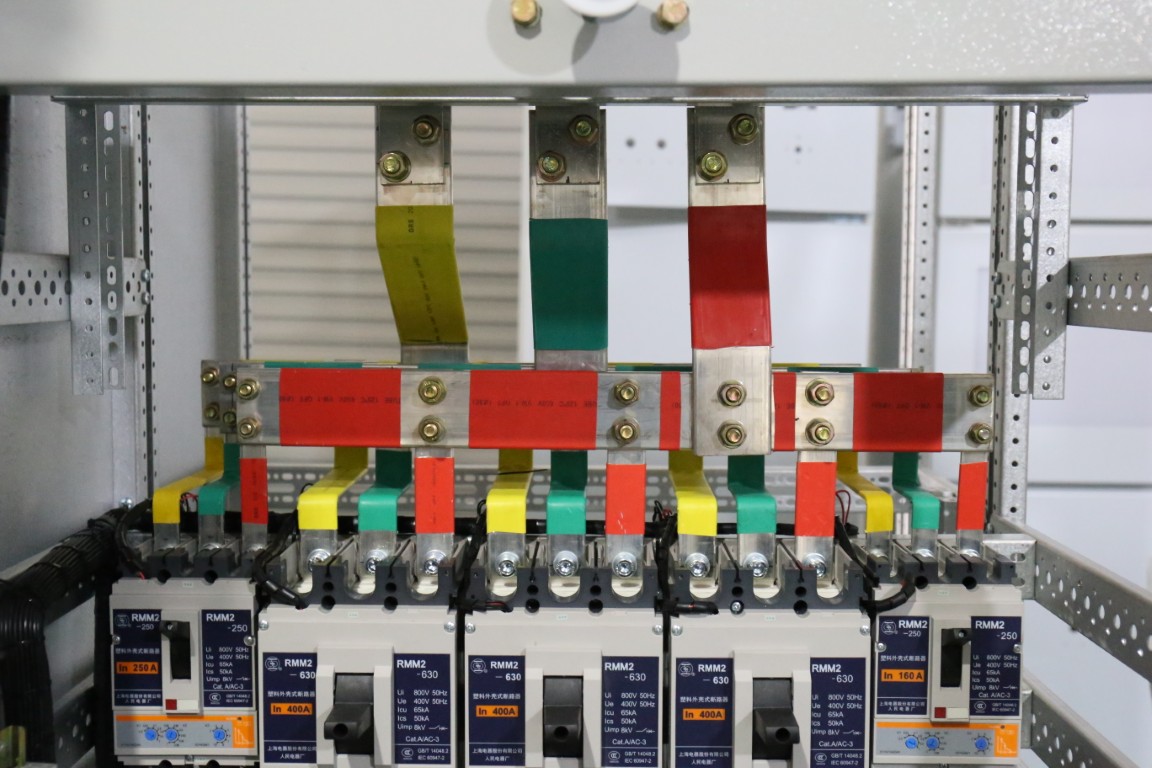

Busbars & Cable Connections
Busbars distribute power within the switchgear, while cable connections link the cabinet to incoming and outgoing circuits.

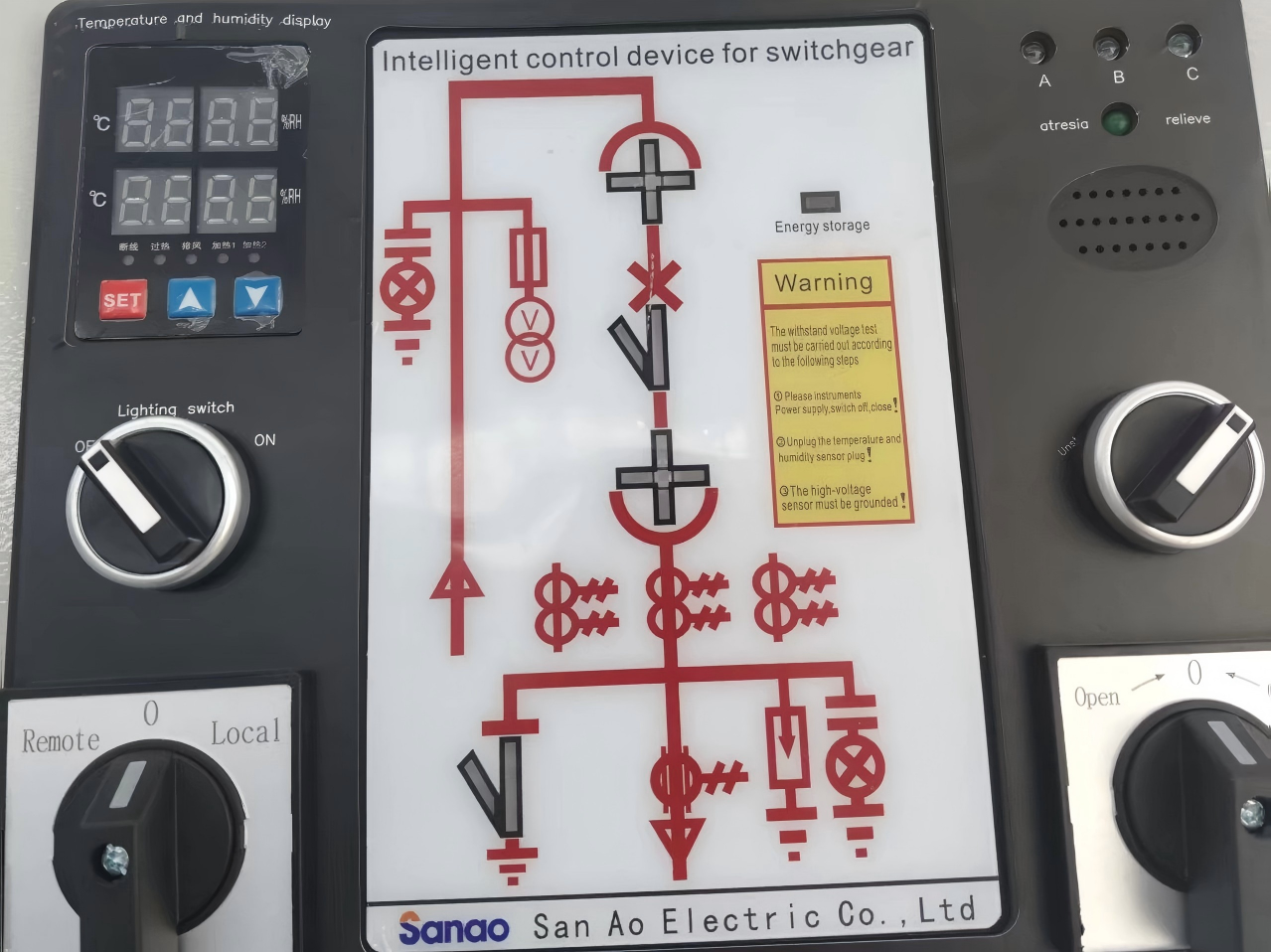

Indicators & Safety Devices
Voltage indicators, fault indicators, pressure indicators, interlocks, and pressure relief devices help operators monitor equipment status and improve operational safety.

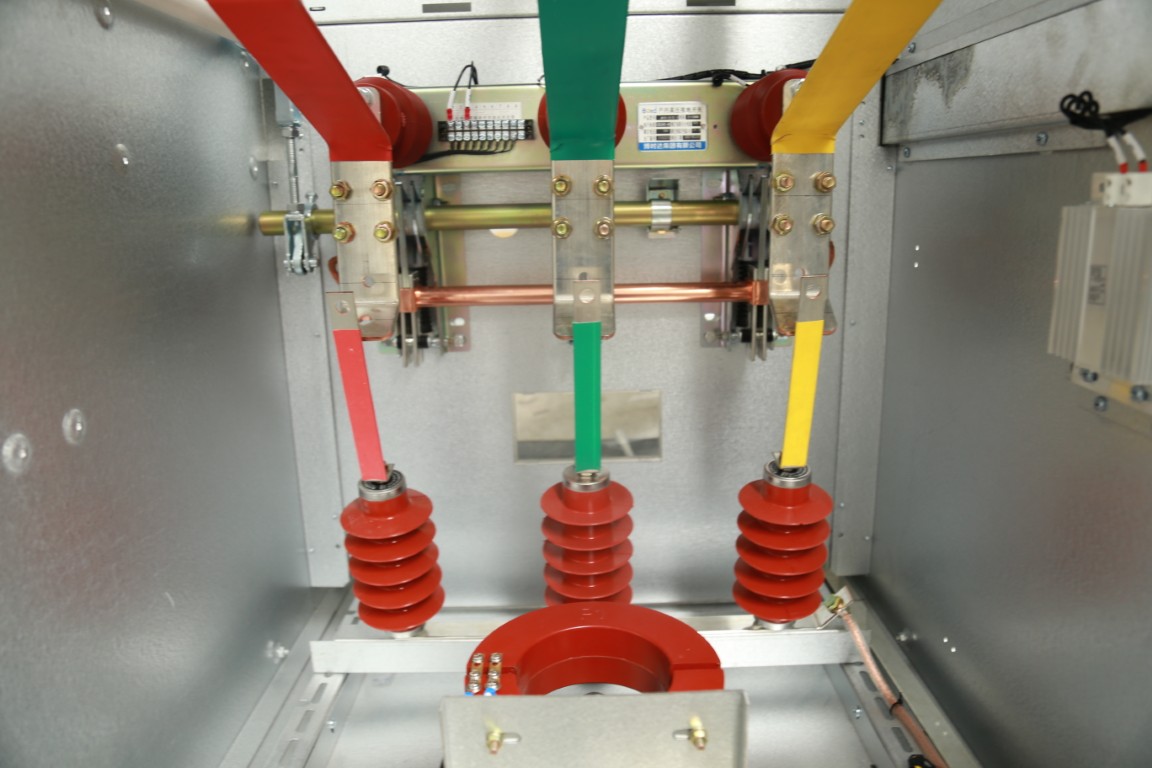

Earthing Switches
Used to ground isolated parts of the system and improve operator safety during servicing.

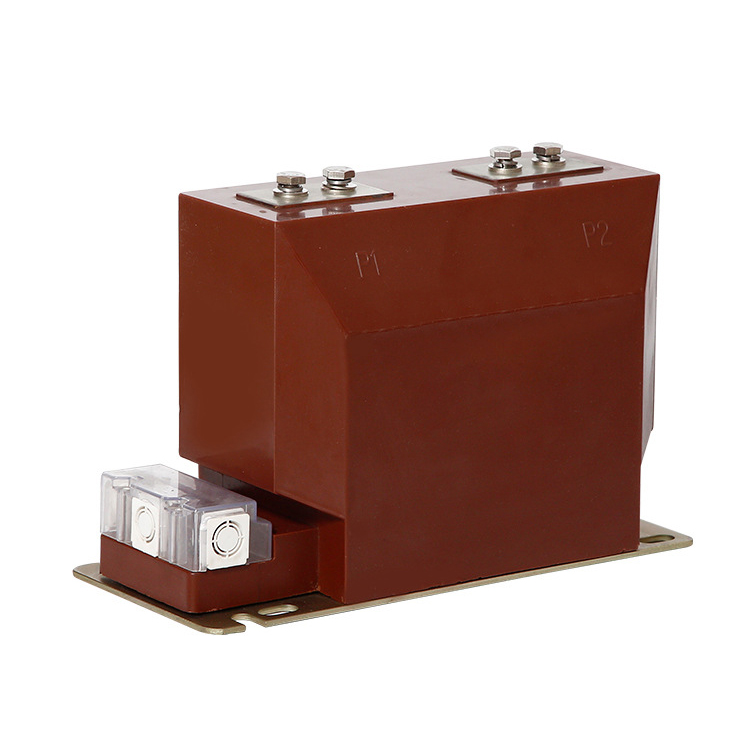

Instrument Transformers
Current transformers and voltage transformers support metering, protection, and monitoring by converting electrical values into usable signals.
FAQs OF OUR MEDIUM VOLTAGE SWITCHGEAR
Our medium voltage switchgear range mainly includes Fixed Switchgear, Ring Main Unit, and AC Metal Enclosed Switchgear. These three categories are designed to meet different project requirements in terms of installation space, protection level, operating mode, and maintenance needs.
In addition to manufacturing, we support customers through solution design, technical disclosure, production and inspection, transportation coordination, technical support, installation guidance, maintenance suggestions, and after-sales service. This helps customers move from product selection to long-term system operation more efficiently.
ONE-STOP SERVICE
From project consultation to long-term after-sales support, we provide a complete service process for medium voltage switchgear projects. Based on your voltage level, application scenario, installation conditions, and technical requirements, our team helps you move from solution selection to manufacturing, integration, commissioning, and system support with greater efficiency and confidence.
Demand Analysis
We first review your project requirements, including voltage level, application scenario, installation conditions, and operating needs, so we can recommend a medium voltage switchgear solution that fits the project more accurately.
Scheme Design
Based on the requirement analysis, our technical team develops a practical solution and helps define the right structure, configuration, and functional arrangement for your medium voltage switchgear project.
Custom Manufacturing
After the solution is confirmed, we move into customized manufacturing with controlled production processes to ensure the final equipment matches the approved technical specifications.
System Integration
We complete assembly, wiring coordination, and functional integration before delivery, helping improve compatibility, protection performance, and overall system reliability.
Installation And Commissioning
Our technical team supports installation and commissioning on site, including start-up checks, operation testing, and guidance, so the system can be put into service more smoothly.
After-sales Support
We provide continuous technical support, troubleshooting assistance, and maintenance recommendations to help customers maintain safe, stable, and efficient power distribution over time.
