I. Introduction: Defining Critical Power Infrastructure

Metal-Clad switchgear represents a pinnacle of safety and engineering design within medium-voltage switchgear systems, typically operating at voltage levels ranging from 3.3kV to 36kV.

Characterized by its robust metal enclosure and compartmentalized architecture, this type of switchgear is engineered specifically for applications demanding maximum personnel safety, operational reliability, and ease of maintenance.

It is the cornerstone of power supply distribution in environments where system failure or extended downtime carries significant consequences. This makes Metal-Clad switchgear an indispensable solution for critical infrastructure and demanding industrial applications.

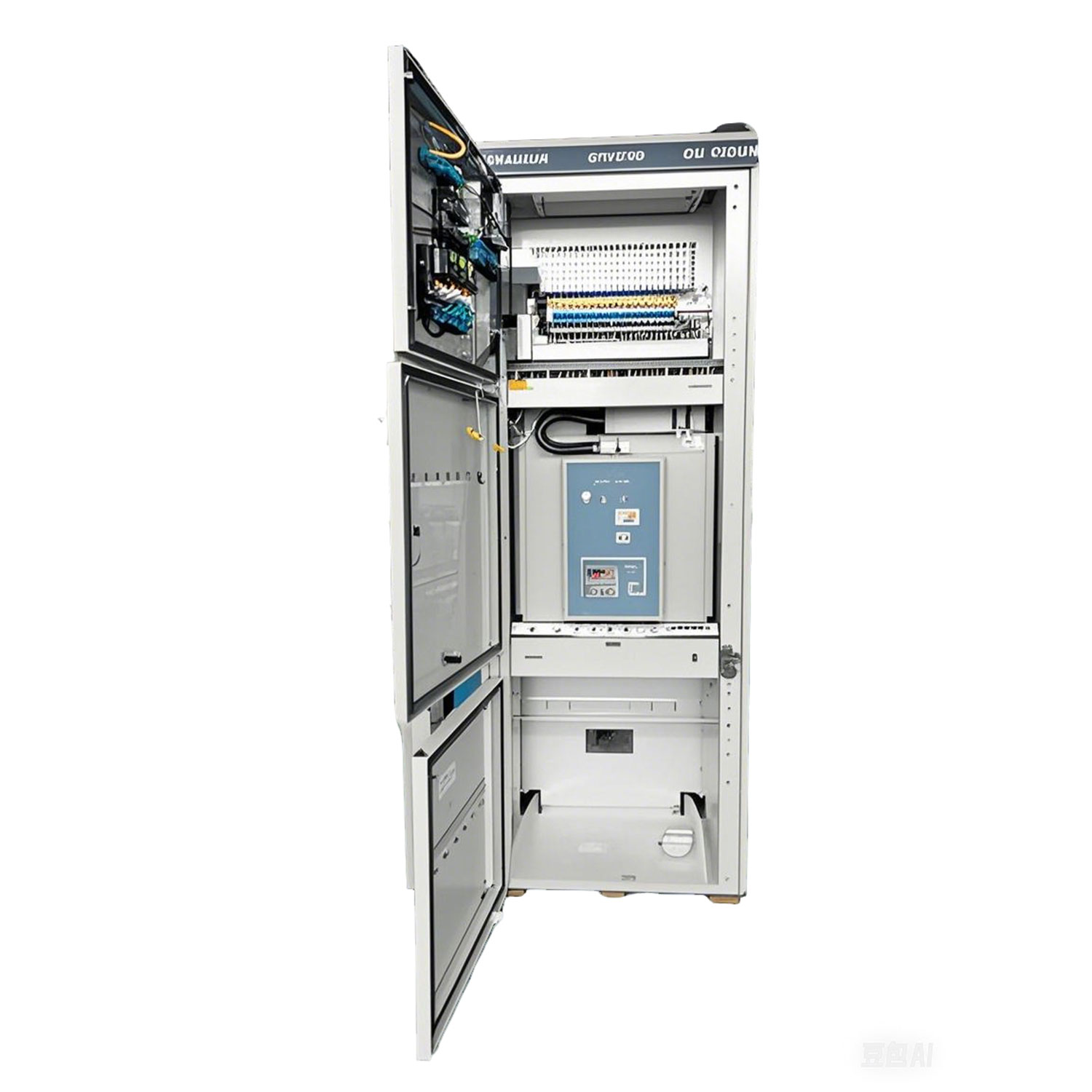

AC Metal Enclosed Switchgear

AC Metal Enclosed Switchgear

AC Metal Enclosed Switchgear

II. Key Design Features: Engineering for Safety and Serviceability

The superiority of Metal-Clad switchgear lies in its fundamental design principles:

1. Rigid Compartmentalization:

Internal components are segregated into separate, isolated compartments with robust metallic barriers or flame-resistant shutters. This typically includes:

• Circuit Breaker Compartment

• Main Bus Compartment

• Cable Termination / Primary Connection Compartment

• Low-Voltage Instrument & Control Compartment (often integrated within the low-voltage **electrical panel**)

• Voltage Transformer Compartment

• This isolation prevents faults in one section (like an arc flash) from propagating to others, protecting equipment and personnel, a core safety feature.

2. Draw-Out Circuit Breaker Design:

The heart of the switchgear system, the main circuit breaker, is mounted on a removable truck. This enables crucial functions:

• Connect Position: Fully engaged for normal operation to distribute electricity.

• Test Position: Partially withdrawn; main primary disconnect switches open, but secondary control connections maintained. Allows safe testing of breaker control circuits while the main bus is energized.

• Disconnect/Withdrawn Position: Fully removed from the metal enclosure housing for inspection, maintenance, or replacement without requiring the entire bus or switchgear lineup to be de-energized. This drastically minimizes downtime.

3. Comprehensive Grounding System:

Essential for personnel safety features, Metal-Clad switchgear incorporates:

• Primary Grounding Switches / Disconnect Switches: Visible grounding points to discharge cables and sections before access.

• Secondary Grounding: Effective grounding of the structure and removable elements.

• Ground Bus: Continuous, high-capacity ground bus running through the lineup.

4. Robust Construction:

• Enclosure: Heavy-duty steel framework and panels, often featuring corrosion-resistant coatings suitable for industrial environments.

• Arc-Resistance: Many designs conform to rigorous arc resistance standards (such as IEEE C37.20.7 or IEC 62271-200). This engineering directs the immense energy and plasma of an internal arc away from personnel via controlled ducts or pressure relief vents, key protective devices.

• "Dead Front" Design: Live primary components are completely shielded, preventing accidental contact during normal operation, a fundamental safety feature.

III. Advantages: Why Metal-Clad Stands Apart

Choosing Metal-Clad switchgear delivers significant benefits over other types of switchgear at medium voltage:

1. Unmatched Personnel Safety: Compartmentalization, groundable sections, arc-resistant construction, dead-front design, and integrated protective devices combine to provide the highest possible level of protection for operating and maintenance personnel against electrical shock and arc flash hazards.

2. Enhanced Reliability & Uptime: The sturdy metal enclosure protects sensitive internal electrical equipment from environmental factors (dust, moisture, temperature fluctuations) and physical impact. Segregation also prevents single-component failures from cascading.

3. Reduced Operational Downtime: The draw-out breaker feature is key. Faulty or maintained breakers can be swapped quickly without shutting down the entire distribution section fed by the main bus, ensuring continuous power supply. Breaker testing can often be performed while the bus remains live.

4. Optimized Maintenance Efficiency: Clear compartmentalization allows for targeted maintenance. Safety shutters, test positions, and visual inspection points streamline procedures and enhance safety during servicing of the switchgear system.

5. Long-Term Value & Flexibility: The durable metal enclosure and build ensure longevity. Furthermore, the often modular design facilitates easier system expansions or customized solution modifications compared to older, fixed designs.

IV. Critical Applications: Where Metal-Clad Is Essential

Metal-Clad switchgear is the preferred choice for mission-critical and demanding power distribution applications where reliable power supply is paramount, including:

• Industrial Powerhouses: Manufacturing plants, automotive facilities, chemical plants, refineries, pulp & paper mills, steel mills – key industrial applications.

• Critical Infrastructure: Data centers (to reliably distribute electricity), telecommunications hubs, hospitals, airports, water treatment facilities, government buildings.

• Energy Generation & Distribution: Power plants (conventional and renewable), substations (utility and industrial), distributed generation interconnection points.

• Large Commercial Complexes: High-rise buildings, shopping centers, university campuses – requiring robust electrical equipment.

• Harsh Environments: Mining operations, offshore platforms, oil & gas production facilities requiring robust metal enclosure protection – a specific application demanding the highest safety features.

V. Standards & Certifications: The Framework of Quality

Metal-Clad switchgear design and manufacturing adhere to stringent international and regional standards for electrical switchgear, ensuring performance, safety, and interoperability. Key standards include:

• International (IEC): IEC 62271 series (High-voltage switchgear and controlgear), particularly IEC 62271-200 (AC metal-enclosed switchgear and controlgear for rated voltages above 1 kV and up to and including 52 kV). IEC 61439 (Low-voltage switchgear and controlgear assemblies - relevant for the control electrical panel).

• North America (ANSI/IEEE/UL):

• ANSI/IEEE C37.20.2 (Standard for Metal-Clad and Station-Type Cubicle Switchgear).

• IEEE C37.20.7 (Guide for Testing Medium-Voltage Metal-Enclosed Switchgear for Internal Arcing Faults - crucial for validating safety features).

• UL 1558 (Standard for Metal-Clad Low-Voltage Power Circuit Breaker Switchgear - for LV control sections).

• Independent Verification: Reputable manufacturers subject their switchgear system designs to rigorous type testing by independent laboratories to validate compliance with these standards, particularly for short-circuit withstand (a key circuit protection aspect), dielectric performance, and arc resistance.

VI. Key Considerations Before Purchase

Selecting the right Metal-Clad switchgear requires careful assessment for your specific application:

1. Electrical Parameters: Define the system voltage, continuous current rating, short-circuit withstand current (kA IC), and interrupting ratings required for effective circuit protection.

2. Arc Resistant Requirement: Is arc resistance (and to what level - IEEE Class 1 or 2, IEC IAC AFLR) mandated for the application? This significantly impacts design, cost, and inherent safety features.

3. Application Environment: Indoor or outdoor installation? Ambient temperature range, humidity levels, presence of dust, corrosive atmospheres, seismic requirements, and altitude affect the specifications for the metal enclosure and internal electrical equipment.

4. Physical Space & Layout: Dimensions of the switchgear lineup, required clearances for operation and maintenance, cable entry methods (top/bottom/rear).

5. Protection & Control Integration: Specify the required protective devices and relay protection (electromechanical, microprocessor-based), SCADA/communication protocols (IEC 61850, Modbus), metering needs, and automation levels within the control electrical panel.

6. Future Expansion: Consider potential load growth and the ease of adding future breaker cells to the lineup – a key factor in a flexible switchgear system.

7. Manufacturer Selection: Prioritize manufacturers with a robust switchgear offer including:

• Expertise in Metal-Clad switchgear design and manufacturing.

• Stringent quality control and in-house testing facilities.

• Relevant certifications (ISO 9001, ISO 14001, etc.).

• Comprehensive documentation and technical support.

• Availability of spare parts and service network for this critical electrical equipment.

VII. Conclusion: The Foundation of Secure Power Distribution

Metal-Clad switchgear remains the gold standard for medium-voltage power distribution where safety, reliability, and operational efficiency are non-negotiable. Its meticulously engineered compartmentalization within a robust metal enclosure, coupled with the practical benefits of the draw-out circuit breaker design and integrated protective devices, provides a level of security and serviceability unmatched by other configurations.

By adhering to rigorous international standards and offering robust protection against electrical hazards, Metal-Clad switchgear forms the critical backbone of power supply systems in vital industrial applications and infrastructure worldwide. As power demands grow and digitalization advances, Metal-Clad technology continues to evolve, integrating intelligent monitoring and control to meet the needs of modern, resilient electrical switchgear networks.
