Power Compensation Power Factor Correction Power Distribution 400V Capacitor Bank

1.Rating: Rated voltage: 380V.

2.Rated current: 3150A, 50-60Hz

3.Application: mainly applicable in power station, power substation industrial and mining enterprises as energy converter, distributor and controller of power, light and distribution device.

4.Standard: IEC60439-1

Rated Voltage:
Rated Frequency:
Rated Capacitor:
Availability:
Quantity:
  • GGJ
  • Zhegui Electric
  • up to 690V
  • 50/60HZ
  • 1 piece
  • Offered
  • up to 600kvar

1

Overview

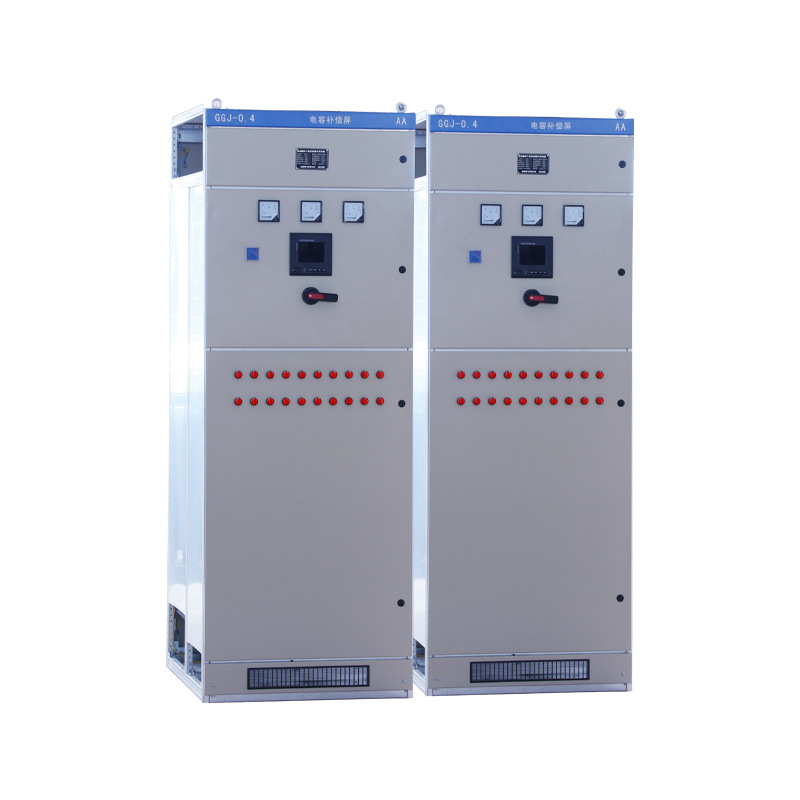

    GGJ low-voltage power distribution reactive power compensation integrated cabinet is a new type of outdoor power distribution reactive compensation integrated cabinet designed by the principles of safety, economy, reasonableness, and reliability. Applicable to city network, rural power network transformation, industrial and mining enterprises, street lighting, residential quarters, etc. AC 50Hz (60Hz), rated voltage 380V (can be customized according to local national standards), with power distribution, control, protection, Multi-functional outdoor integrated distribution box with reactive power compensation, electric energy metering, etc., and can also add leakage protection function according to user requirements.

    The product has the advantages of novel structure, reasonable structure, high protection level, convenient installation and debugging, maintenance and overhaul. The product complies with GB7251.1-1997, GB/T15576-2008, and has passed the 3C certification. It is an ideal low-voltage complete set in the current power grid transformation. GGJ series power distribution reactive compensation cabinet is suitable for electric energy distribution, metering, protection, and reactive power automatic compensation of 0.4kV voltage level.


11

Working Conditons

1.Rated voltage380V(can be customized according to local national standards)

2.Rated frequency50Hz(60Hz)

3.Compensation method the combination of three-phase compensation and single-phase compensation

4.Compensation capacity420kVar~60kVar

5.Compensation method cycle switching, coding switching, fuzzy control automatic switching.

6.Control physical quantity reactive power or reactive current

7.Fastest response time≤20ms

Types of meaning
G G J  (  ) -

  (  ) - (  ) - (  )
Low voltage switchgear Electrical elements and wires fixed installation Power cabinet Desian No. Main circuit scheme NO. Auxiliary circuit scheme NO

"D" power supply

 "F"power generation



Testing instrument

Convenient to observe monitoring current and voltage value


2

Intelligent controller

Intelligence wisdom, science and technology make electricity safer


2

Brand components

Big brand safeguard is firm and durable, good stability


1

Strong segmentation ability

High breaking capacity, good thermal stability, strong practicability, novel structure, solid skills


3

PRODUCT SIZE DESCRIPTI图纸


Main technical parameters


No.ItemUnitData
1Rated voltageV400,690
2Rated FrequencyHz50/60
3Rated CapacityKva1-600
4Voltage RangeV(0.85 ~ l.l)times rated voltage
5Maximum Permissable Curent
1.3 times rated current
6Control Loop
1-16
7AltitudeM< 2000m
8Ambient temperature°C-20 to +45 °C
9Humidity%90% at 20°C
10Switching Time
1 ~ 150 s/times, adjustable
11Manner of working
automatic and continuous
