When selecting a Ring Main Unit (RMU), it’s crucial to ensure your power system remains safe and operates efficiently. Start by reviewing the voltage and current ratings specific to the RMU. Evaluate the insulation type and the switching technology used in the Ring Main Unit. Consider whether the RMU offers smart features that can enhance your system. Take into account the network layout and available space, as well as any environmental requirements. Choosing the wrong Ring Main Unit (RMU) can lead to serious issues, such as insulation damage, SF6 gas leaks, malfunctioning circuit breakers, incorrect relay settings, water ingress, loose connections, or failed SCADA communication. Always assess your system’s unique needs. It’s also important to understand the differences between Ring Main Units vs Switchgear, as each serves distinct roles within electrical networks.
Always look at the voltage and current ratings of your RMU. This helps keep things safe and stops damage to equipment.
Think about where you will put the RMU. Humidity, dust, and heat can change how well it works and how long it lasts.
Pick the insulation type that fits your needs. Gas-insulated RMUs are small and work well. Air-insulated RMUs are better for the earth.
Get ready for upgrades and smart features in the future. This helps your power system stay new and work well.
Use safety rules when you install the RMU. Good setup keeps people and equipment safe.
First, check the voltage and current ratings for your RMU. These ratings help you pick the right RMU for your system. If you choose wrong, equipment can get damaged or become unsafe. The table below shows common values for medium-voltage networks:
Parameter | Typical Range |
|---|---|
Rated Voltage | 10kV / 11kV / 12kV |
Rated Current | 630A / 1250A |
Short-Circuit Withstand | 16kA – 25kA (1s or 3s) |
You should know what these ratings mean for safety. The next table explains each parameter:
Parameter | Description |
|---|---|
Rated Voltage | The highest voltage the RMU can safely handle. |
Rated Current | The most current the RMU can carry in normal use. |
Rated Short-time Withstand Current | Shows how much fault current the RMU can survive for a short time. |
Think about how you will use your RMU before you choose. Each use has different load needs. Here are some common RMU uses:
Power utilities need flexible medium-voltage loops.
Businesses and factories need strong power management.
Renewable energy projects use RMUs to collect power.
Public places need RMUs for steady power.
Hospitals need RMUs for life-support systems.
Oil, gas, and mining use RMUs in tough places.
Smart cities use RMUs for modern power grids.
Match your RMU to your load and use. This keeps your power system safe and reliable.
Check the place where you will install your RMU. The environment can change how well it works and how long it lasts. Common risks are:
Humidity can lower insulation strength.
Condensation can cause failures.
Small animals can cause short circuits.
If you install RMUs in harsh places, look for special features. Gas-insulated RMUs are small and resist heat and rust. FLURSAC units are reliable and protect against hazards. These choices help keep your system safe in tough conditions.
Tip: Always match your RMU to your system’s voltage, current, use, and environment. This keeps your power safe and reliable for a long time.

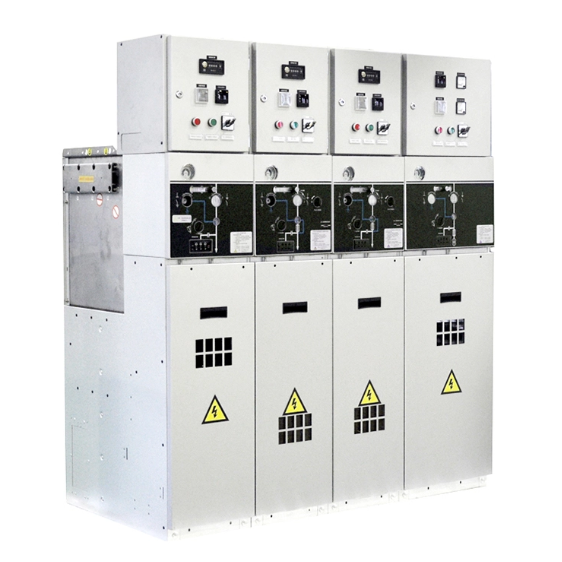

There are two main insulation types in switchgear. One uses SF6 gas, and the other uses air. Gas-insulated switchgear is very reliable. It works well in tough places. Air-insulated switchgear is not as reliable in wet or dirty areas. Gas-insulated switchgear does not need much maintenance. This is because it is sealed. Air-insulated switchgear needs more checks. It is open to weather and dust. Gas-insulated switchgear works well in bad weather. Air-insulated switchgear can have problems with dust and water.
Gas-insulated switchgear is small and fits in tight spaces. Air-insulated switchgear is bigger but better for the environment. SF6 gas can harm the environment. Some countries have strict rules about it. Air insulation is safer for nature and has fewer rules.
Aspect | SF6 Gas | Air Insulation |
|---|---|---|
Greenhouse Gas Emissions | High GWP, restricted under Kyoto Protocol | Lower environmental impact |
Regulatory Measures | Banned in EU for certain applications by 2026 | No significant restrictions |
Dielectric Strength | Higher dielectric strength | Requires larger equipment |
Equipment Size | Smaller equipment possible | Larger equipment needed |
Switchgear uses different ways to control power. Load break switches let you turn parts of the network on or off. This helps you move power safely. Circuit breakers and fuse-switches protect your equipment from too much power. Earth switches make the circuit safe for workers. They ground the system during repairs.
Switchgear helps you stop problems fast. This keeps your power system working well. You can pick gas-insulated, air-insulated, or solid-insulated switchgear. Each type is good for different jobs.
Type of RMU | Insulating Medium | Key Features |
|---|---|---|
Gas-Insulated RMU (GIS) | SF6 gas | Small, closed, needs little care, good for cities. |
Air-Insulated RMU (AIS) | Air | Bigger, better for nature, good if you have space. |
Solid-Insulated RMU | Solid dielectric | Good for the environment, best for places that need to stay clean. |
Modern switchgear has smart features. These help you watch and control your power system. You can check your system from far away. Smart tools help you find problems quickly. You can fix things before they break. Digital tools give you updates right away.
Sensors and communication tools show you what is happening now.
You can control your system without being there.
Automatic fault finding and fixing makes your network safer.
Special switches and protection tools save power.
Load management keeps power balanced everywhere.
Tip: Smart switchgear helps keep your power system safe and ready for new technology.
Look at your network before picking an RMU. Cities and countryside need different RMUs. Cities have small spaces, so use compact RMUs. Countryside needs RMUs that can handle bad weather. Rural RMUs should also be ready to grow bigger later. The table below shows which RMU fits each place:
Configuration Type | Urban Requirements | Rural Requirements |
|---|---|---|
C‑C‑V | Saves space | Works well in tough weather |
C‑V‑V | Small and safe | Can change for different weather |
Loop + T‑Off | Keeps power flowing | Can grow in the future |
Cities need small RMUs because space is tight.
Countryside needs RMUs that last and can change.
Cities must have RMUs that keep power on all the time.
You need to pick indoor or outdoor RMUs. Indoor RMUs go inside buildings. They stay safe from rain and dust. You do not need special covers for indoor RMUs. Outdoor RMUs are made for bad weather. They have strong cases and coatings to protect them.
Indoor RMUs are safe from weather.
Outdoor RMUs use strong materials and coatings.
You can put RMUs inside or outside, so you have choices.
Outdoor RMUs use materials that do not break in sunlight. These features help RMUs last longer and keep power safe.
Safety is very important when you install RMUs. You must follow rules to keep people and equipment safe. The table below lists important safety rules:
Standard | Description |
|---|---|
IEC 62271-1 | Tells how to make RMUs strong and safe. |
IEC 62271-200 | Gives rules for RMU covers and safety. |
IEC 62271-100 | Explains how to test RMUs for problems. |
Follow these steps to install RMUs safely:
Pick a good spot with air and low moisture.
Make sure the RMU sits flat and steady.
Connect wires safely and ground them.
Use safety devices and meet safety levels.
Put clear labels and warnings on the RMU.
Test the RMU after you install it.
Check and fix the RMU often to keep it working.
Outdoor RMUs need extra protection from damage and weather. Use strong covers, special coatings, and locks. Cameras and smart places help keep RMUs safe.
Tip: Make sure you can reach the RMU easily. Easy access helps you fix and check the RMU. This keeps your power system working for a long time.
Picking the right ring main unit (rmu) can seem hard. This checklist helps you remember every important step and makes things easier:
Identify System Requirements
Check your network’s voltage and current ratings.
Write down all uses and load needs.
Assess Environmental Conditions
Look at the site for humidity, dust, and heat.
Decide if you need indoor or outdoor ring main units.
Review Insulation and Switching Technologies
Compare gas-insulated and air-insulated ring main units.
Pick the best switching features for your needs.
Check Compliance with Industry Standards
Make sure the ring main unit meets IEC 62271 or ANSI C37.
Look for certifications like ISO 9001 from the maker.
Evaluate Smart Features
Think about remote monitoring and digital protection.
Plan for upgrades and smart grid use in the future.
Plan for Installation and Space
Measure space and check your network’s layout.
Make sure the base is strong and flat.
Estimate Total Cost
Add up all costs now and later for your system.
Remember to include maintenance and upgrades.
Verify Safety and Accessibility
Check for safety features and clear labels.
Make sure you can reach the ring main unit for checks.
Tip: Always buy ring main units from trusted makers who follow world standards. This keeps your power system safe, reliable, and efficient.
People sometimes make mistakes when picking a ring main unit. These mistakes can cause big problems for your power system. The table shows common mistakes and what can happen:
Common Mistakes | Consequences |
|---|---|
Underestimating voltage and current | Insulation can break down and the system may not work well |
Neglecting evolving environmental regulations | You could face legal trouble and safety problems |
Prioritizing upfront cost over lifecycle performance | The system may fail early and cost more over time |
Ignoring smart grid compatibility | Your system may not work with new technology |
You can stop these mistakes by following good steps:
Make sure the site is clean, flat, and strong.
Use the right tools for cables and connections.
Build a good grounding system that follows local rules.
Always use the maker’s manual for installing.
Pick enclosures that can handle tough weather if needed.
Only let trained workers install and fix the unit.
Test the ring main unit before turning on the power.
Note: Doing these things helps you avoid costly mistakes and keeps your network safe.
You should think about maintenance and upgrades when you pick a ring main unit. Good planning keeps your system working well and ready for changes.
Feature | RMU | Metal-Clad Switchgear |
|---|---|---|
Maintenance Costs | Lower because it is sealed and has fewer parts | Costs more for big systems and more work needed |
Frequency of Servicing | Needs less service | Needs regular checks for each part |
Protection Against Elements | Sealed design keeps out dust and water | Needs more care because it is open |
Ring main units are sealed, so you spend less on maintenance. They also keep out dust and water better. You still need to check them often and follow the maker’s plan.
When you plan upgrades, remember these things:
New digital tools can make your system better.
Safety rules can change, so pick ring main units that can adjust.
Prices for parts can go up or down, so plan your money well.
Also think about:
New automation and smart grid tools can add features to your ring main unit.
Remote checks and real-time data help you manage your network.
Things like soil, weight, and earthquakes can change how you install or upgrade.
Callout: Planning for maintenance and upgrades keeps your ring main unit working well. It also gets your power system ready for new needs and uses.
Picking the right rmu means you must know what your system needs. You should look at different technologies and plan how to install it safely. The checklist and table below can help you make a good choice:
Advantage | Description |
|---|---|
Space-saving design | Lets you use less space, sometimes half as much. |
Touch-proof enclosures | Keep people safe and stop arc faults. |
Low maintenance | Helps you spend less time and money. |
If your project is hard, ask experts or suppliers for help. Teach your team what to do and check your system often. This will help your system stay safe and work well for a long time.
An RMU helps control power in medium-voltage networks. It lets you turn circuits on and off. It keeps your system safe if something goes wrong.
Check your RMU once every year. Clean it and test safety parts. Look for any damage or wear. Regular checks help stop sudden problems.
Yes, you can add sensors to many RMUs. You can also add communication modules. These upgrades help you watch your system from far away. They make your network work better.
Gas-insulated RMUs use SF6 gas for insulation. They are smaller and need less care. Air-insulated RMUs use air instead. Air is better for nature but needs more space.
Pick indoor RMUs for places inside buildings. Choose outdoor RMUs for areas outside. Outdoor units have strong cases to protect them from weather.
