Power Factor Correction (PFC) is a critical technology for enhancing the efficiency of electrical systems. It represents a fundamental method for optimizing power consumption, reducing energy costs, and improving the overall performance of electrical networks. For industries, commercial establishments, and even large-scale residential complexes, understanding and implementing power factor correction is no longer an option but a necessity in today's energy-conscious world. This comprehensive guide explores the intricacies of power factor correction, its importance, and the solutions available to achieve optimal electrical efficiency. We will delve into how power capacitors, including various types like shunt capacitors and specialized power factor correction capacitors, serve as the backbone of these efficiency-enhancing systems.
Power Capacitor Series

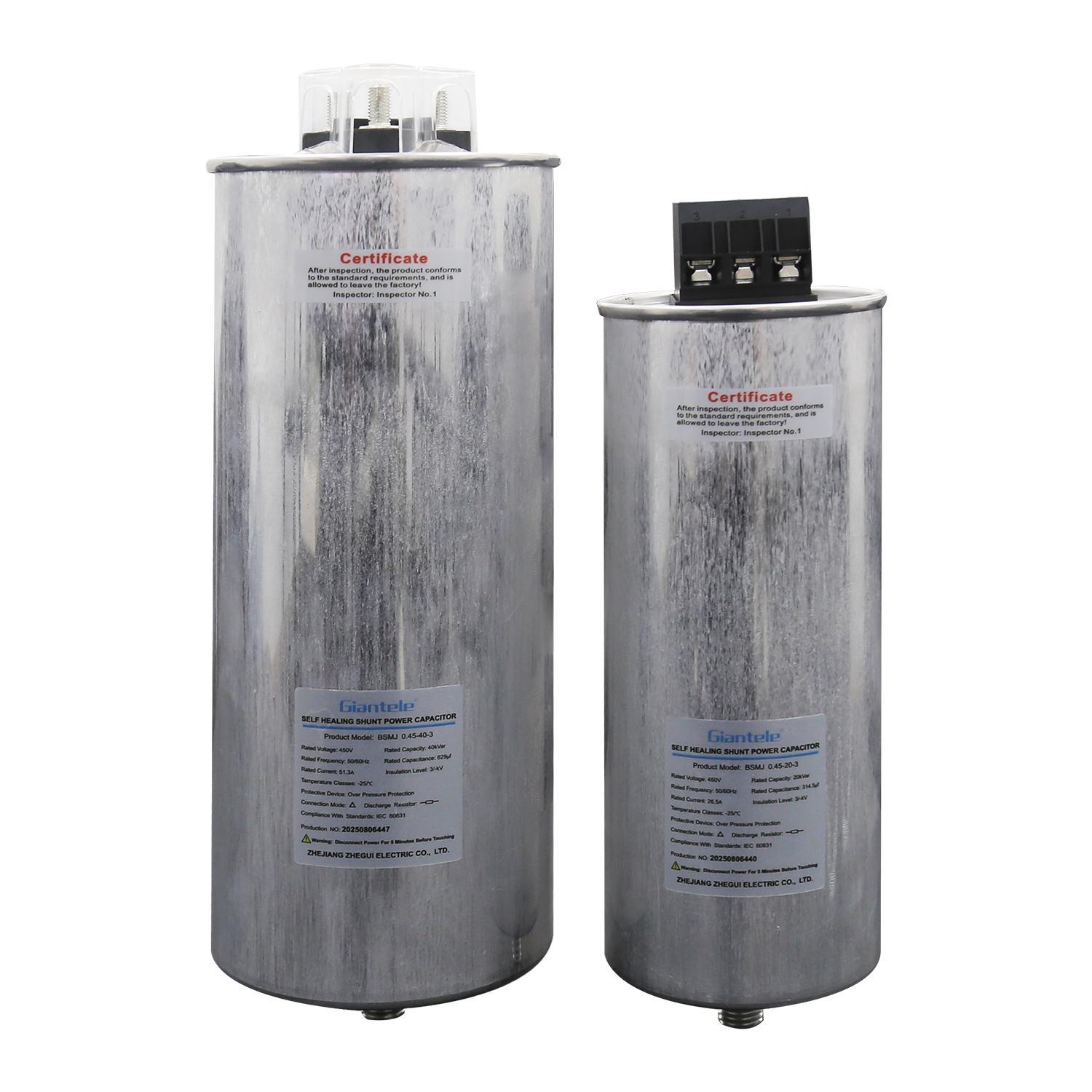

Self-healing Power Capacitor
At its core, power factor is a measure of how effectively electrical power is converted into useful work output. It is defined as the ratio between real power (measured in kilowatts, kW) that performs actual work and apparent power (measured in kilovolt-amperes, kVA) that is supplied to the circuit. Mathematically, it is expressed as: Power Factor = Real Power (kW) / Apparent Power (kVA). This value ranges between 0 and 1, where a value closer to 1 indicates higher efficiency .
When the power factor is less than 1, it indicates that the current and voltage waveforms are not in phase. This typically occurs in systems with inductive loads—common in industrial equipment like motors, transformers, and fluorescent lighting. These loads create reactive power, which does not contribute to actual work output but still occupies capacity in the electrical distribution system. This reactive power increases the total current flowing through the system, leading to higher losses, reduced efficiency, and potential penalties from utility providers .
Power capacitors are the primary components used to improve power factor. They work by supplying reactive power opposite to that created by inductive loads. Essentially, they counteract the lagging reactive power (measured in kVAR) with leading reactive power, thereby reducing the phase difference between voltage and current. This brings the power factor closer to unity (1), optimizing the power flow .
Among these, the shunt capacitor is one of the most common devices used for this purpose. Connected in parallel to the electrical system, shunt capacitors provide the necessary reactive power compensation at the point of installation. This local compensation means the reactive power doesn't have to travel through the entire distribution system, significantly reducing line losses and improving voltage stability .
A power factor correction capacitor is specifically designed for this application. Whether it's a low voltage capacitor or a high voltage capacitor, these components are engineered to handle the demands of reactive power compensation. For instance, low voltage power capacitors are typically used in industrial and commercial settings at the distribution level, while high voltage capacitors might be deployed in transmission systems or heavy industrial applications .
The world of power system capacitors is diverse, with different types tailored for specific applications and voltage levels.
Electrolytic Capacitors vs. Film Capacitors: While aluminum electrolytic capacitors are common in some electronic applications for their high capacitance per volume, they are generally not the first choice for primary power factor correction due to their limitations in handling AC currents and lower ripple current ratings. Instead, power factor correction often relies on film capacitors or specialized power capacitors. For AC applications, capacitors like the AC dual capacitor Cbb65 or Split AC capacitor are specifically designed. AC motor capacitors, including those used in single-phase motors, are crucial for improving the power factor and efficiency of motor-driven systems .
Standard Power Capacitor Models: In industrial power systems, you'll often encounter standardized models like the BSMJ capacitor and BKMJ capacitor. These are metalized polypropylene film capacitors, often self-healing, designed for reliable operation in capacitor banks for power factor correction. The "B" indicates they are for parallel connection (compensation), "S" suggests three-phase, "M" indicates metalized, and "J" means they are damped (to suppress inrush currents). They are typically used in low voltage power systems .
Capacitor Banks and Cabinets: Individual capacitors are often grouped together to form a capacitor bank. The size of the bank can be adjusted to provide the exact amount of reactive power compensation needed by the load, which can vary over time. These banks are housed in organized assemblies known as capacitor cabinets. For dynamic compensation that responds to rapid changes in load, an Automatic Power Factor Correction (APFC) system is used. An APFC panel automatically switches capacitor steps on and off to maintain a consistently high power factor, ensuring optimal efficiency under varying operating conditions .
Specialized Components: In some cases, especially where harmonic distortion is present, capacitors are used in conjunction with inductors or capacitors reactors. These reactors are connected in series with the capacitors to form tuned filters, which prevent harmonics from causing damage to the capacitors and the system. For applications requiring rapid charge and discharge cycles or bridging very short power interruptions, technologies like super capacitor power conditioners are emerging, though they serve a different primary function than traditional AC power factor correction .
Implementing a robust power factor correction strategy using the right power factor improvement capacitor solutions delivers tangible and significant benefits:
Reduced Electricity Costs: Many utility companies charge penalties for a low power factor because it inefficiently uses their distribution network. They may bill based on kVA demand rather than just kW. By improving your power factor, you can avoid these demand charges and reduce your overall electricity bills .
Increased System Capacity and Reduced Losses: A low power factor causes higher current flow for the same amount of real power (kW). This excessive current overloads transformers, switches, cables, and other distribution equipment. Correcting the power factor reduces the current in the system, freeing up capacity. This allows existing infrastructure to support more load without needing upgrades. Furthermore, reduced current leads to lower I²R losses (copper losses) in cables and transformers, enhancing overall system efficiency .
Improved Voltage Regulation and Equipment Longevity: The reduced current flow resulting from a higher power factor minimizes voltage drops, especially in long cables. This helps maintain a more stable voltage level at the equipment terminals, ensuring they operate reliably and efficiently. Stable voltage and reduced electrical stress contribute to longer lifespan for motors, transformers, and other expensive assets .
Environmental Benefits: By improving electrical efficiency, power factor correction reduces the amount of generation required from power plants, indirectly leading to lower greenhouse gas emissions. It is a key strategy for sustainable energy management .
Choosing the correct power supply capacitor or power storage capacitor for PFC requires careful analysis. The first step is to measure the existing power factor and understand the load profile of your facility. The required compensation (in kVAR) can be calculated based on the desired improvement .
For most industrial and commercial applications, an APFC panel is recommended. This system automatically monitors the power factor in real-time and connects or disconnects capacitors from the network to maintain the target power factor (often 0.95 or higher). This is essential for facilities with fluctuating loads, such as those with motors that frequently start and stop.
When selecting capacitors, quality is paramount. Components like BKMJ capacitors or BSMJ capacitors from reputable manufacturers are designed for durability, self-healing properties, and low losses. The installation of capacitor cabinets should be performed by qualified professionals, ensuring proper short-circuit protection, switching devices, and safety measures are in place.
Power Factor Correction is not merely a technical buzzword; it is a proven, efficient, and cost-effective method for optimizing electrical systems. By understanding the principles behind it and leveraging the right technology—such as power factor capacitor banks, shunt capacitors, and automated APFC solutions—businesses can achieve significant operational savings, enhance their system's reliability, and contribute to a more sustainable energy footprint. As a specialized complete electrical equipment manufacturer, we understand the critical role that high-quality power system capacitors and well-engineered capacitor cabinets play in this process. Investing in a properly designed PFC system is an investment in efficiency, reliability, and long-term cost reduction.
