| Rated Voltage: | |
|---|---|
| Rated Capacity : | |
BSMJ
Zhegui Electric
0.4-1.2kV
50/60Hz
1 Piece
1-50kvar
Overview

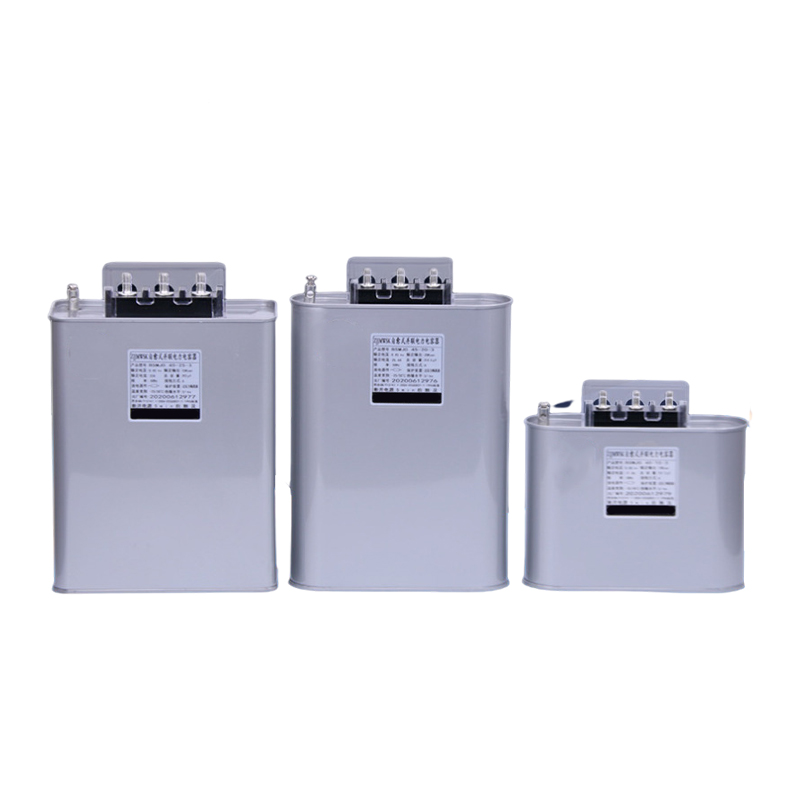

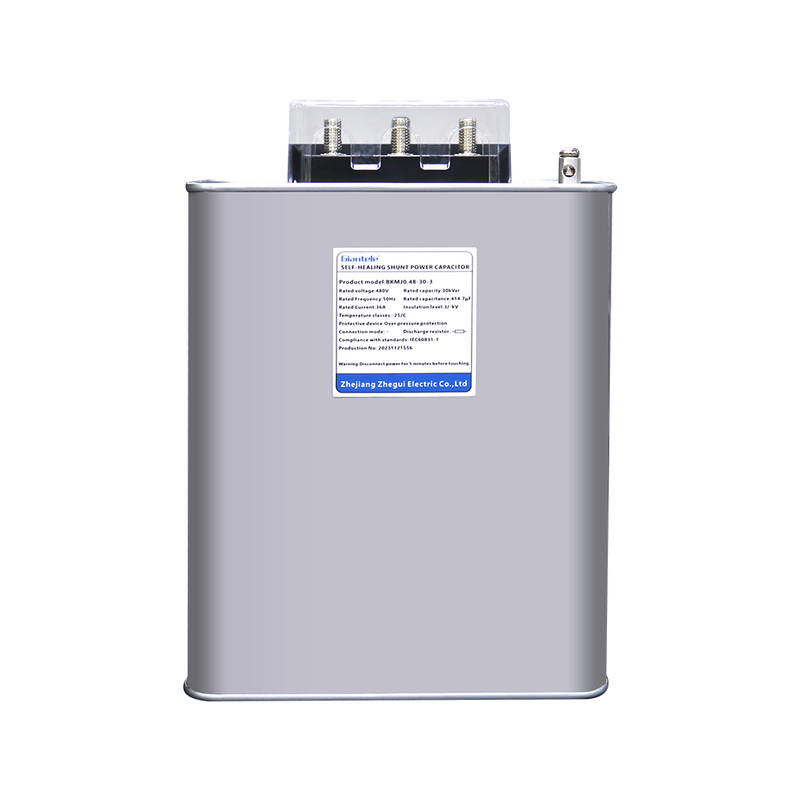

Self-healing low voltage shunt power capacitor was used in 50Hz and 6oHz power system it mainly improver power factor, reduce reactive power loss, improve voltage quality. Excavate transformer quantity and so on. It is the best saving power product which company strongly recommend and work. GB/T 12747-2004, IEC60831-1996
VS1-12(ZN63A) indoor high-voltage vacuum circuit breaker is designed as a front and back separate structure, which can be used as a fixed installation unit or as a separate handcart with a chassis car.
Working Conditons
1.Rated voltage: other special voltage please notice it .
2.Rated capacity: 0.4~0.69kV 1~60kvar, other voltage class's capacity ,please notice it .
3.Rated frequency: 50Hz or 60Hz.
4.Capacity tolerance: -5%~+10%.
5.Loss angle tanδ 0.1% when the temperature is 20℃.
6.Anti voltage : between two pole 2.15 time rated voltage is 10 s, between two pole 3kV please choose highest
value 10 s , there is noperpetuity puncture and flash over.
7.Max permit over voltage: 1.1 time rated voltage ,the high permit over voltage is not more than 8 hours within 24
hours . 1.15 time rated voltage ,it is not more than 30 minute within 24 hours ,1.2 time rated voltage it is not more
than 5 minute ,1.3 times rated voltage ,it would not more than 1 minute
8.Max permit over current: it is permit that the over current is not more than 1.3 time rated current ,interim over
current it should consider over voltage,capacity positive tolerance and harmonic effect .interim over current is not
more than 1.43 time rated current .
9.Connection: △ Y type ,Y type should draw out through neuter ,III three section ,single phase type ,and all kind of
connection way .other connectionway it will notice when you order it
10.Discharge property: the-left voltage will reduce from 2Un to below 50V within 3 minutes when the power cut off.
11.Standard: GB/T12747-2004, IEC60831: 212002.
Types of meaning
