How Do You Increase Power To A Capacitor

I. Core Methods to Increase Capacitor Power

Capacitor power output – defined as reactive power Q(kVAR) or energy storage – hinges on the fundamental equation:

Q=2πfCV2

Key Variables & Optimization Tactics:

  1. Voltage (V)

    • QV2→ 100V → 200V boosts Q by 300%

    • Constraint: Requires high voltage capacitor design (e.g., 690V rating)

  2. Capacitance (C)

    • QC→ Parallel connection: Ctotal=C1+C2+⋯

    • Constraint: Limited by physical size/dielectric properties

  3. Frequency (f)

    • Qf→ VFD-driven systems (e.g., 50Hz → 100Hz doubles Q)

    • Constraint: Grid stability risks at high frequencies

Real-World Limits:

  • Temperature: 10°C above rating → 50% lifespan reduction

  • Harmonics: Unfiltered 5th/7th harmonics → Capacitor overheating

  • Voltage Spikes: >1.3× rating causes irreversible degradation

power capacitor series

Power Capacitor Series

Three-Phase Cylindrical Power Capacitor

Three-Phase Cylindrical Power Capacitor

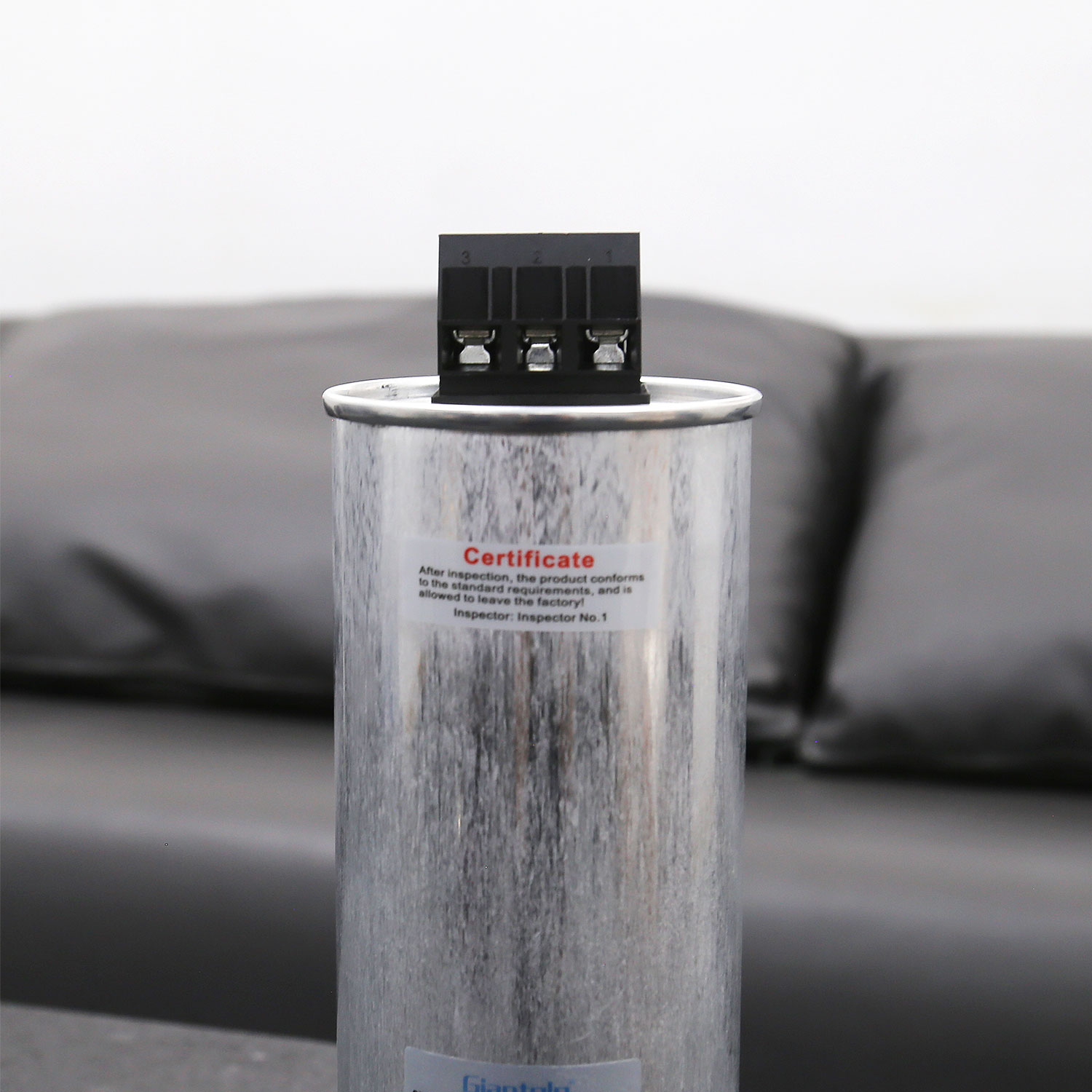

power factor correction capacitor

Power Factor Correction Capacitor


II. BSMJ/BKMJ Capacitors: Engineered for Maximum Power Delivery

1. Overcoming Voltage Constraints

  • 690V Series: 55% higher Vrating vs. standard 440V capacitors → 3.4× Qoutput

  • Dual Insulation:

    • Polypropylene film + resin filling → Withstands 2.5 kV impulse voltage

2. Space-Efficient Capacitance Scaling

Model
Capacitance (μF/kVAR)
Volume vs. Standard
BSMJ-25/440
180 (25kVAR)
30% smaller
BKMJ-50/690
220 (50kVAR)
40% smaller


  • Mechanism: Precision-wound metallized film in vacuum-sealed aluminum case

3. Thermal & Harmonic Resilience

  • Die-Cast Aluminum Shell:

    • IP55 rating → Operates in 85°C ambient temperature

    • Wax/resin filling → 10× lower moisture ingress (<0.1%)

  • Harmonic Mitigation:

    • Compatible with 7% reactors (detuned filter configuration)

    • Resonance formula: fres=2πLC1optimized for 189Hz (50Hz grid)

4. Flexible Compensation Modes
Mode
Configuration
Application Example
Group Comp.
Centralized bank
Factory main distribution
Individual
Per-phase deployment
CNC machines, elevators



III. Implementation Case: Steel Mill Retrofit

Problem: 0.72 PF, 40% THD, capacitor failures every 6 months

Solution:

  1. Voltage/Capacitance Upgrade:

    • 440V → 690V BKMJ capacitors (+55% V)

    • Parallel 30 kVAR units → Total C= 450 μF

  2. Sealing & Protection:

    • Epoxy-filled shells for vibration resistance

    • 7% reactors on each 50kVAR bankResults:

    • Qincreased by 210% (vs. legacy units)

    • PF improved to 0.95, capacitor lifespan > 5 years


IV. Technical Specifications (BSMJ/BKMJ Series)

Parameter
Standard Range
Advantage
Voltage Rating
400V-1200V
Higher V→ ↑ Q
Capacitance Range
5-100 kVAR
Parallel scalability
Case Sealing
Resin/wax under vacuum
Zero electrolyte leakage
Temperature
-25°C to +55°C
Stable Δ C/ C<2%
Compensation
Group/Individual
Adaptive PF correction



V. Conclusion

Increasing capacitor power (Q) requires optimizing V, C, and fwithin operational constraints. Our BSMJ/BKMJ capacitors enable maximal power delivery through:

  1. Die-cast aluminum housing → 55% higher voltage ratings

  2. Vacuum-sealed resin/wax filling → Capacitance stability in harsh conditions

  3. Dual compensation modes → Precision per-phase or bulk PF correctionWith 100,000-hour lifespans (IEC 60831 certified) and harmonic-resistant designs, these capacitors deliver 25-40% more kVAR/volume versus industry standards – achieving ROI in <18 months.
