Electrical control panels serve as the brain and nervous system of modern industrial automation, power distribution, and machine control systems. They house vital electrical and electronic components responsible for managing power flow, executing control logic, and safeguarding machinery against faults and failures. When these control panels malfunction, the consequences can range from minor disruptions to major production downtime, equipment damage, or even safety hazards. Therefore, understanding how to effectively troubleshoot common faults in electrical control panels is a critical skill for maintenance engineers, electricians, and plant operators.
This comprehensive guide will explore the most common issues found in electrical control panels, practical troubleshooting steps, essential tools, and strategies for preventing recurring faults. Whether you are a seasoned professional or a newcomer to industrial electrical maintenance, this article provides valuable insights to keep your systems running smoothly and safely.
Electrical control panels integrate an array of components such as circuit breakers, contactors, relays, programmable logic controllers (PLCs), motor starters, busbars, and low-voltage switchgear. These components work cohesively to control electrical power, execute automation tasks, monitor system status, and protect the equipment from overloads, short circuits, and other electrical faults.
Despite robust designs and stringent standards, control panels inevitably encounter faults due to aging, environmental stresses, wiring errors, or unexpected system conditions. Rapid and accurate troubleshooting can reduce costly downtime, prevent damage to machinery, ensure personnel safety, and maintain production quality.
By mastering common fault diagnosis methods and understanding the underlying causes, maintenance teams can troubleshoot efficiently, restore operations faster, and enhance the overall reliability of industrial processes.
Electrical control panels may experience a variety of issues that affect their performance and safety. Some of the most frequently encountered faults include:
Control panels require a stable and reliable power source to function correctly. Common power-related problems include:
No power or intermittent power: This can be caused by blown fuses, tripped circuit breakers, loose incoming power connections, or failure in upstream power sources.
Voltage fluctuations or surges: These can damage sensitive components like PLCs or drives, cause erratic operation, and lead to premature equipment failure.
Individual components inside the panel can wear out or malfunction:
Tripped or burnt circuit breakers: These often indicate overload conditions, short circuits, or ground faults.
Faulty contactors and relays: Mechanical wear, coil burnout, or welded contacts can prevent proper switching.
PLC or controller errors: These may arise from hardware faults, programming errors, or communication failures with sensors and actuators.
Issues related to wiring and connections often manifest as intermittent or persistent faults:
Loose or corroded terminals: Lead to increased resistance, voltage drops, or open circuits.
Short circuits: Can cause immediate trips or damage.
Incorrect wiring: Results in malfunction or unsafe operation.
Harsh operating environments can degrade panel performance:
Moisture ingress: Leads to corrosion and short circuits.
Dust and dirt accumulation: Causes insulation failures and overheating.
High temperatures: Accelerate component aging and cause insulation breakdown.
Improper design, installation, or maintenance also contributes to faults:
Incorrect programming or configuration: Faulty logic can cause unexpected machine behavior.
Poor maintenance practices: Neglecting cleaning, tightening connections, or component replacements leads to system failures.
Troubleshooting requires a methodical, safety-first approach combined with technical know-how. Follow these steps to systematically diagnose and fix control panel faults:
Always follow electrical safety protocols:
Disconnect power and follow lockout/tagout (LOTO) procedures before working inside the panel.
Wear appropriate personal protective equipment (PPE), including insulated gloves, safety glasses, and flame-resistant clothing.
Use insulated tools to avoid accidental shorts or shocks.
Start with a thorough visual check:
Look for burnt marks, melted insulation, or discoloration on components.
Inspect for loose or disconnected wires and terminals.
Check for signs of moisture, dust, or corrosion inside the enclosure.
Verify that all components are securely mounted and free of physical damage.
Use a digital multimeter or voltmeter to measure voltage at the panel’s input terminals:
Ensure voltage levels meet specification (typically 230V/400V AC for industrial panels).
Check that main circuit breakers and fuses are intact and not tripped.
Confirm that emergency stop buttons and safety interlocks are not engaged.
Systematically test components that control power flow and machine operation:
Measure coil resistance on contactors and relays to ensure they are within specified ranges.
Check overload relays to see if they have tripped and reset if necessary.
Test motor starters and soft starters for proper function.
Inspect PLC modules and input/output devices for communication and power faults.
Loose connections cause many intermittent faults:
Tighten terminal screws and connectors.
Use an insulation resistance tester (megohmmeter) to test wiring insulation health.
Check for any signs of cable damage or pinched wires.
Verify wiring against panel schematics to ensure correctness.
Since PLCs manage complex automation sequences, they can be a source of faults:
Connect to the PLC programming interface and check for error codes or alarms.
Review the status of inputs, outputs, and internal timers/counters.
Verify recent changes to the program that might have introduced logic errors.
Use diagnostic tools to simulate inputs and monitor outputs.
Most modern control panels include visual or audible alarms:
Note any warning lights, buzzer alerts, or fault codes on the panel display.
Use these indicators as clues to pinpoint the faulty subsystem.
Check the panel’s Human Machine Interface (HMI) screens for detailed diagnostics.
Using the right tools improves troubleshooting efficiency and accuracy:
Digital Multimeter: Measures voltage, current, resistance, and continuity for basic electrical tests.
Clamp Meter: Enables current measurement without disconnecting wires.
Insulation Resistance Tester: Detects insulation degradation to prevent shorts.
Thermal Imaging Camera: Identifies hotspots indicating overload or poor connections.
PLC Programming Software and Cables: Necessary for reading diagnostics and uploading programs.
Basic Hand Tools: Screwdrivers, pliers, wire strippers, and crimpers for physical repairs.
Personal Protective Equipment (PPE): Including insulated gloves, safety glasses, and flame-retardant clothing.
Understanding typical failure modes helps in fast fault isolation:
Check main power supply and upstream circuit breakers.
Test emergency stop and safety interlocks.
Inspect control transformer and power supply modules.
Verify wiring continuity from power source to panel components.
Verify motor starter coil operation and contactor switching.
Check overload relay status and reset if tripped.
Inspect motor wiring and connections for damage.
Confirm PLC or control signal is activating the starter.
Identify overloaded circuits by measuring current.
Inspect wiring for short circuits or insulation faults.
Verify that circuit breakers are properly rated for the load.
Check for ground faults using insulation testers.
Connect to PLC and review error logs.
Verify sensor inputs and actuator outputs.
Test program logic and timers for malfunctions.
Check communication cables and network connections.
Prevention is always better than cure. Establishing a routine maintenance plan can drastically reduce faults:
Regularly inspect and clean control panels to prevent dust and moisture buildup.
Tighten terminal connections and inspect wiring insulation.
Test protective devices like circuit breakers and overload relays periodically.
Update PLC software and maintain backup programs.
Train personnel on safe operation and fault reporting.
Maintain environmental conditions such as temperature and humidity control.
Electrical control panels are indispensable in managing industrial operations, and troubleshooting is a vital skill to ensure their reliability and safety. By recognizing common faults, following a methodical troubleshooting approach, and leveraging proper tools, maintenance teams can swiftly identify issues, minimize downtime, and protect equipment.

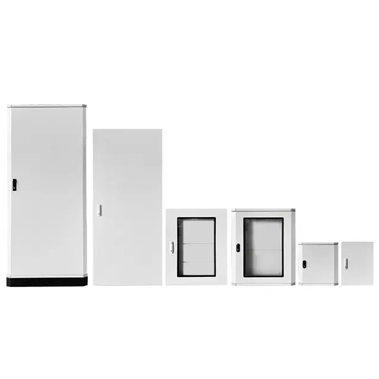

Choosing high-quality control panels from trusted manufacturers such as Zhejiang Zhegui Electric Co., Ltd. — known for their robust wall-mounted and floor-standing industrial control panels — further enhances ease of troubleshooting and long-term system performance.
Invest in skilled troubleshooting and quality equipment to maximize your operational efficiency and safety.
